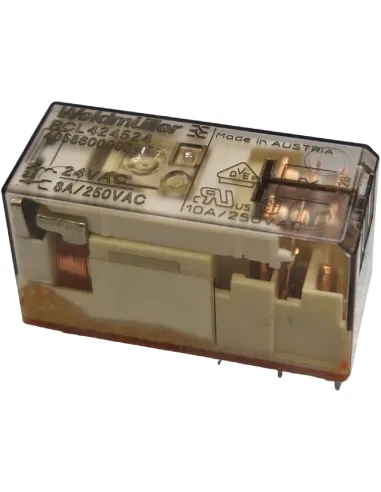

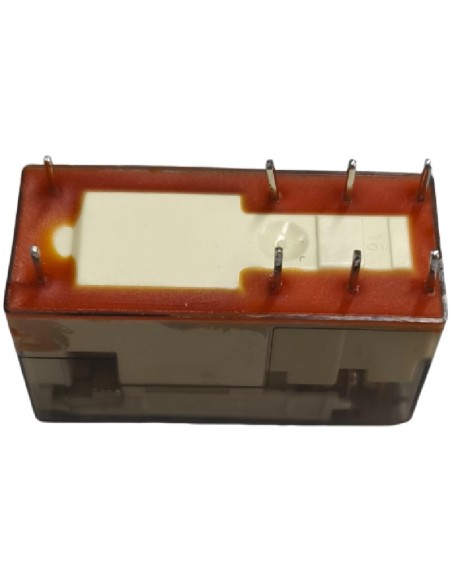

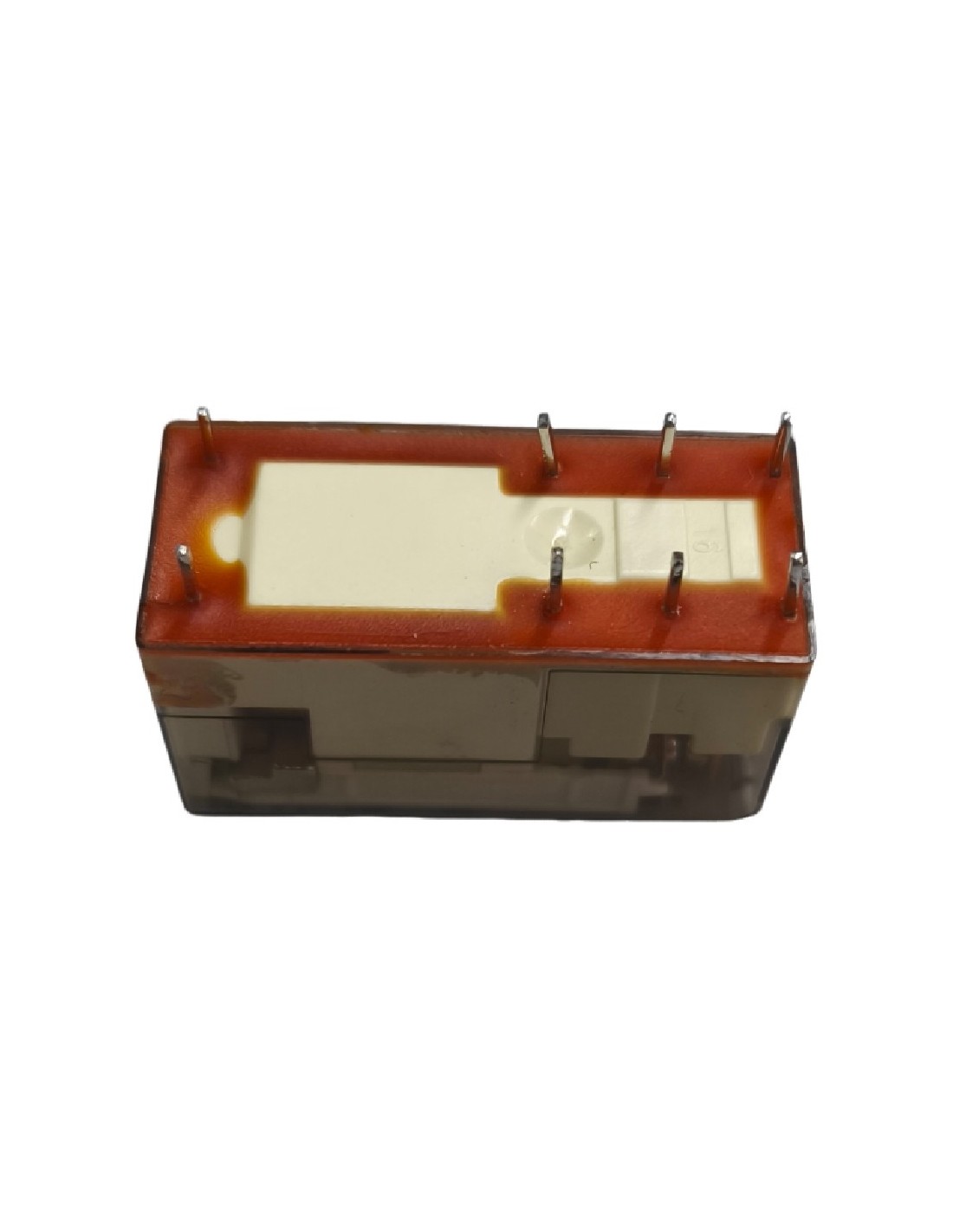

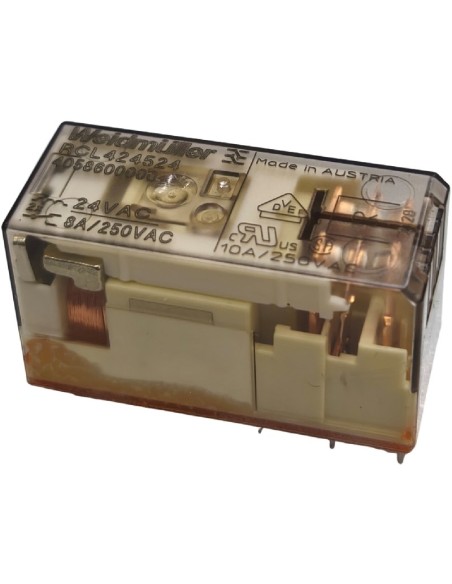

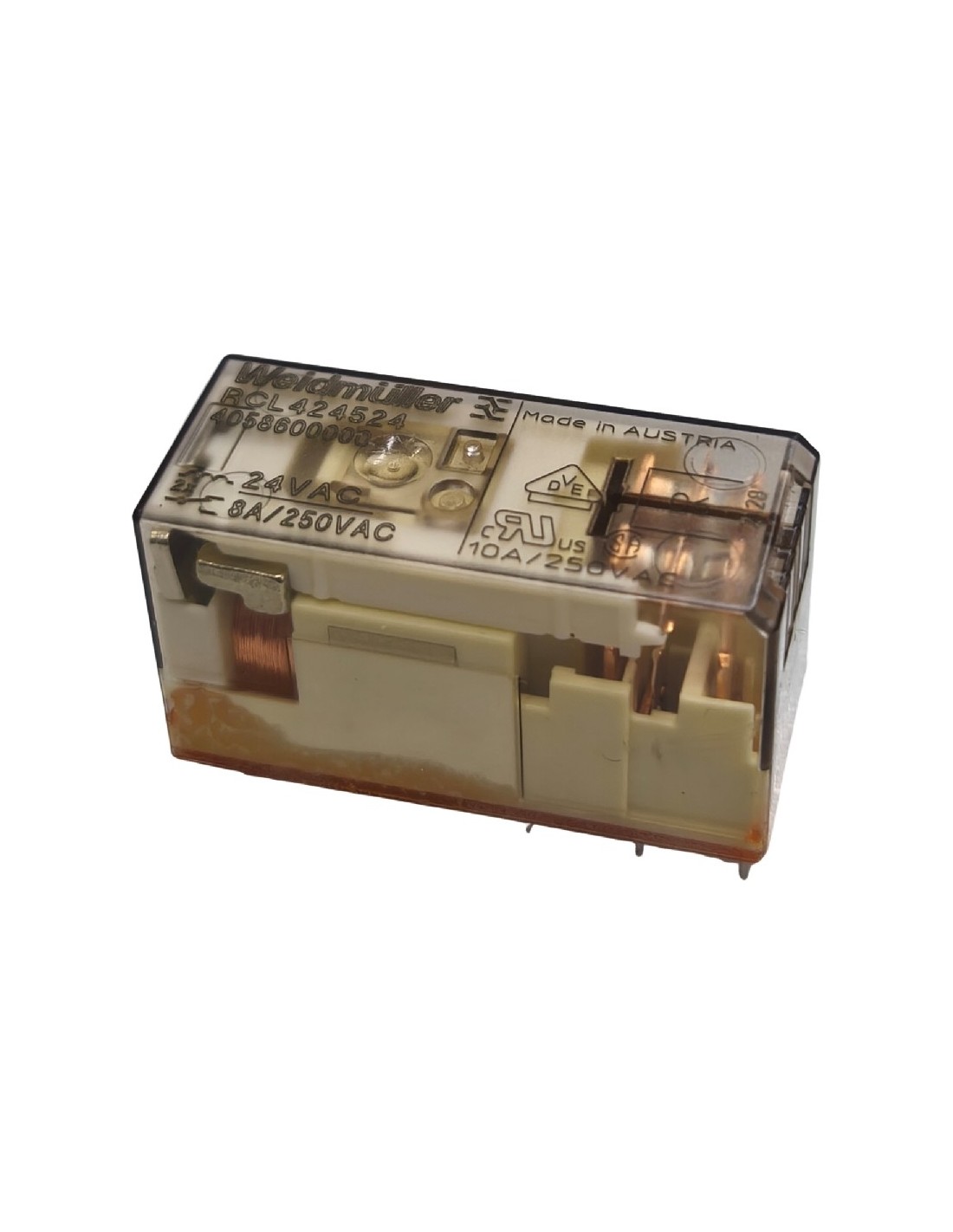

PCB Relay Weidmüller RCL424524 24 V AC

PCB Relay Weidmüller RCL424524 24 V AC

• Manufacturer: Weidmüller

• Model: RCL424524

• Rated control voltage: 24 V AC

• Frequency: 50 or 60 Hz

• Coil type: Standard

• Contact configuration: 2 changeover contacts type DPDT or 2 CO

• Rated switching voltage: 250 V AC

• Continuous current: 8 A

• Current according to UL and CSA: 10 A

• Contact material: Silver Nickel 90 10

• Mechanical life: Approximately 30 million switching cycles

• Mounting type: For socket or direct PCB soldering

• Number of pins: 8 pins

• Length: 29 mm

• Width: 12.7 mm

• Height: 15.7 mm

• Pin layout: Common at center with NC contact without power and NO contact with power
