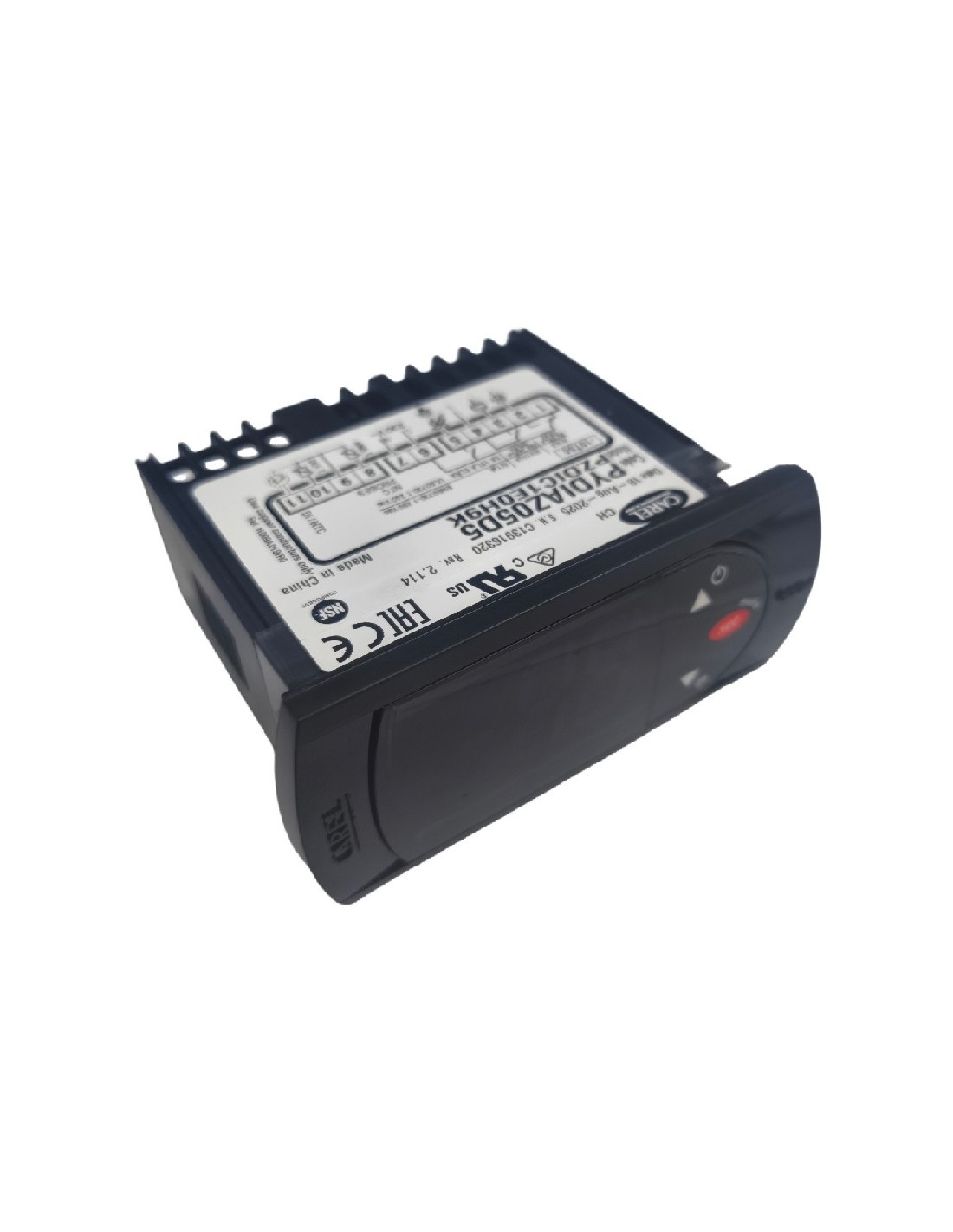

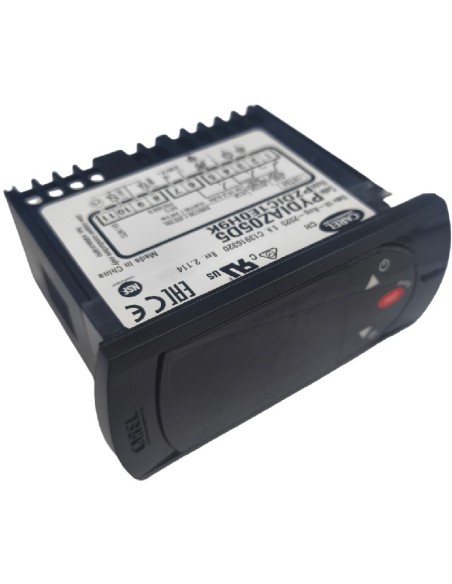

• Brand and range: CAREL easy freeze

• Code: PYDIAZ05D5

• Model: PZDIC1E0H9K

• Application: Ventilated low temperature refrigeration units with freezing

• Supply voltage: 230 V AC at 50/60 Hz

• Working temperature: -10 °C to 50 °C, marked as -10T50

• Front protection rating: IP65

• Probe type: NTC

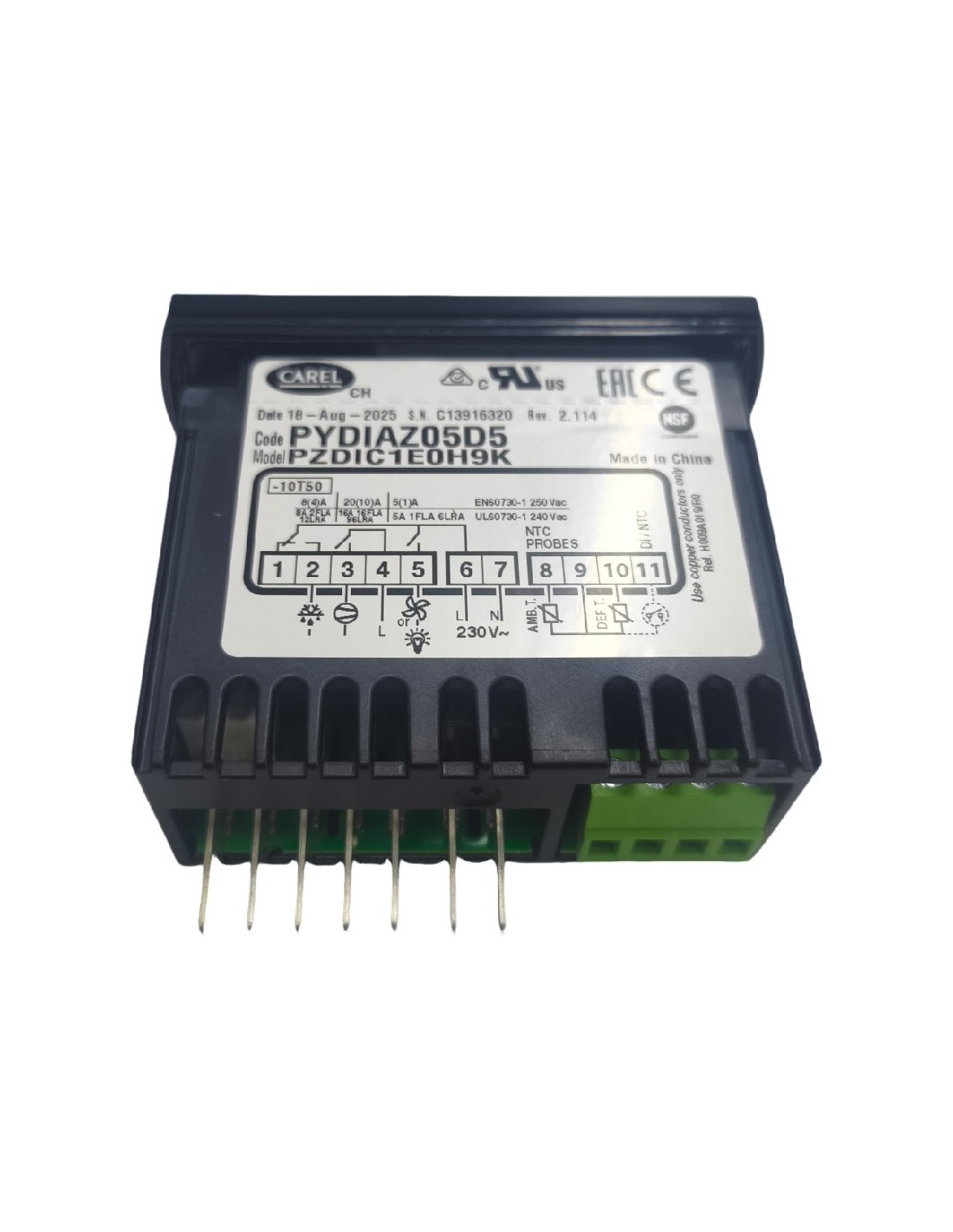

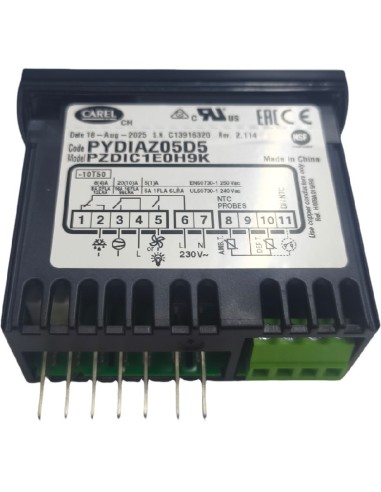

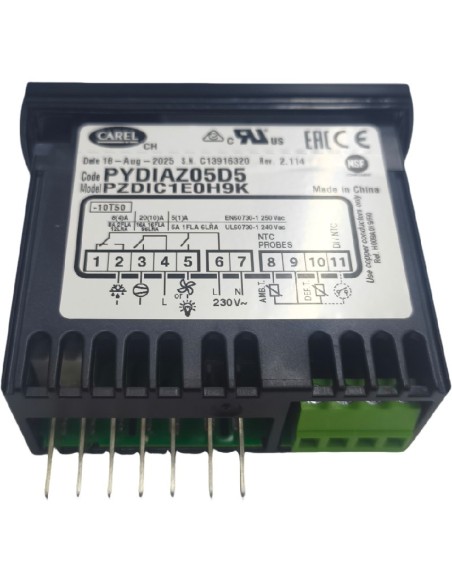

• Power connection: Terminal 6 for line or phase and terminal 7 for neutral

• Defrost relay terminals 1 and 2: Capacity of 8 A at 250 V AC to control heaters or hot gas valve

• Compressor relay terminals 3 and 4: High capacity of 20 A at 250 V AC for direct compressor start

• Fan or light relay terminals 5 and 6: Capacity of 5 A at 250 V AC where terminal 6 works internally as the shared phase common

• Ambient probe input terminals 8 and 9: Connection for ambient probe

• Defrost probe input terminals 9 and 10: Connection for defrost probe

• Digital input or probe 3 terminals 10 and 11: Digital input for door switch or external alarm, or configuration for a third probe

• Set point modification: Press the SET button for more than 1 second until the value flashes, adjust with up or down arrows and press SET again to confirm

• Manual defrost activation: Press and hold the up button with the defrost icon for more than 3 consecutive seconds

• Advanced parameters access: Press SET for more than 3 seconds until PS shows, press SET to flash at 0, enter default password 22 with the arrows and press SET to confirm
