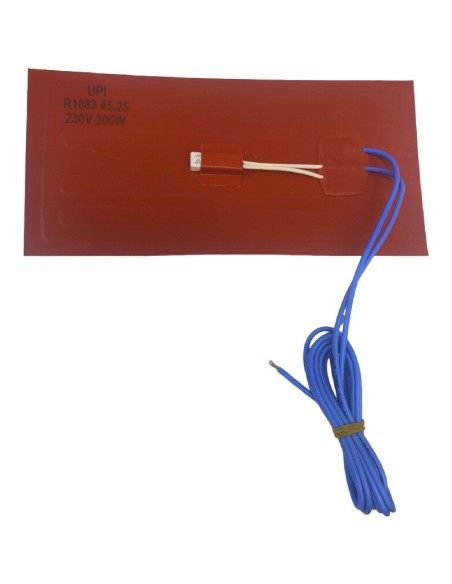

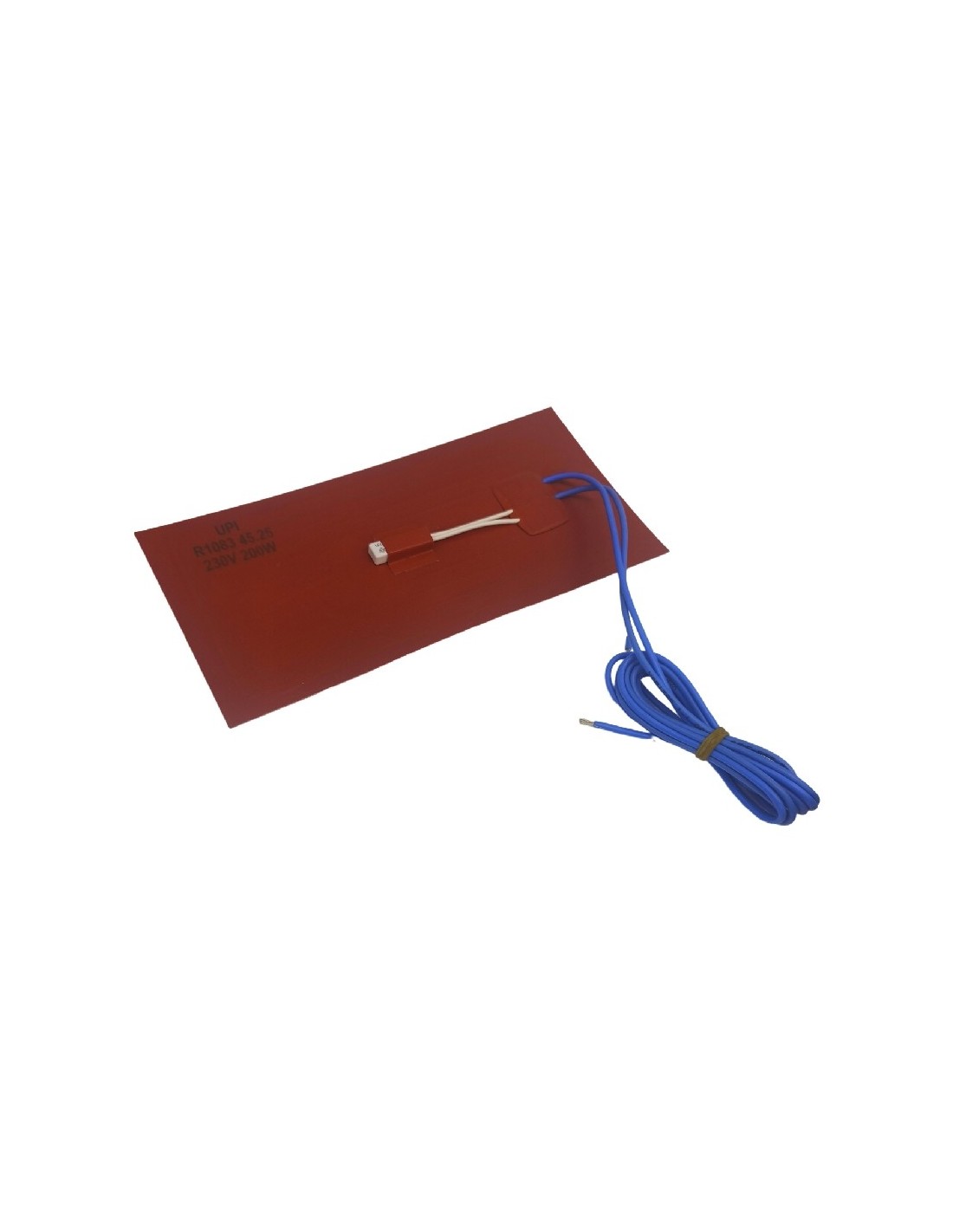

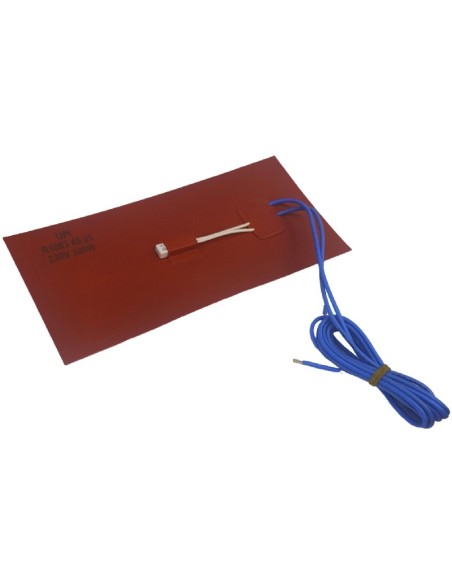

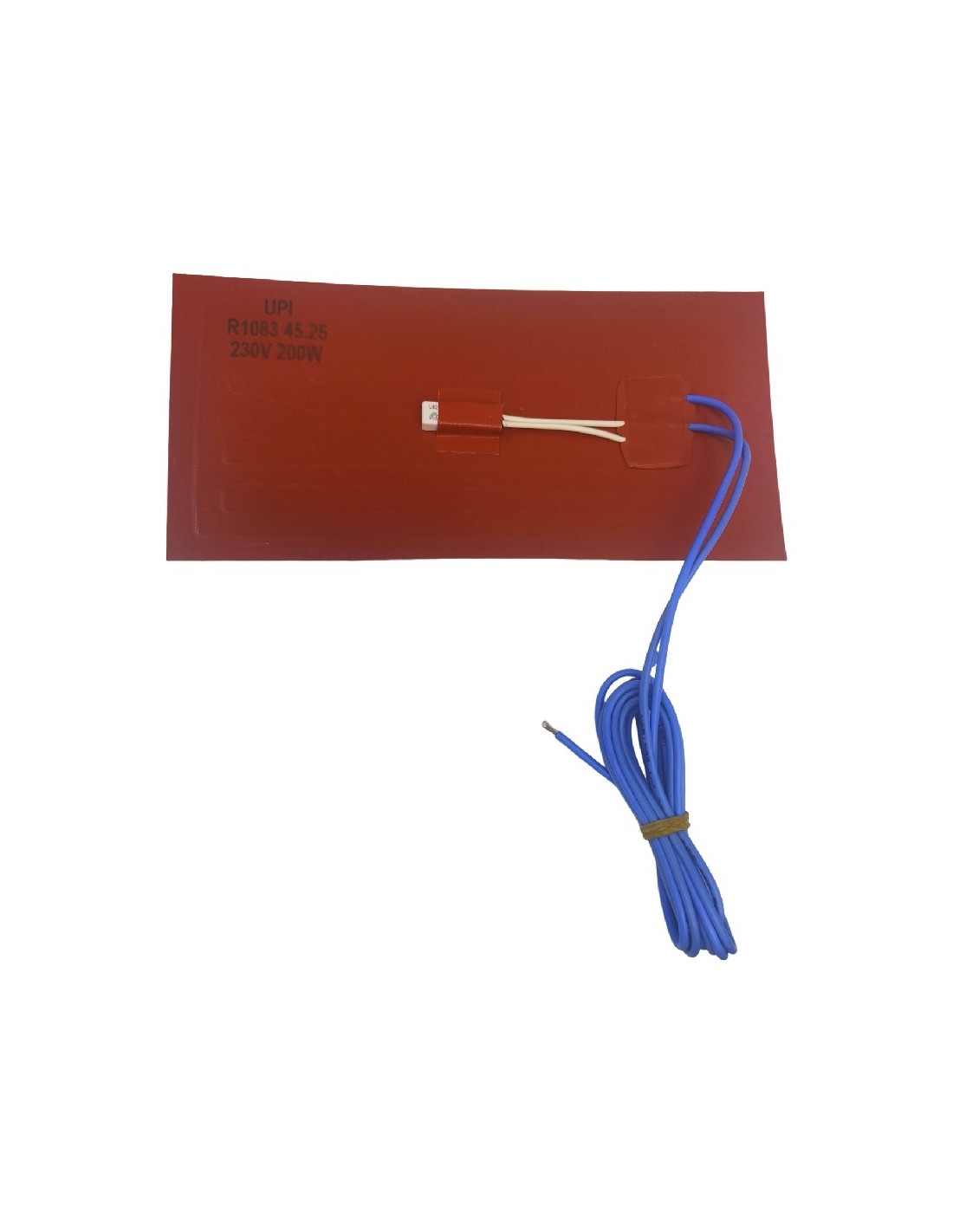

Flat silicone heating element 200W 230VAC 100x200mm R1083

Flat silicone heating element 200W 230VAC 100x200mm R1083

• Component type: Flat silicone heating element (Adhesive thermal mat)

• Reference / Code: R1083

• Power: 200 W

• Voltage: 230 VAC

• Dimensions: 100 x 200 mm (A: 100 mm | B: 200 mm)

• Cable specifications: 2x1 mm² cross-section | Length: 750 mm

• Integrated thermal protector: Surface-mounted encapsulated safety thermostat UCHIYA UI2 (Cut-off temperature: 140 °C | Certifications: VDE, cURus (UL))

• Installation instructions: Apply to a firm, completely flat, clean surface free of water, dust, oil, or grease. Press uniformly using a spatula for 100% adhesion. Connect to power for a maximum of 60 seconds for heat activation, then disconnect; smooth again with the spatula while hot to eliminate air bubbles or unbonded areas.

• Safety and protection: Do not tamper with or disable the thermostat under any circumstances. Strictly avoid contact of water, oil, or any other liquids with the heating mat or its cables.

• Application: Universal / Commercial catering and industrial machinery
