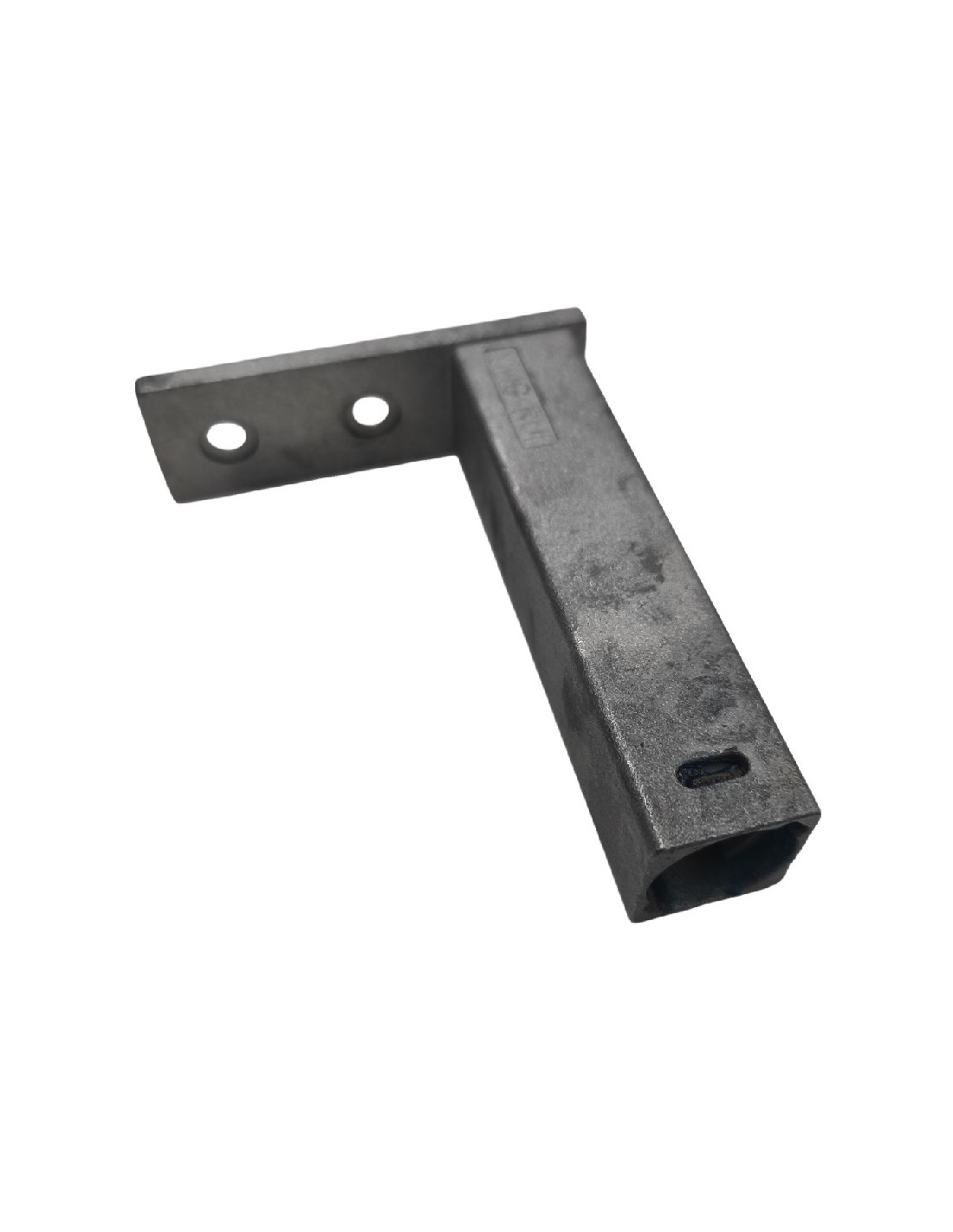

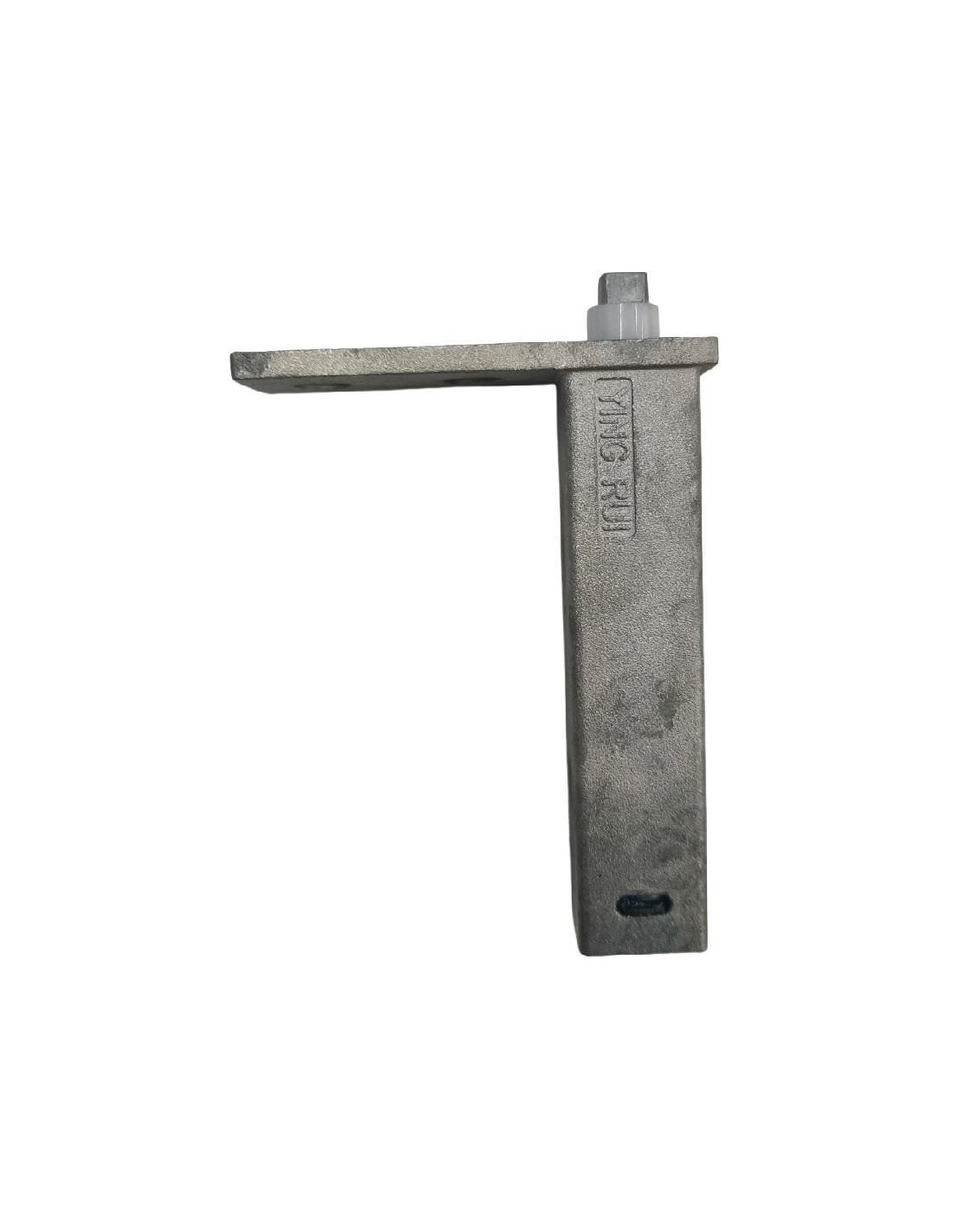

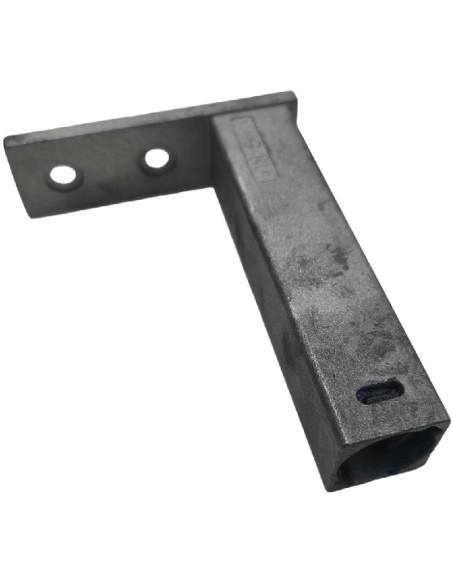

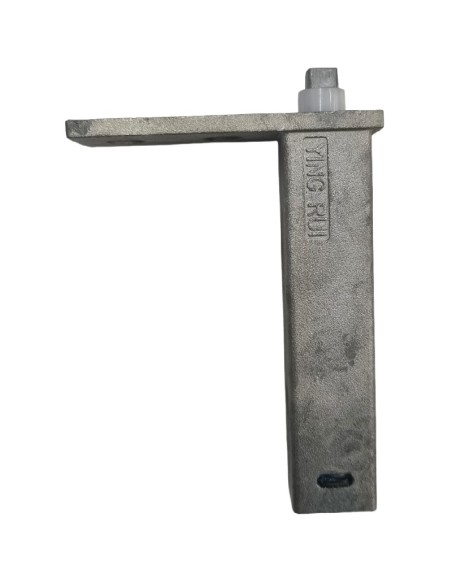

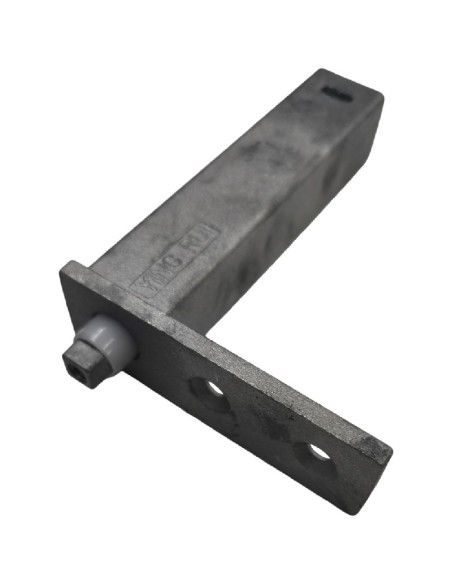

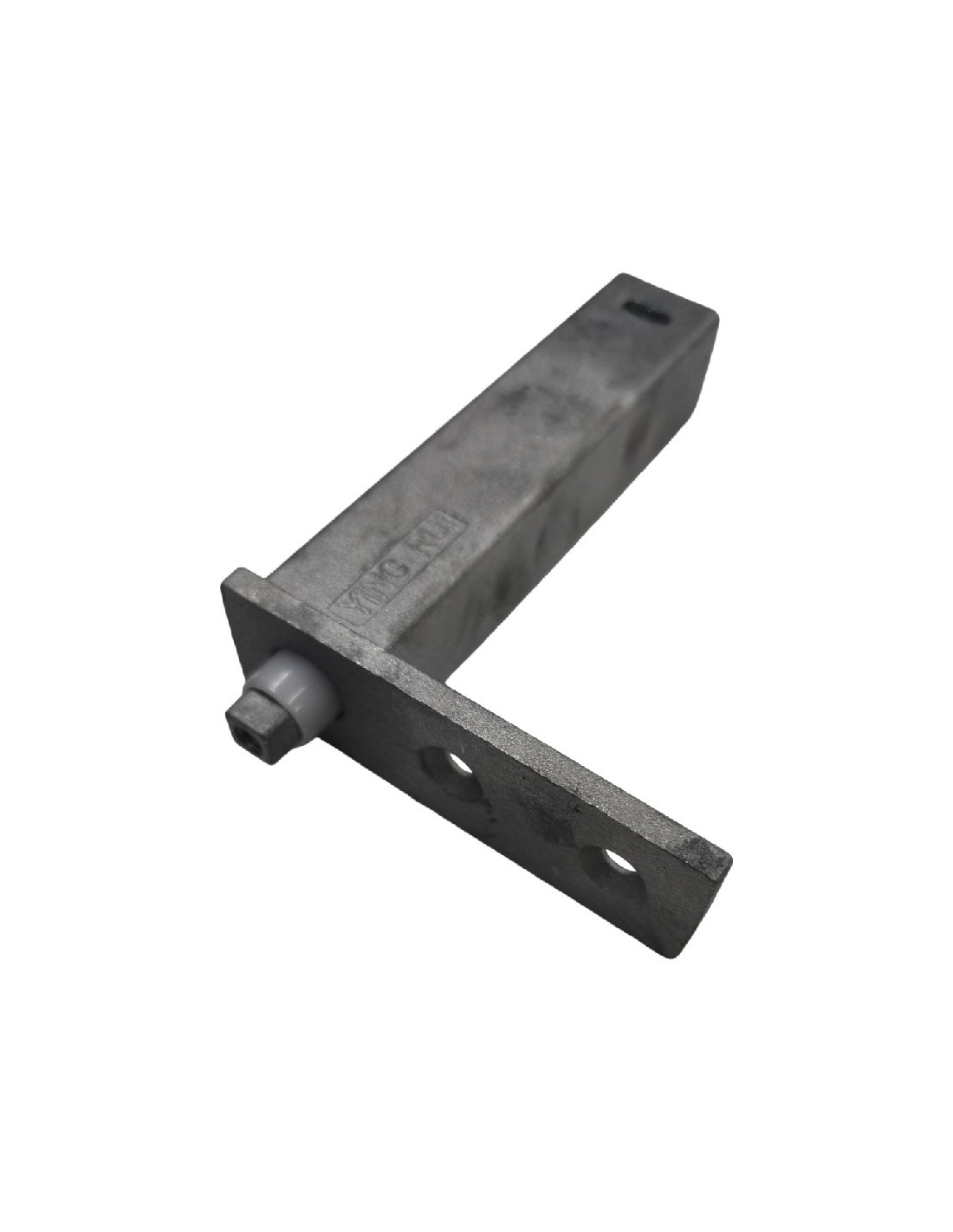

Ying Rui hinge for GN models GN650TN.14

Ying Rui hinge for GN models GN650TN.14

• Component type: Refrigerated cabinet door hinge

• Manufacturer: Ying Rui

• Reference: GN650TN.14

• Dimensions: 100 x 76 mm

• Axle dimensions: 7.5 x 7.5 mm with fiber bushing and M5 internal thread

• Body dimensions: 22 x 22 mm

• Compatibility and exploded view position:

  • Model GN650TN exploded view number 13

  • Model GN1410TN exploded view number 21

  • Model GN1410BT exploded view number 22

  • Model SNACK400TNV exploded view number 8

  • Model SNACK400BTV exploded view number 8

  • Model SNACK800TNV exploded view number 8

  • Model SNACK800BTV exploded view number 8

  • Model SH3000800 exploded view number 51

• Application: Commercial refrigerators, refrigerated counters, and commercial cooling equipment
