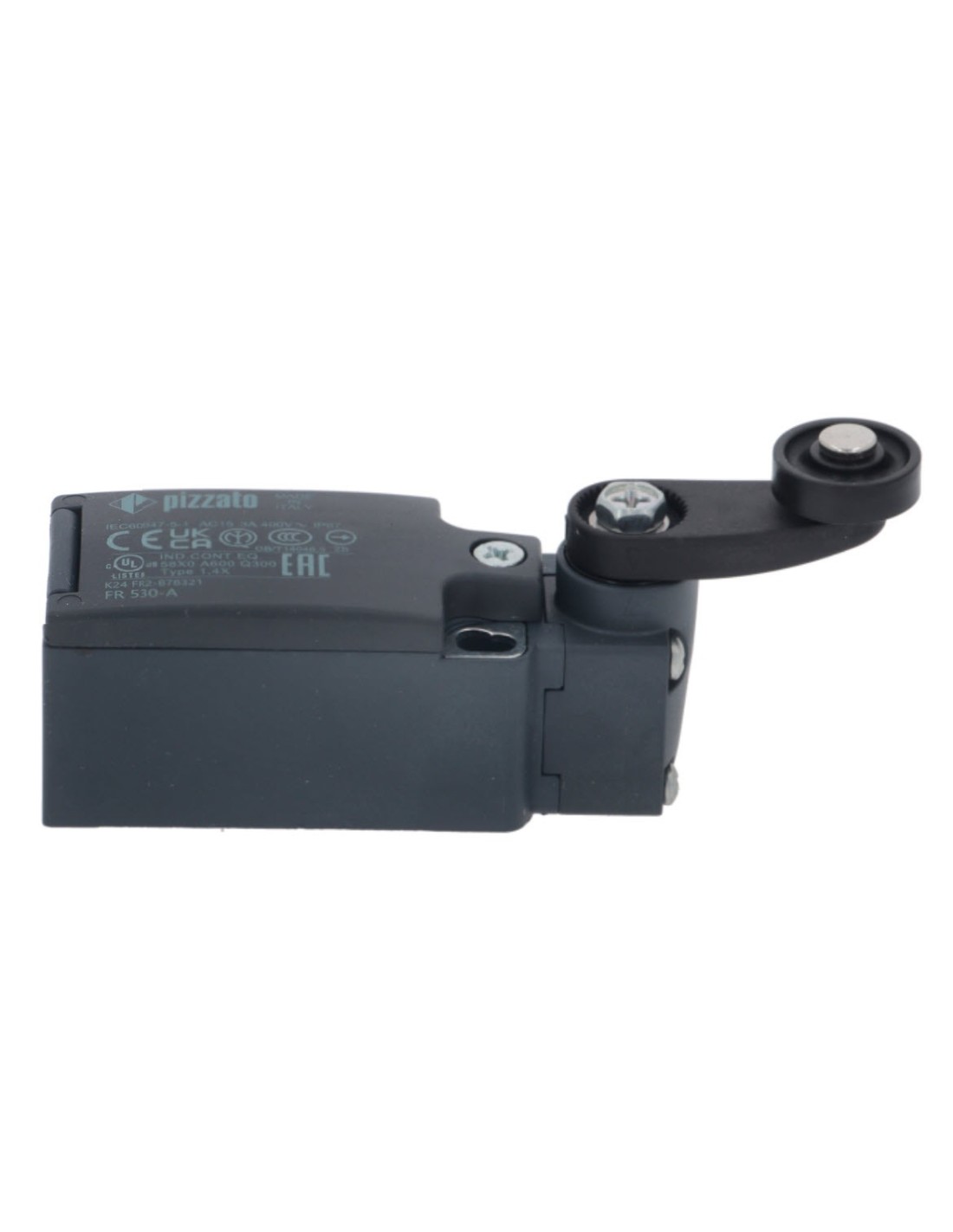

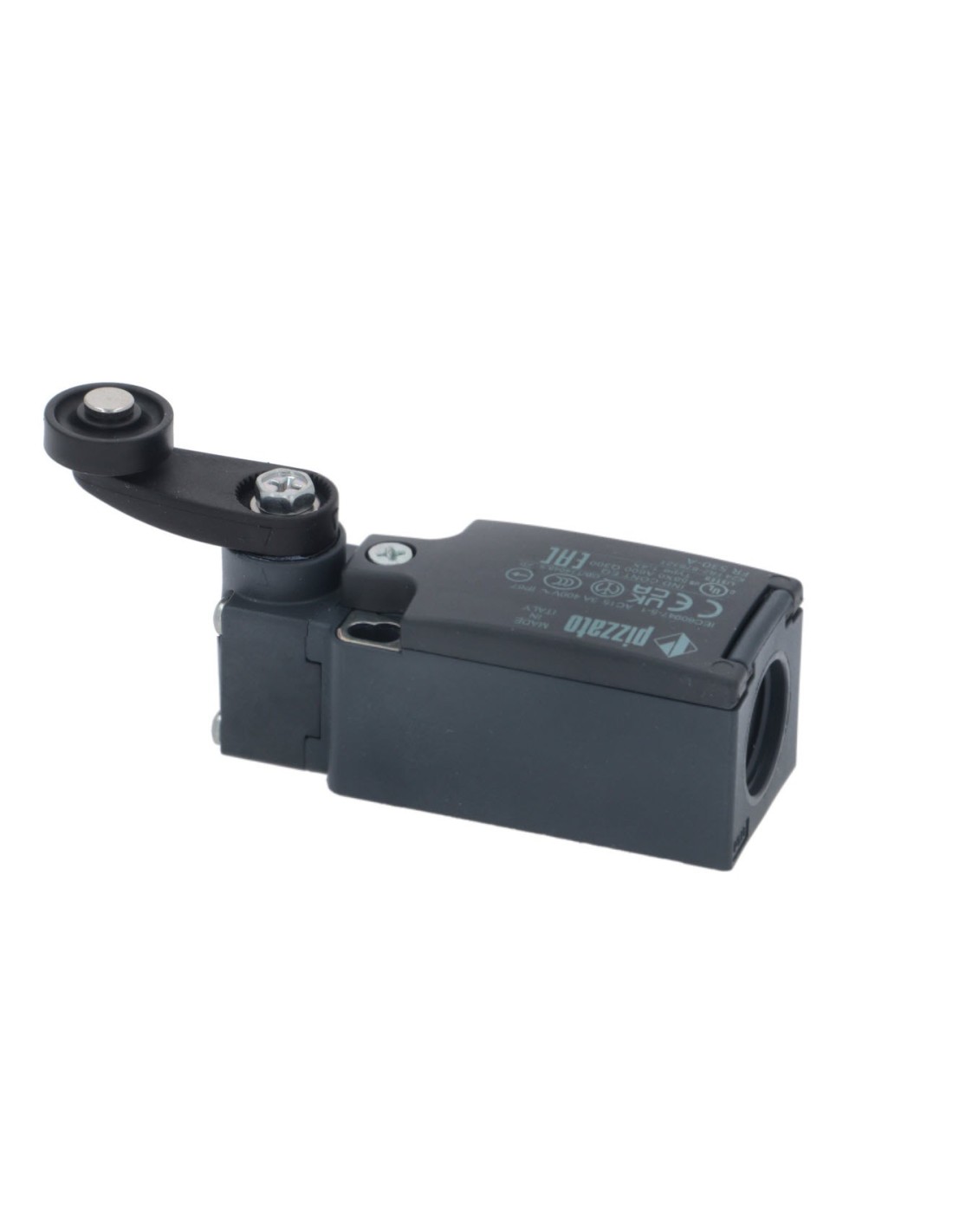

Limit Switch Microswitch 1NO 1NC 3A 130689 345144 Pizzato FR 530 A

Limit Switch Microswitch 1NO 1NC 3A 130689 345144 Pizzato FR 530 A

• Version: Pizzato FR 530 A

• Function: 1NC and 1NO

• Voltage: 400 V

• Switching power: 3 A

• Clamping distance: 22 mm

• Dimensions: Height 31 mm Length 92 mm Width 31 mm

• Protection rating: IP67

• Actuation force: 360 g

• Threaded connection: PG 13.5

• Mounting: Screw mounting

• Weight: 0.090 kg

• Technical specifications: Nominal Current AC 1 of 10 A thermal limit Ith for FR series Nominal Current AC 15 of 3 A at 400 V Nominal Current DC 13 of 0.55 A at 125 V Auxiliary contact 1NO and 1NC Snap action contact type

• Compatible references: Alpeninox 046884 Ascaso LASA20 Electrolux 046884 053241 054423 054424 464963 470942 LASA20 GEV 345144 Hendi 3240155 Horecaparts 3240155 Lasa 3168200 345144 Mareno 1037307700 1871500 345144 815500 MA1871500 Mastro 1871500 MA1871500 Zanussi 046884 345144
