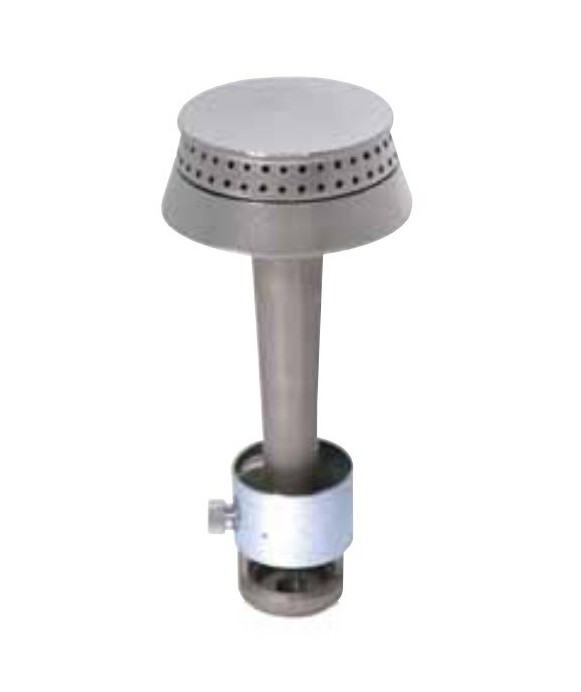

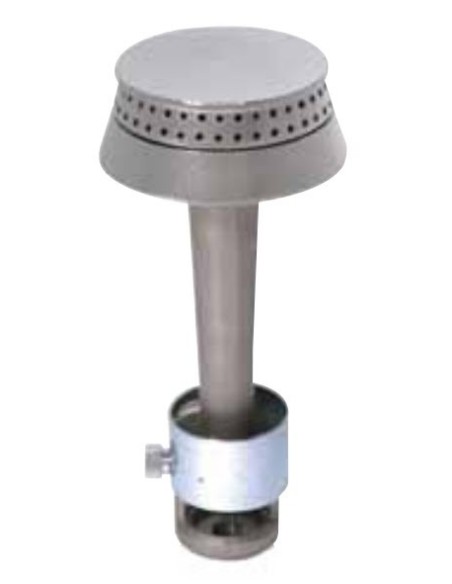

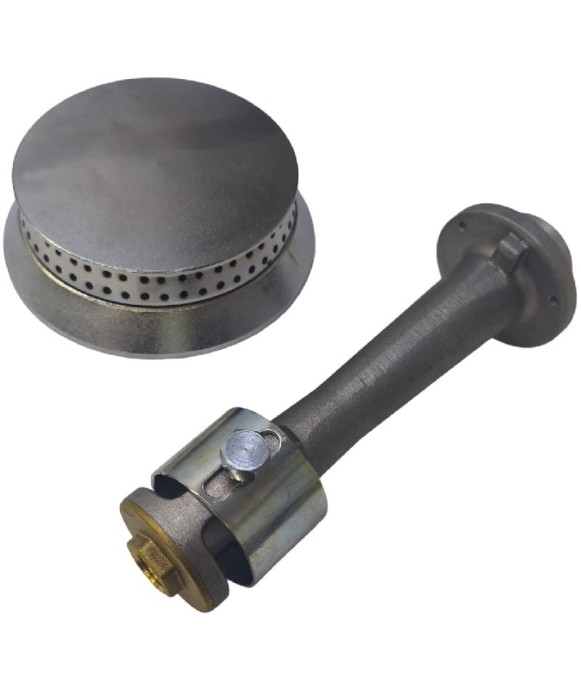

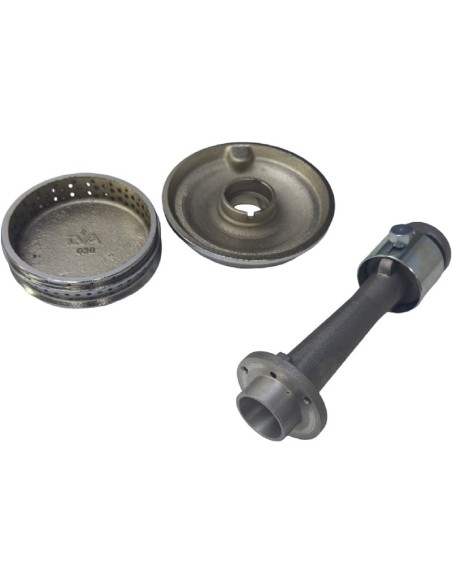

Vertical gas burner 8.5 - 9.0 kW

Vertical gas burner 8.5 - 9.0 kW

• Part number / Reference: 210.031.490

• Nominal power: 8.5 – 9.0 kW

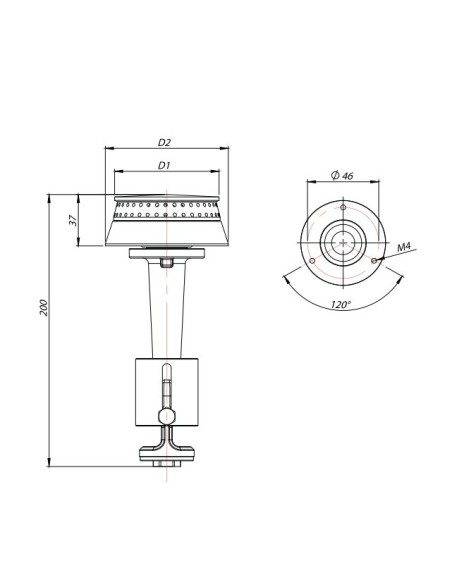

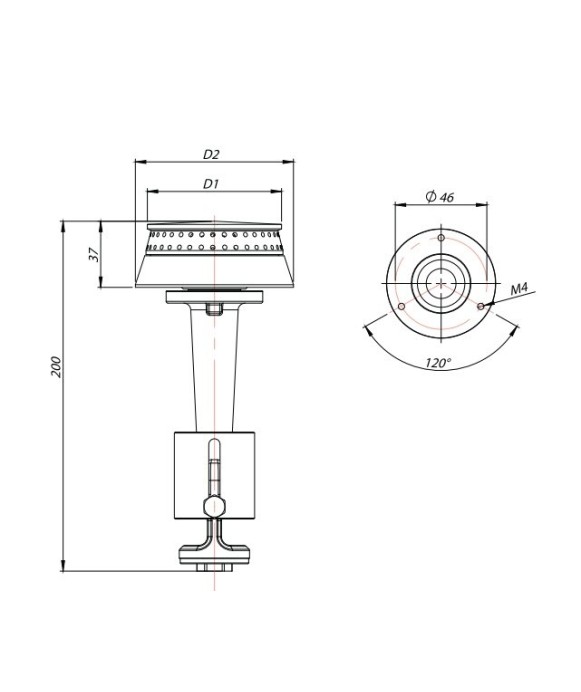

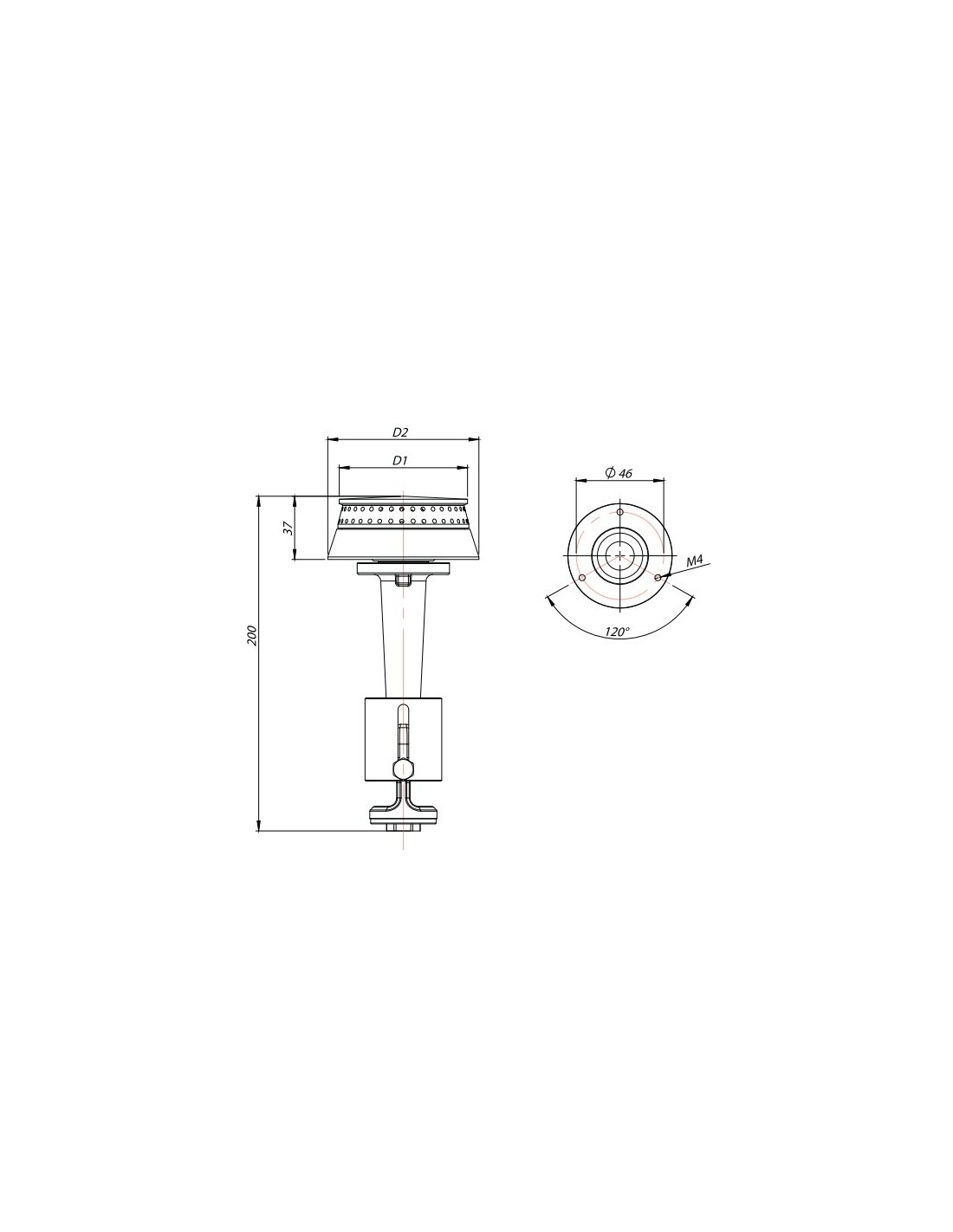

• Dimensions: Flame top diameter Ø 101 mm | Outer crown diameter Ø 120 mm | Head height 37 mm | Total height 200 mm

• Mounting / Bottom flange: Ø 46 mm clamping diameter with 3 x M4 threaded holes at 120°

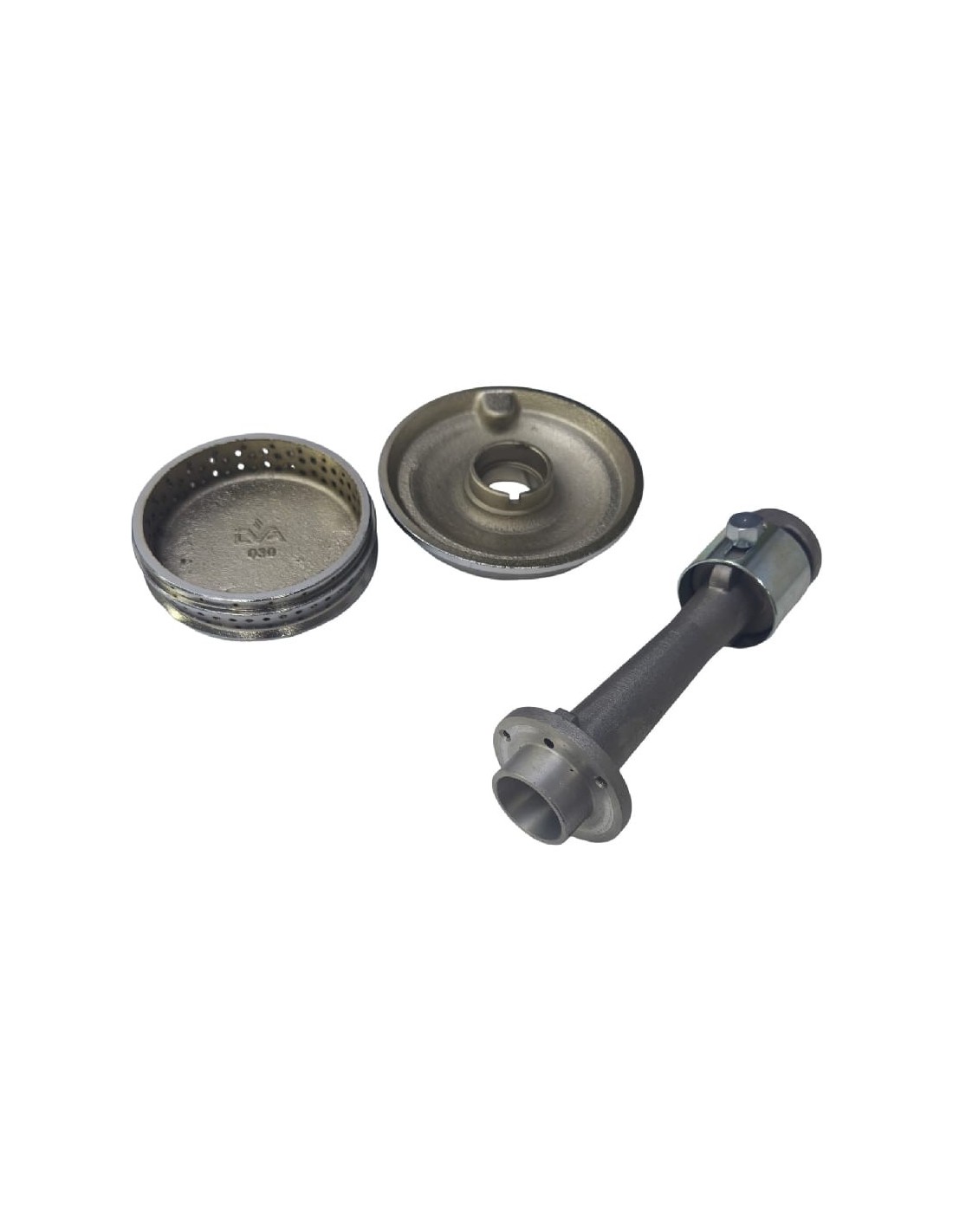

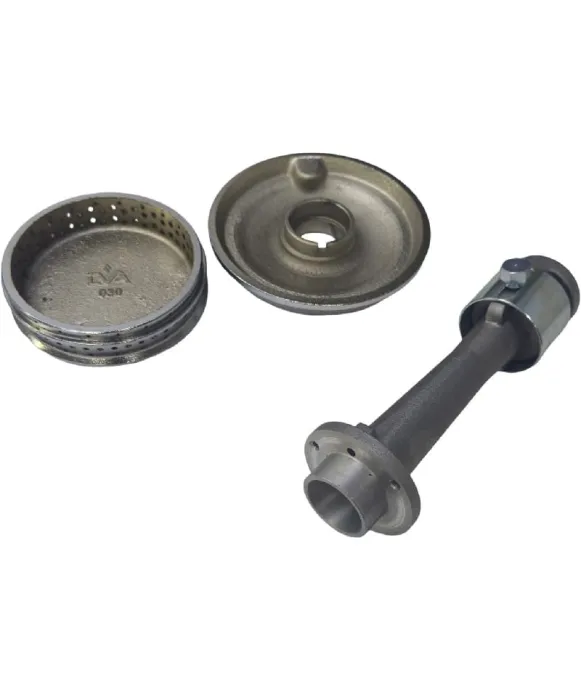

• Head design: Burner crown with double perimeter row of ports for stable and uniform flame | Satin sandblasted nickel-plated top cap

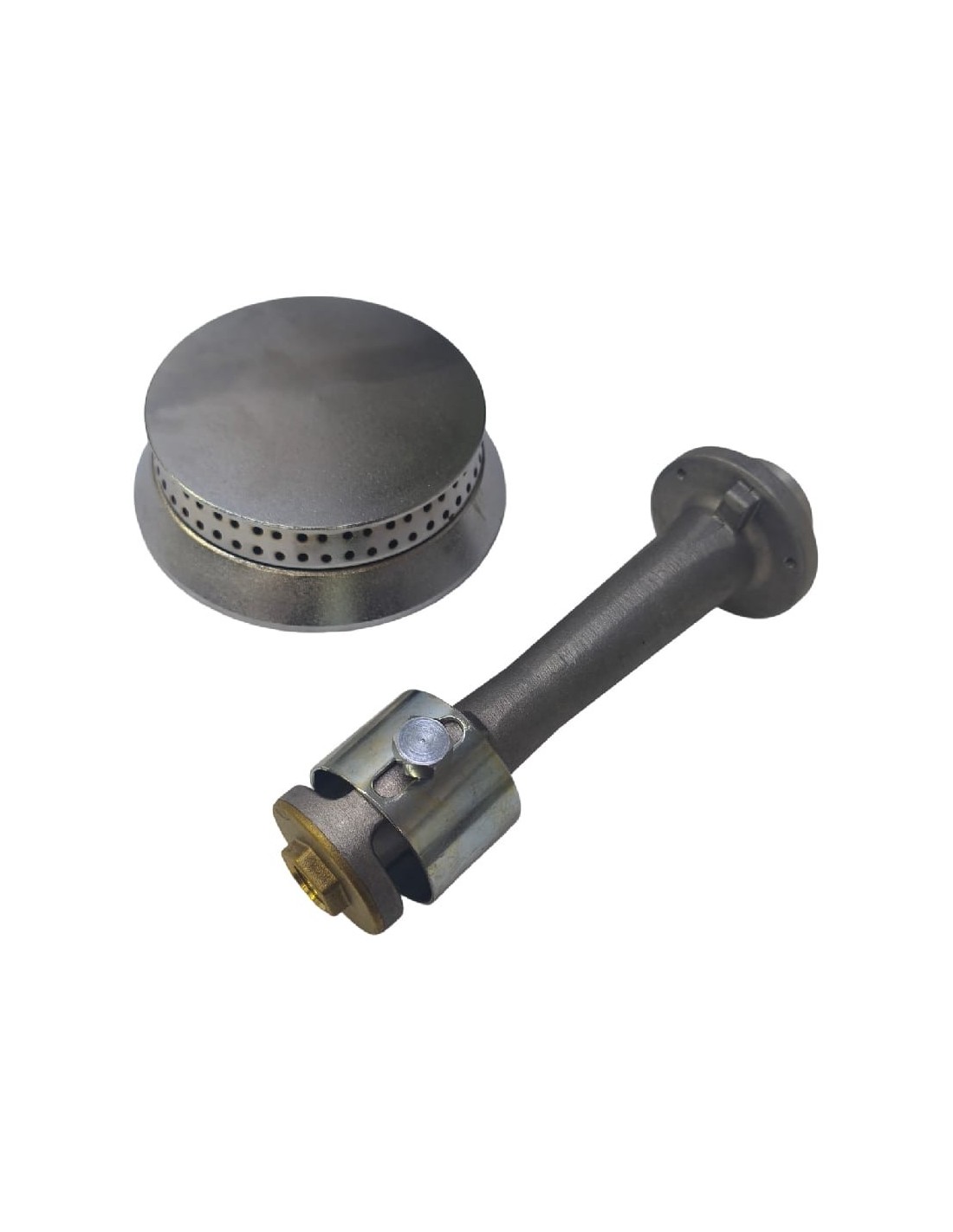

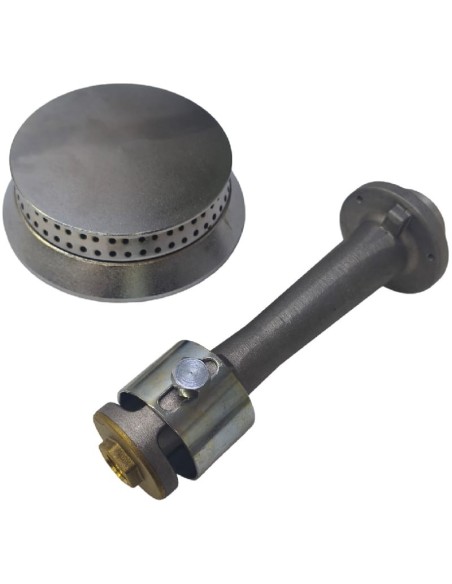

• Regulation and construction: Cast metal vertical Venturi tube with sliding cylindrical sleeve and locking screw for primary air adjustment | Base bracket for gas injector/jet

• Compatible fuel: LPG / Natural Gas (depending on fitted injector)

• Application: Commercial cooking ranges, open top burners, and catering equipment

• Component type: Vertical gas burner - high-power burner assembly with Venturi tube
