Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7
Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7
Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7
Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7
Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7
Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7

Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7

RCH0008993

Available on request
€39.80
Tax excluded
Variants
Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7
Contactor 230V AC3 9A main contacts 3NO auxiliary NO LC1K0910M7

Description

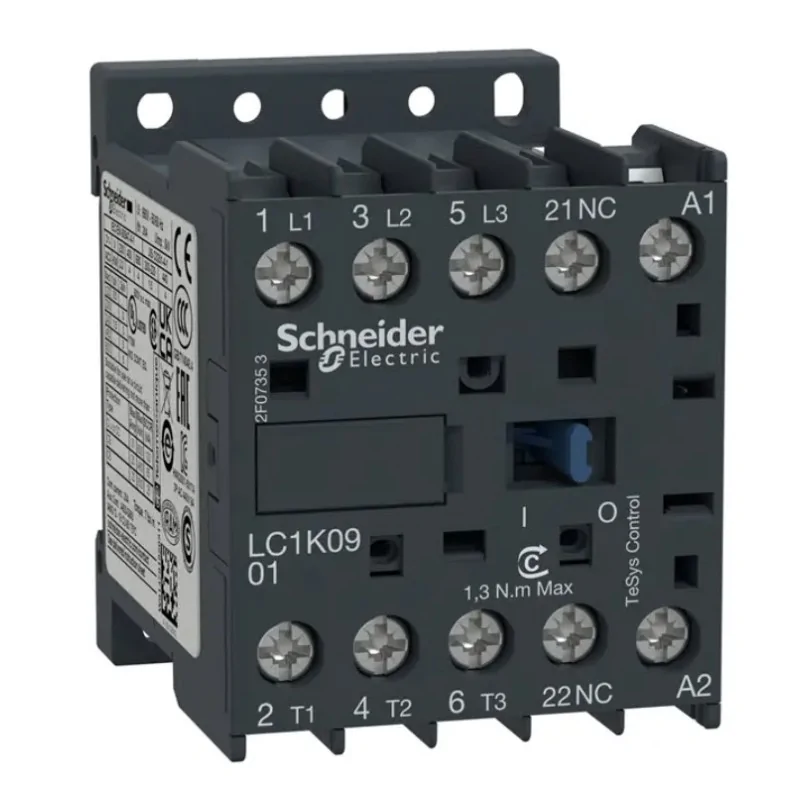

Contactor 230V AC3 9A main contacts 3NO auxiliary NC LC1K0901M7

  • Coil voltage: 220-230 V AC

  • Main poles: 3 NO

  • Auxiliary contact: 1 NC

  • Electrical ratings: 690 V AC (rated) / 20 A (AC1) / 9 A (AC3) / 4 kW

  • Dimensions: 58 mm (length) x 45 mm (width) x 57 mm (depth)

  • Mounting / Terminals: DIN rail mount / Screw terminals

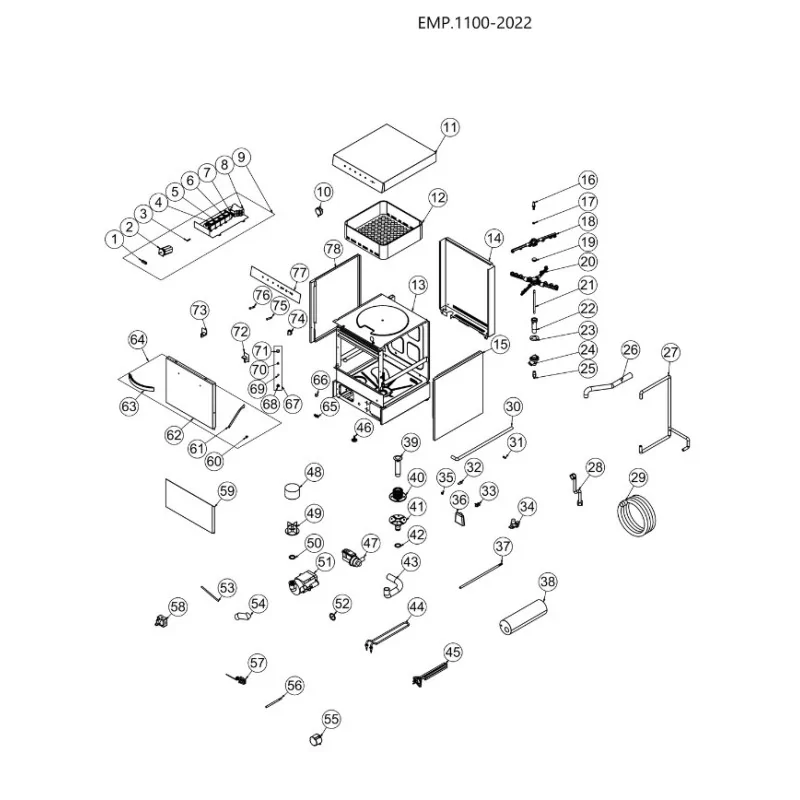

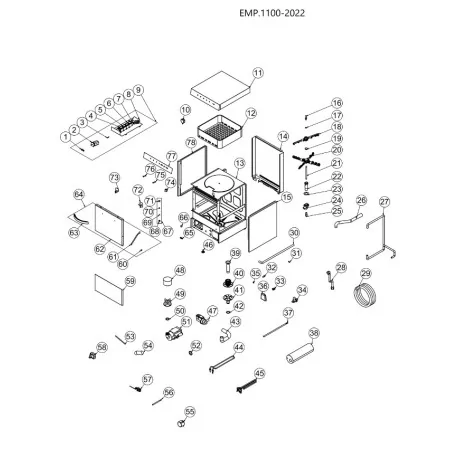

  • Exploded view position:

    • EUT.1100: Number 5

    • EUT.1100S: Number 5

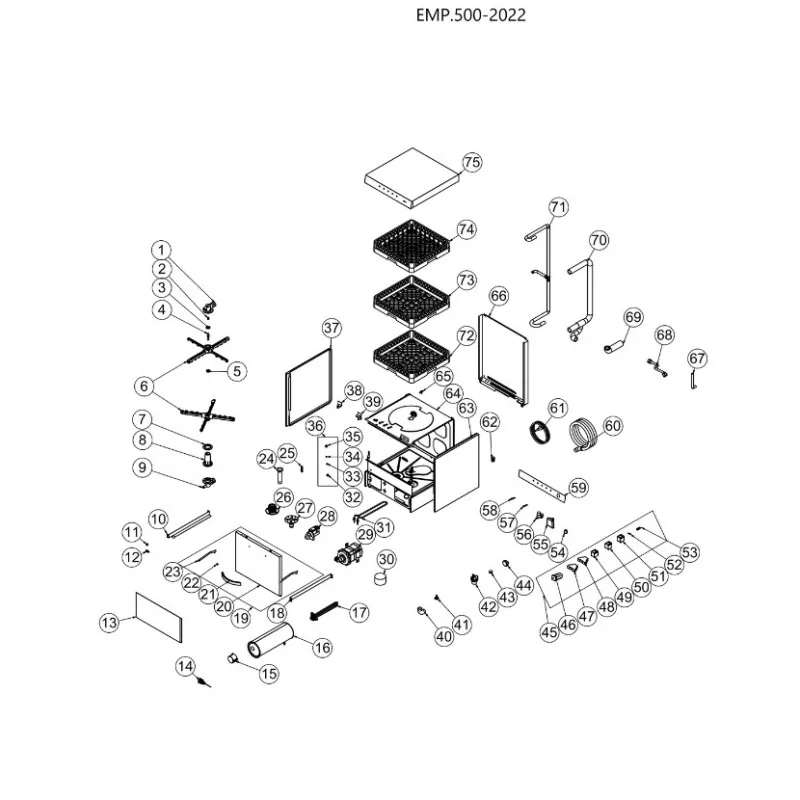

    • EUT.500: Number 50

  • References: LC1K0901M7, ERS.M.ELK-KNT-KNT-021
