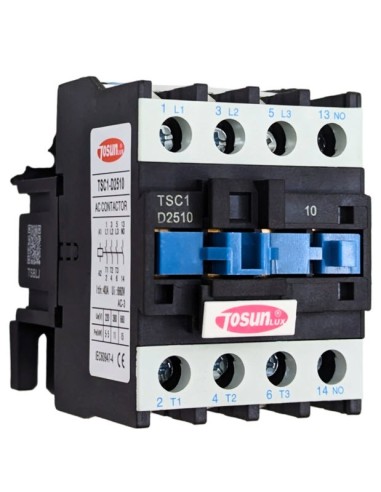

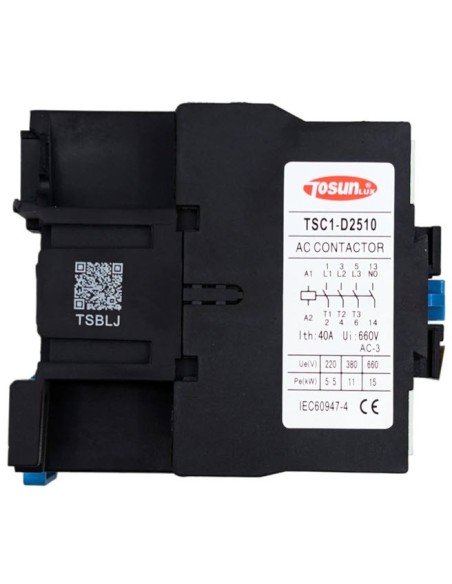

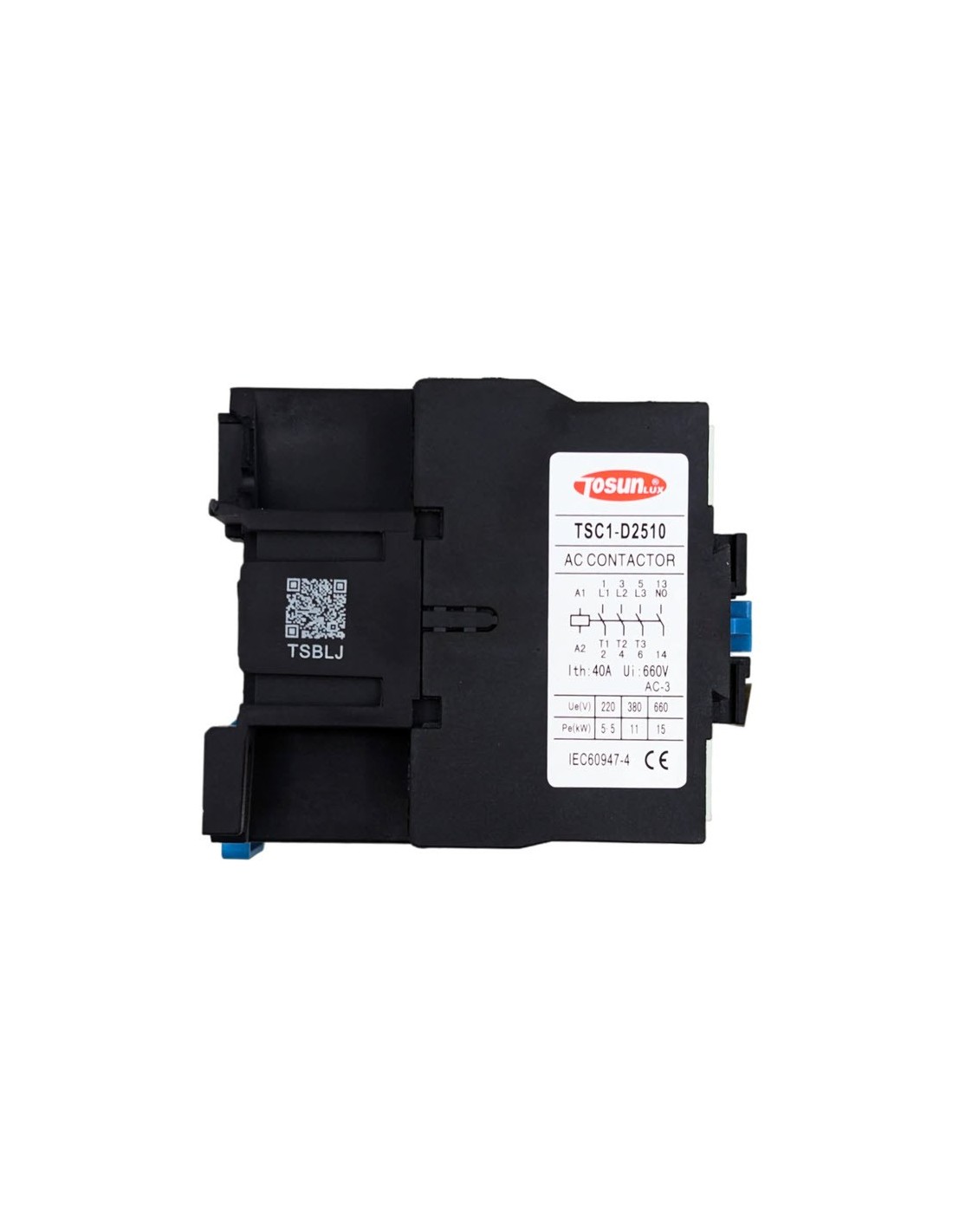

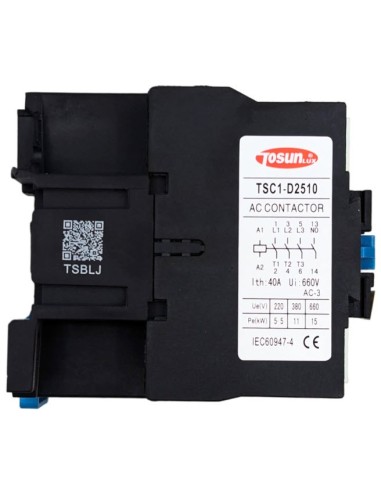

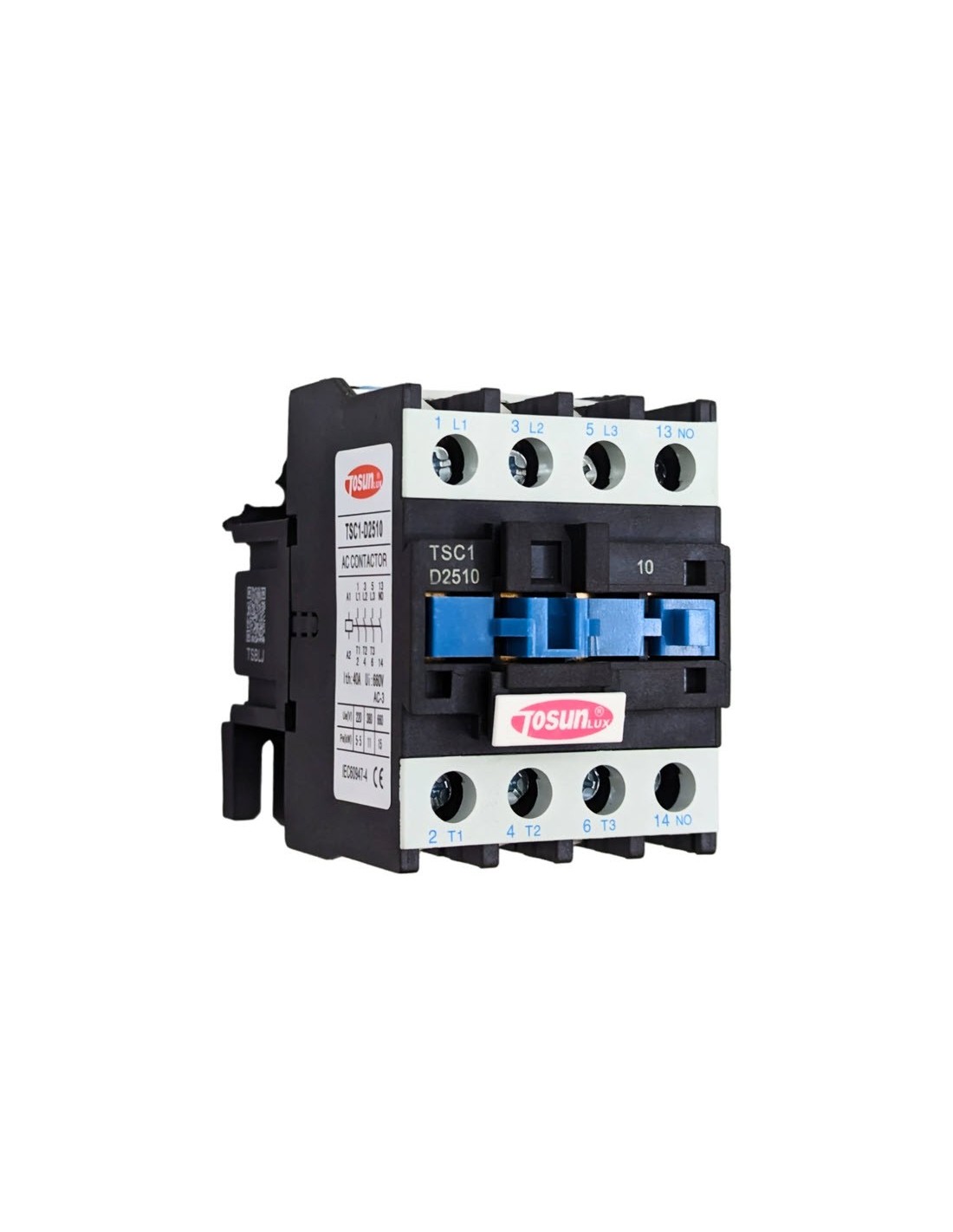

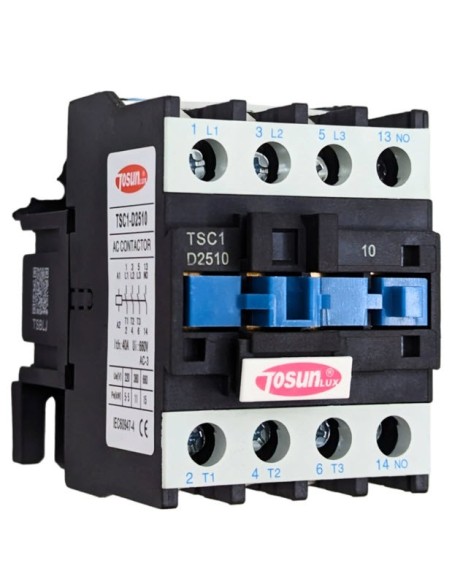

Contactor 230V AC3 25A main contacts 3NO auxiliary NO TSC1-D2510

Contactor 230V AC3 25A main contacts 3NO auxiliary NO TSC1-D2510

• Model / Series: TSC1-D2510 - Tosun Lux

• Coil voltage: 220 - 230 V AC

• Main poles: 3 NO - Normally open

• Auxiliary contacts: 1 NO - Normally open - Terminals 13-14

• Rated current AC-3: 25 A

• Rated current AC-1 / Ith: 40 A

• Power rating AC-3: 11 kW at 380V / 400V - 5.5 kW at 220V

• Rated insulation voltage Ui: 660 V AC

• Terminal type: Screw terminal

• Mounting type: 35 mm DIN rail or screw mounting

• Dimensions: Width 45 mm x Height 85 mm approx. x Depth 92 mm approx.
