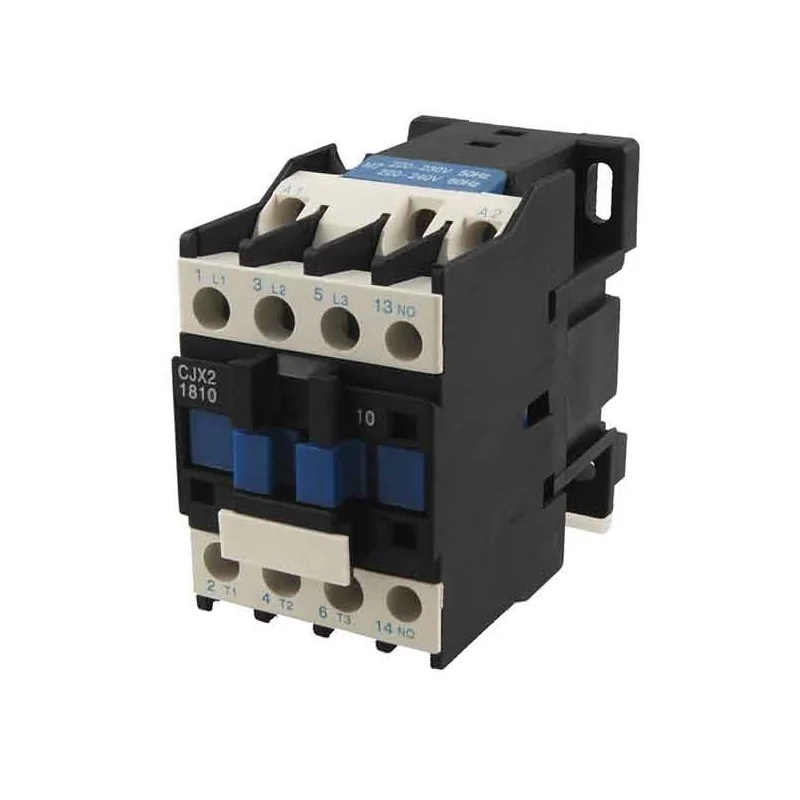

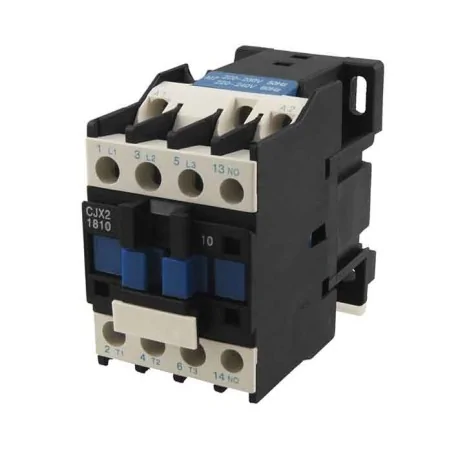

Contactor AC3 18A Coil 230VAC 3 Poles 3 NO Contacts 1 NO auxiliary CJX2-1810

Contactor AC3 18A Coil 230VAC 3 Poles 3 NO Contacts 1 NO auxiliary CJX2-1810

• Model: CJX2-1810

• Rated Current: 18 A (AC-3) / 32 A (AC-1)

• Max Motor Power (AC-3): 7.5 kW (400 V) / 4 kW (230 V)

• Coil Voltage: 230V AC 50/60Hz

• Operating Voltage: Up to 690 V AC

• Contacts: 3 Main NO poles + 1 Auxiliary NO

• Operating Frequency: 1200 cycles/h

• Durability: 1 million (electrical) / 10 million (mechanical)

• Mounting: 35 mm DIN rail or screws

• Operating Temperature: -5 °C to +55 °C

• Standard: IEC 60947-4-1

• Utilization Categories:

  • AC-1: Resistive loads (heating, ovens, lighting).

  • AC-2: Slip ring motors (cranes, mills).

  • AC-3: Squirrel cage motors (pumps, fans).

  • AC-4: Cage motors (reversing, braking).
