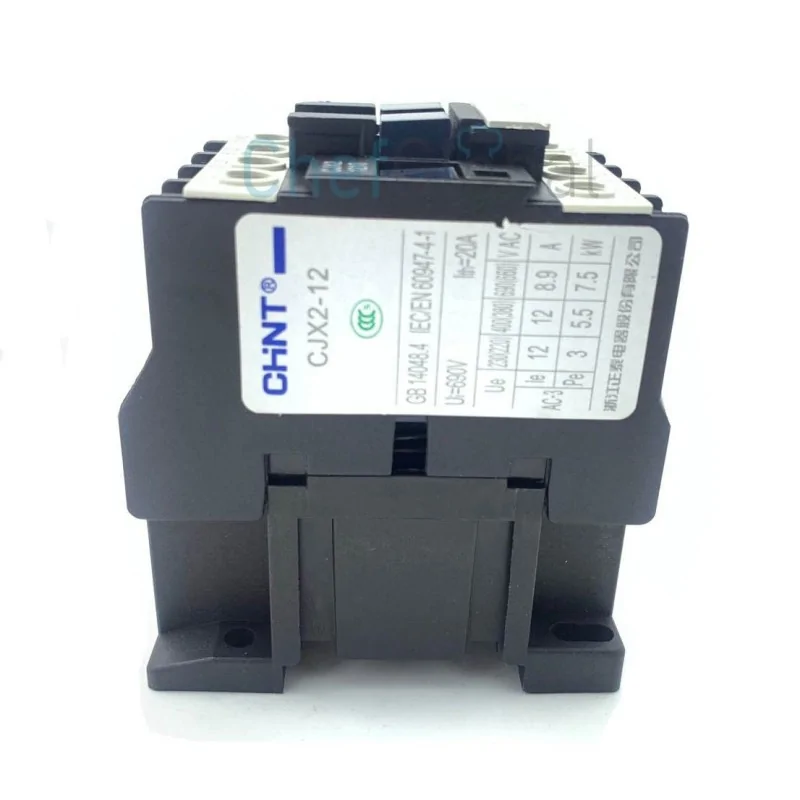

Contactor Coil 24VAC AC3 12A main contacts 3NO auxiliary NO CJX2-1210

Contactor Coil 24VAC AC3 12A main contacts 3NO auxiliary NO CJX2-1210

• Model / Series: CJX2-1210

• Coil voltage: 24 VAC - 50/60 Hz

• Main poles: 3 NO - Normally open

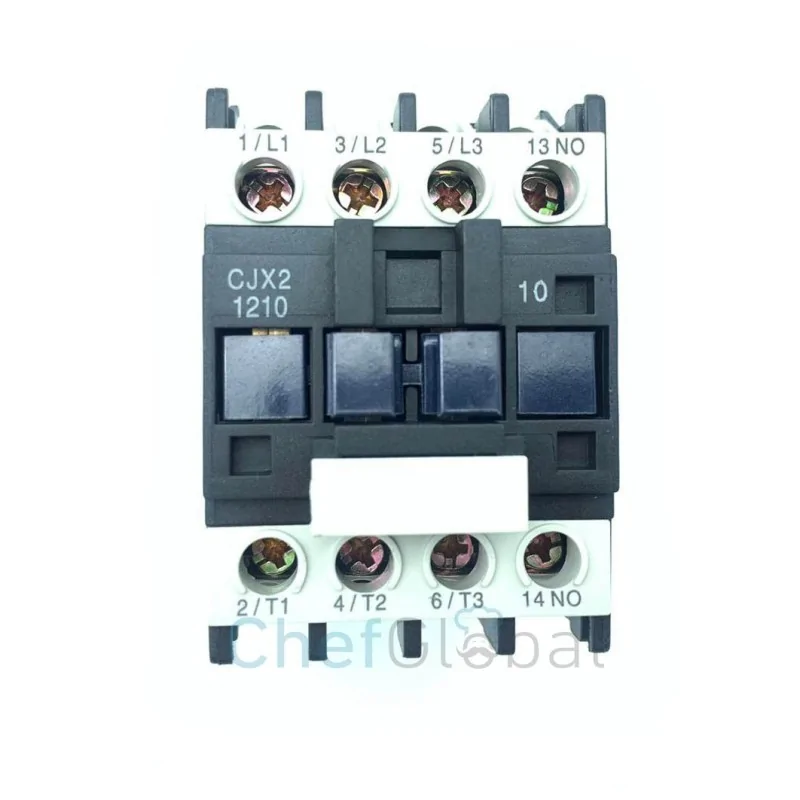

• Auxiliary contacts: 1 NO - Normally open - Terminals 13-14

• Rated current AC-3: 12 A

• Rated current AC-1 / Ith: 20 A

• Rated power AC-3: 5.5 kW at 380V / 400V - 3 kW at 220V / 230V

• Rated insulation voltage Ui: 660 V - 690 V AC

• Terminal type: Threaded - Screw

• Mounting: 35 mm DIN rail or screw fixing

• Dimensions: Width 45 mm x Height 75-80 mm approx. x Depth 80-8
