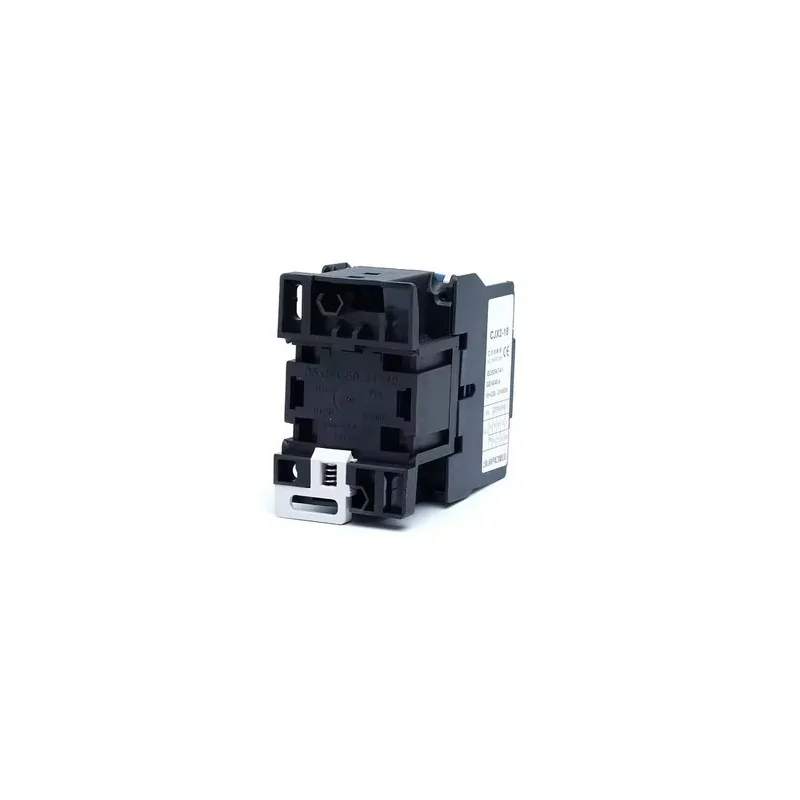

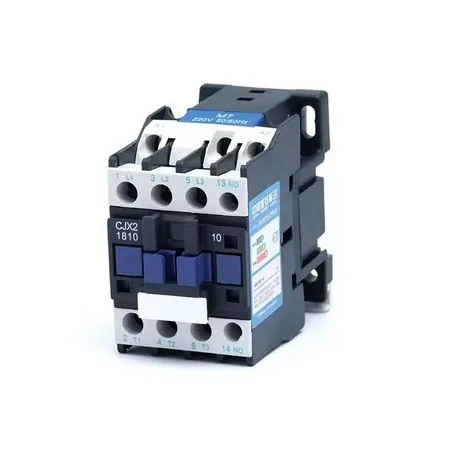

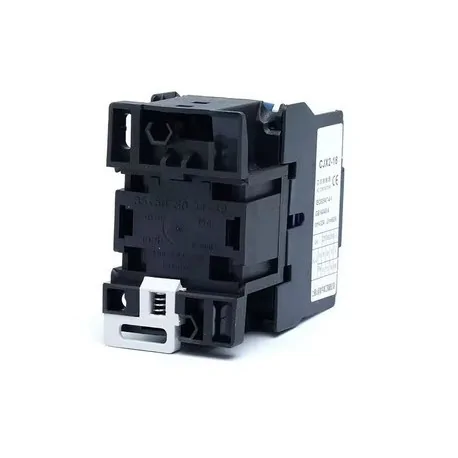

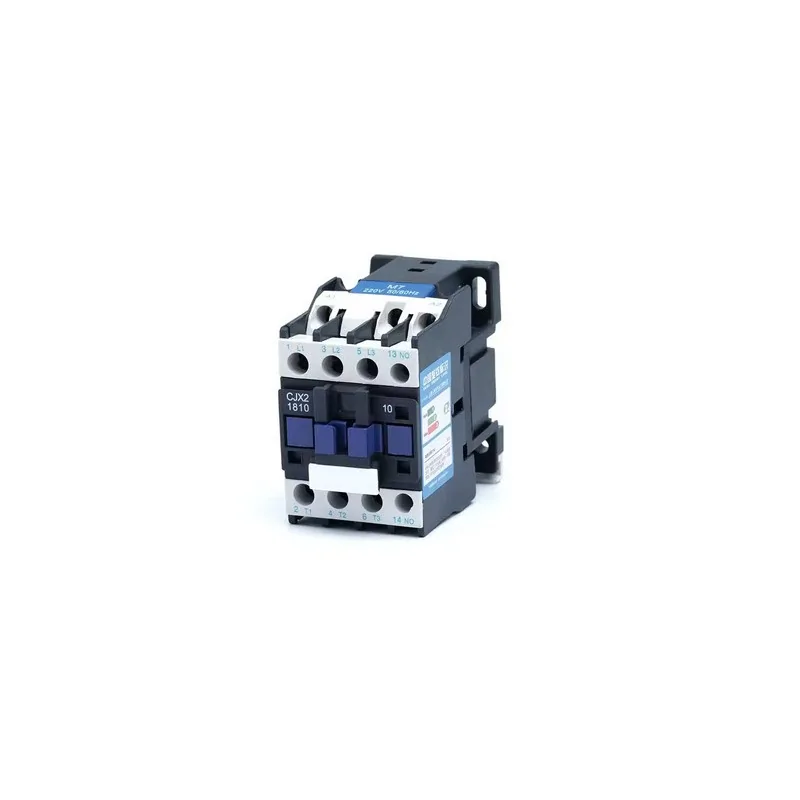

AC3 Contactor 18A, 380VAC Coil, 3 Poles, 3 NO Contacts, 1 Auxiliary NO Contact, CJX2-1810
Model: CJX2-1810
Rated Current (AC-3): 18 A
Rated Current (AC-1): 32 A
Maximum Motor Power (AC-3): 7.5 kW (400 V)
Operating Voltage: Up to 690 V AC
Utilization Category: AC-3
Number of Main Poles: 3
Auxiliary Contacts: 1 NO
Operating Frequency: 1200 cycles/h (AC-3)
Coil Voltage: 380 V AC
Electrical Durability: 1 million operations
Mechanical Durability: 10 million operations
Mounting: DIN rail or screws
Operating Temperature: -5 °C to +55 °C
Applicable Standard: IEC 60947-4-1
Applications:
Starting and stopping three-phase motors
Controlling pumps, fans, and compressors
Electrical panels and automation systems
AC-1 Resistive: Heating, ovens
AC-2 Loop motor: Cranes, mills
AC-3 Squirrel cage motor: Pumps, compressors, fans
AC-4 Squirrel cage motor (reversing/braking): Elevators, cranes, presses
