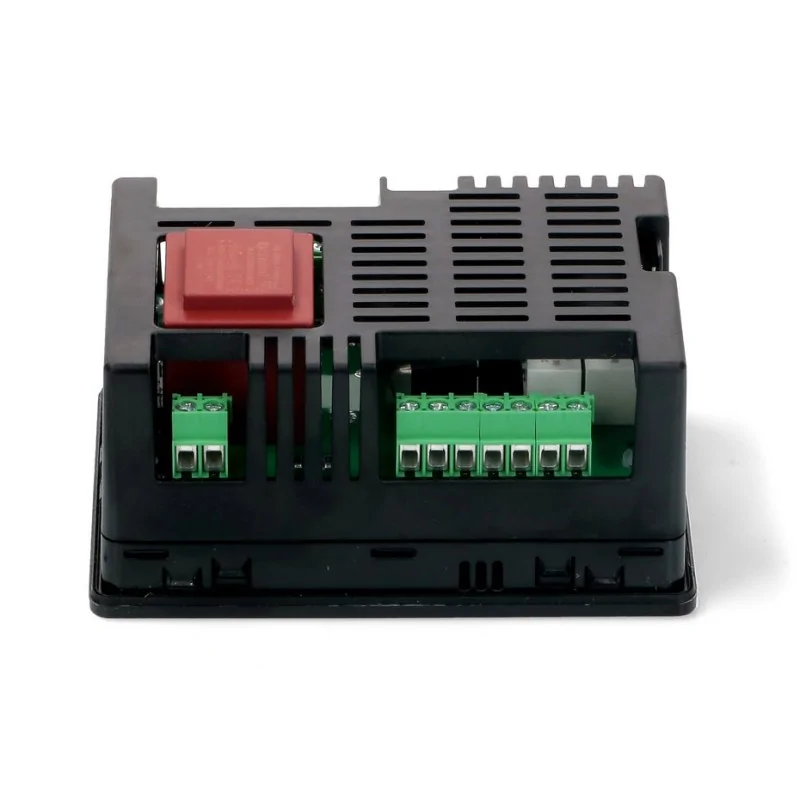

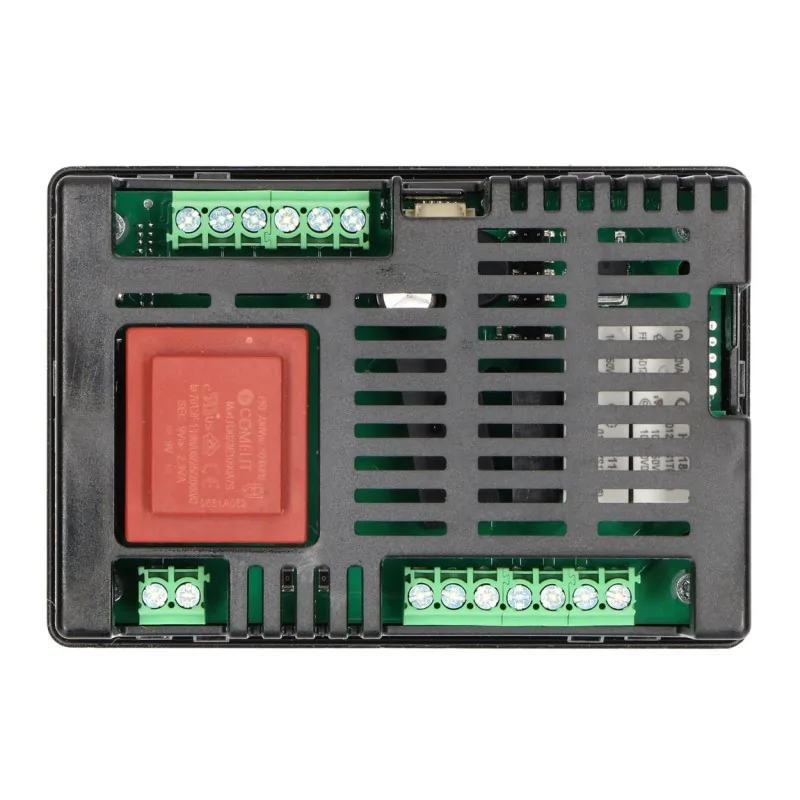

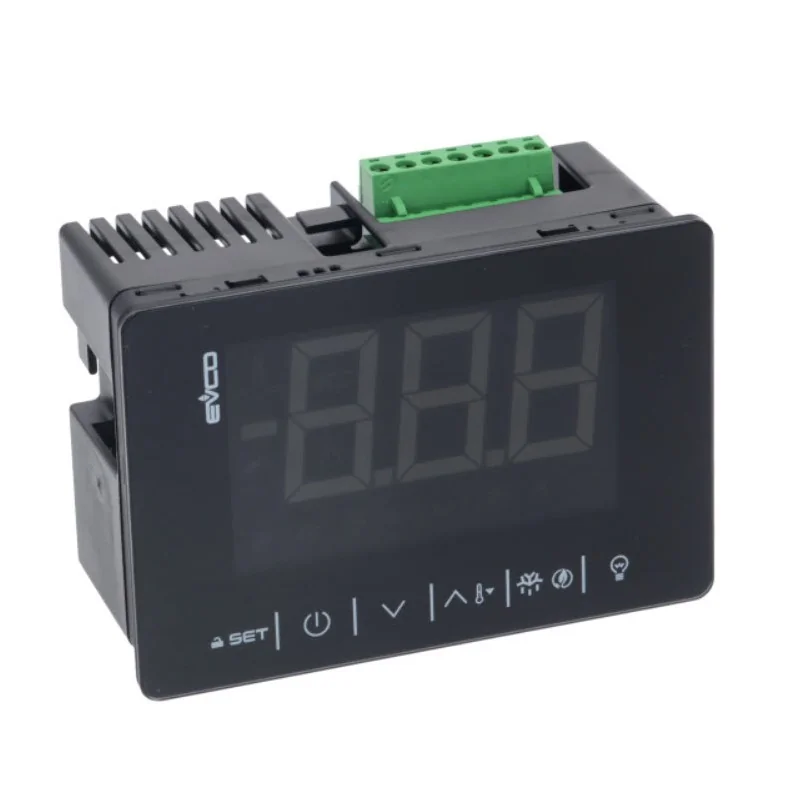

Electronic controller Every Control EVJ205N7 EVJ205N7VXH 230V

Electronic controller Every Control EVJ205N7 EVJ205N7VXH 230V

• Power supply: 230 VAC 50 or 60 Hz

• Consumption: Approximately 2.3 VA according to Comelit internal transformer

• Operating temperature: -5 °C to 55 °C

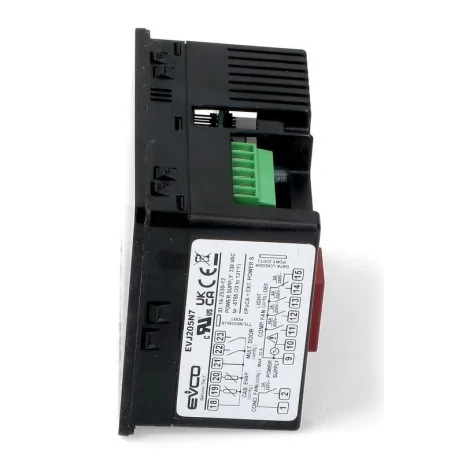

• Probe and digital inputs:

  • 18-19 Cabin probe

  • 18-20 Evaporator probe

  • 18-21 Configurable input for condenser probe or digital input

  • 22-23 Configurable digital input for multifunction or door micro switch

• Relay outputs:

  • 10-11 Compressor high power relay 16A at 250V

  • 10-12 Evaporator fans 3A at 250V

  • 10-13 Defrost 8A at 250V

  • 10-14 Light or auxiliary output 8A at 250V

  • 1-2 Configurable condenser fan output

• Communication and connectivity:

  • TTL or MODBUS port for monitoring systems or programming key

  • Optional Data Logger port for data recording

  • EPoCA compatibility for remote monitoring via Wi-Fi with external module

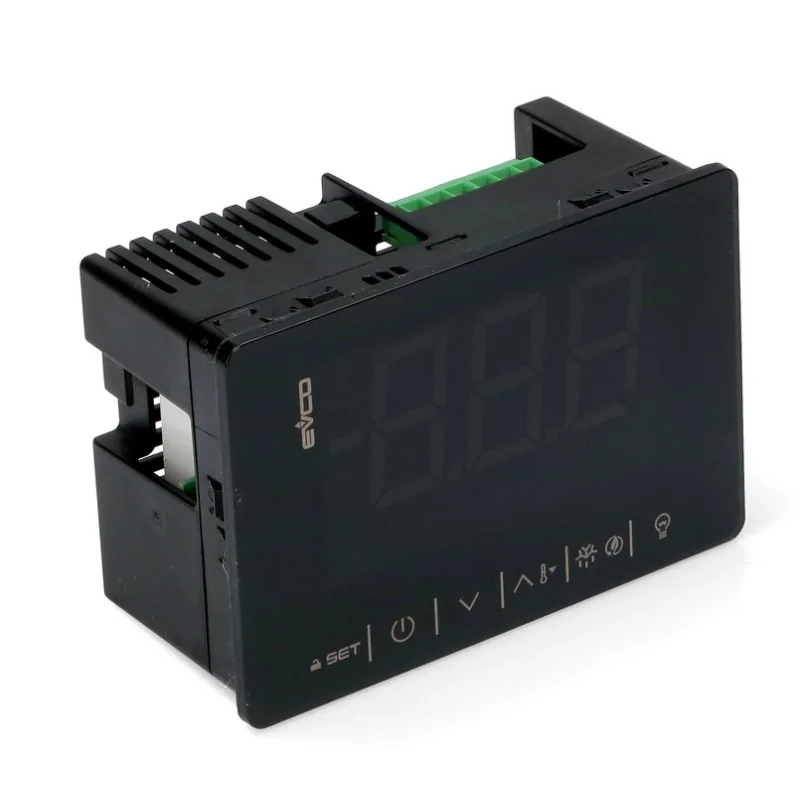

• User interface:

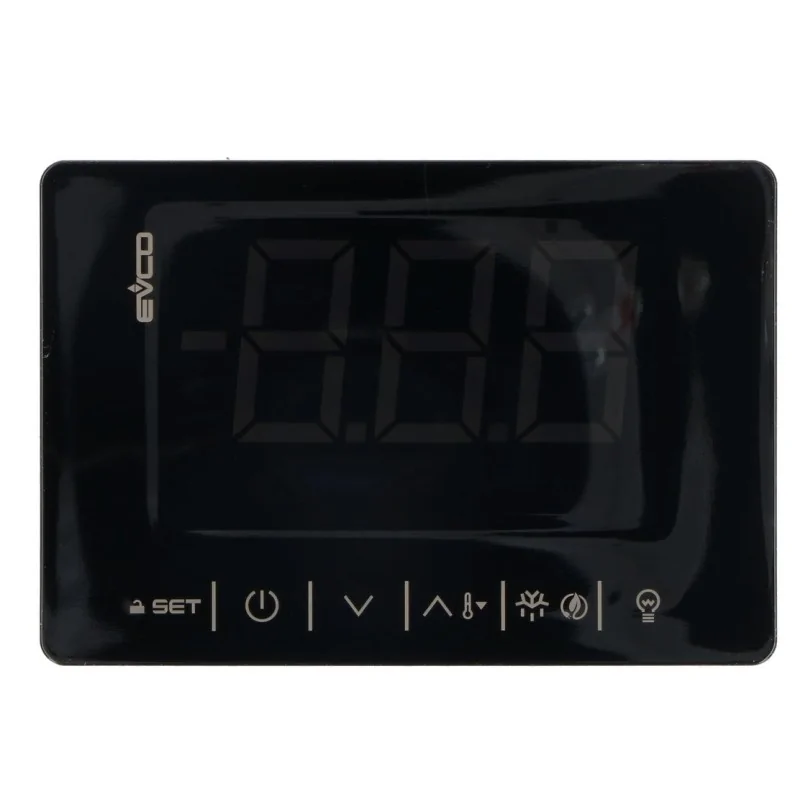

  • 3 digit LED display with decimal point and status icons

  • Capacitive touch keypad integrated in flat glass or plastic front

  • Quick functions for Setpoint and power on or off

  • Manual defrost and energy saving
