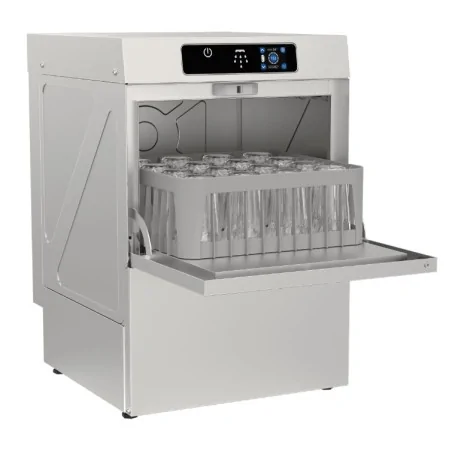

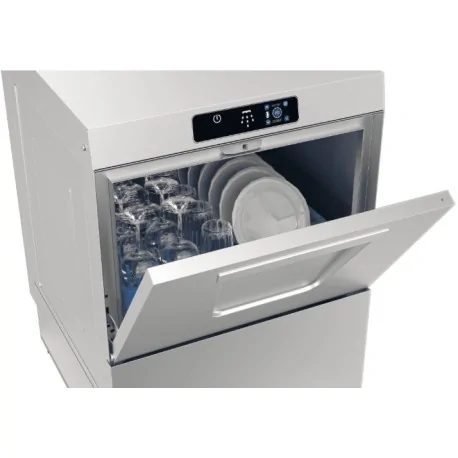

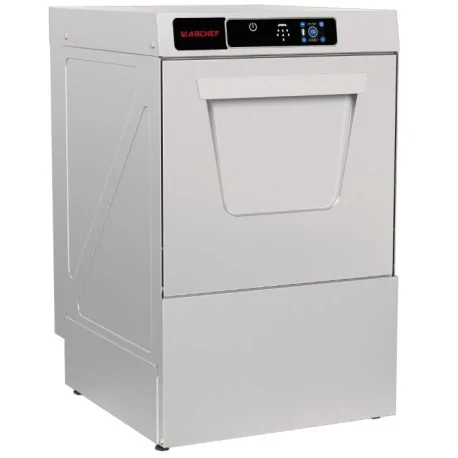

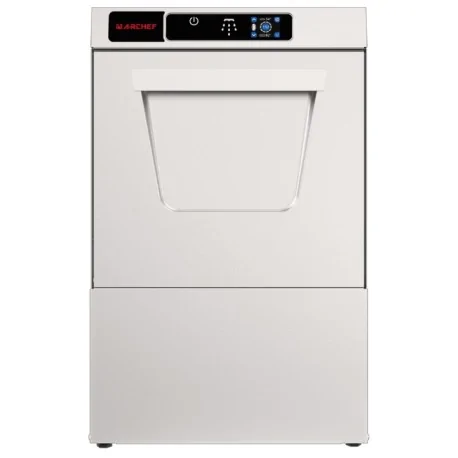

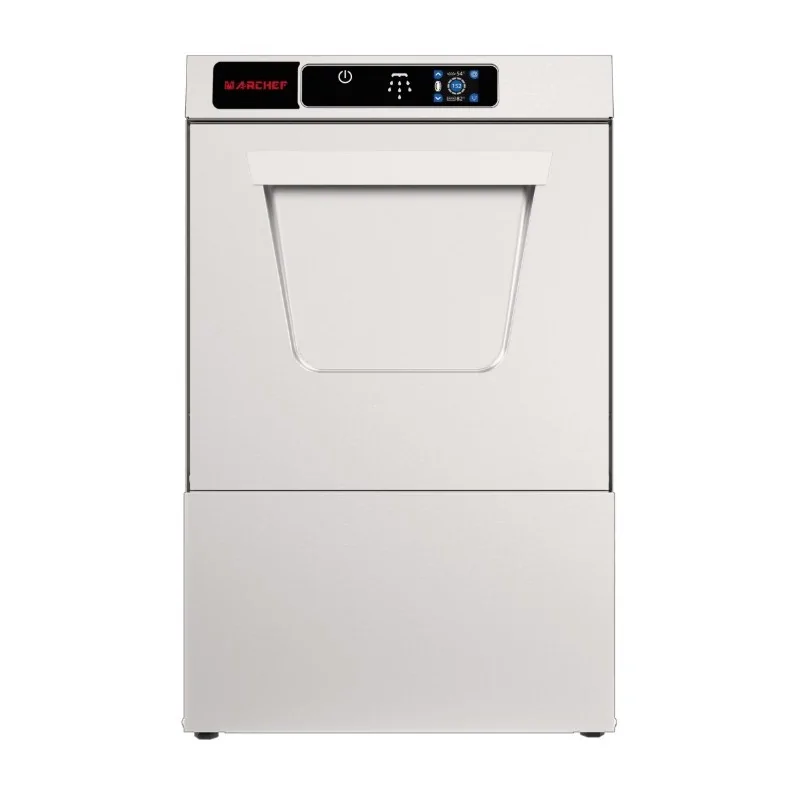

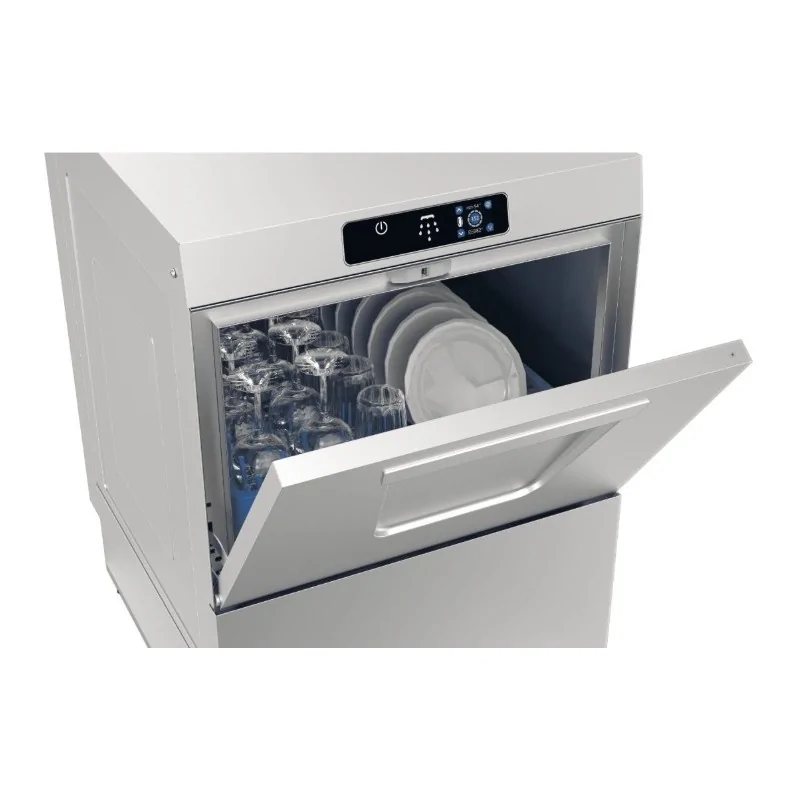

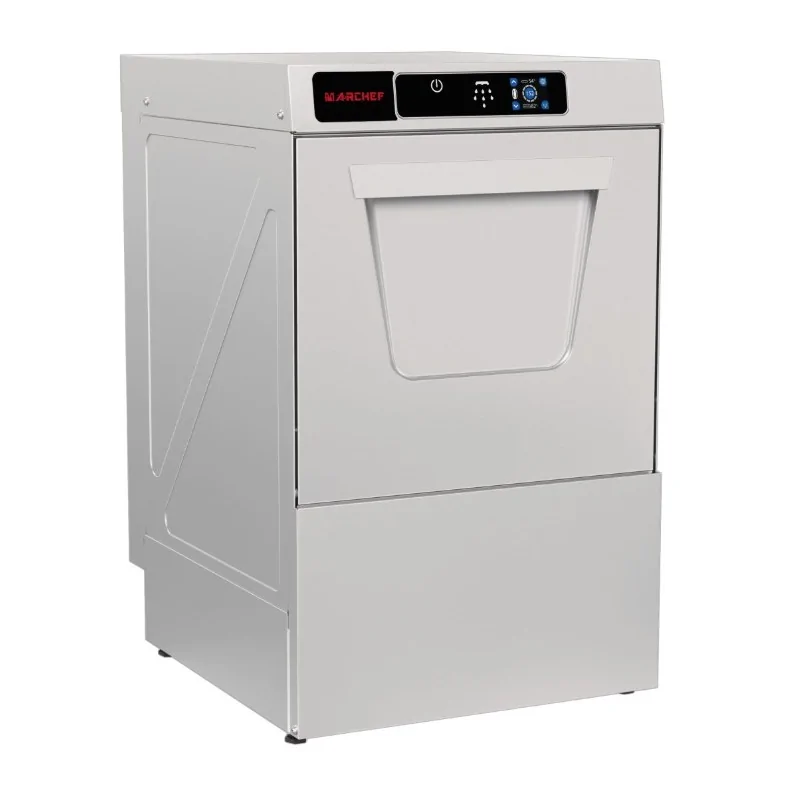

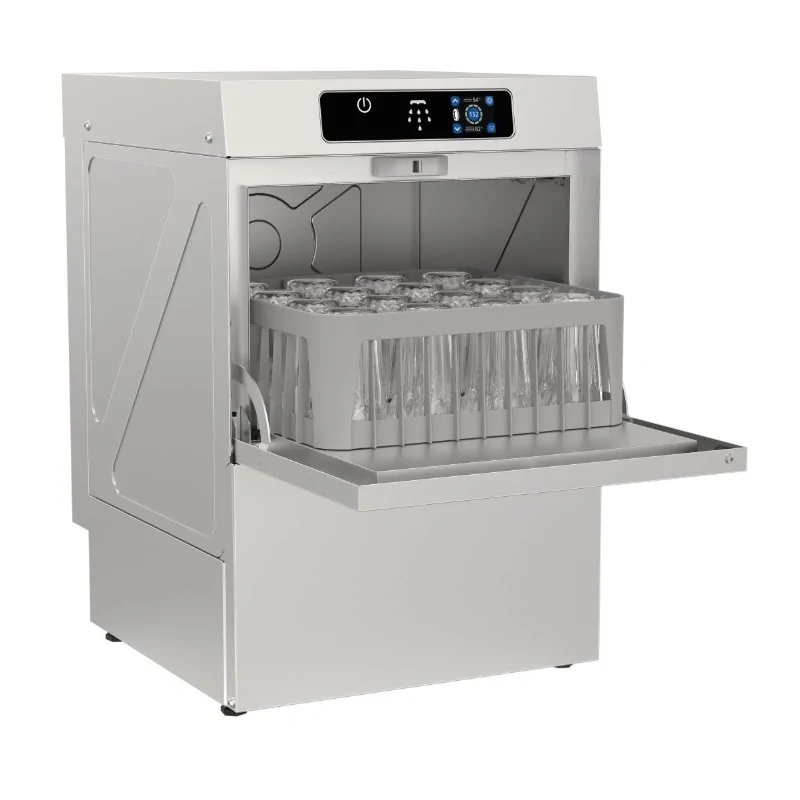

Dishwasher basket 40x40 OBY 40T P touch panel

• Robust and easy-to-clean pressed stainless steel body.
• Sloped tank for optimal drainage and enhanced hygiene.
• Stamped tank bottom with filter housing (Hygienic).
• Intuitive, dynamic, color touch control panel.
• Front-mounted temperature indicators.
• Fully sealed body with IPX5 water protection.
• Height-adjustable feet for perfect installation. Durable, reinforced polypropylene wash arms.
• Integrated rinse aid dispenser.
• Includes two baskets (plates and glasses).
• Cutlery holder included.
• Usable loading height: 330 mm
• Basket dimensions: 400 x 400 mm
• Number of programs: 3
• Program durations: 105 / 135 / 195 seconds
• Maximum capacity: 500 glasses/hour. 34 / 26 / 18 baskets/h depending on the program
• Tank/boiler capacity: 18.4 L / 2.8 L
• Water consumption per cycle: 2.5 L
• Total power: 3.3 kW
• Tank/boiler heating power: 2 kW / 3 kW
• Wash pump: 0.25 kW
• Electrical connection: 230V ~ NPE / 50 Hz
• Water inlet pressure: 2–4 bar
• Water inlet temperature: 50 °C
• Water inlet connection: 3/4"
• Drain: 3/4" (Ø 28 mm)
• Maximum noise level: 70 dBA
• Gross weight: 40 (±5) kg
• Installation incline: 6°
• Soft-start, gentle and quiet start to protect glassware.
• One-button automatic filling and heating.
• Digital temperature control for washing and rinsing.
• Adjustable detergent and rinse aid dosage via touch panel.
• Anti-return valve to prevent water contamination.
• Wash at 55–60°C (minimum 2 bar and 50°C inlet).
• Rinse at 80–85°C, ensuring hygiene and disinfection.
• Optimizes water, detergent, and energy consumption.

Drain Pump: No

Rinse Pump: No

Detergent Dispenser: No

Rinse Aid Dispenser: Yes
