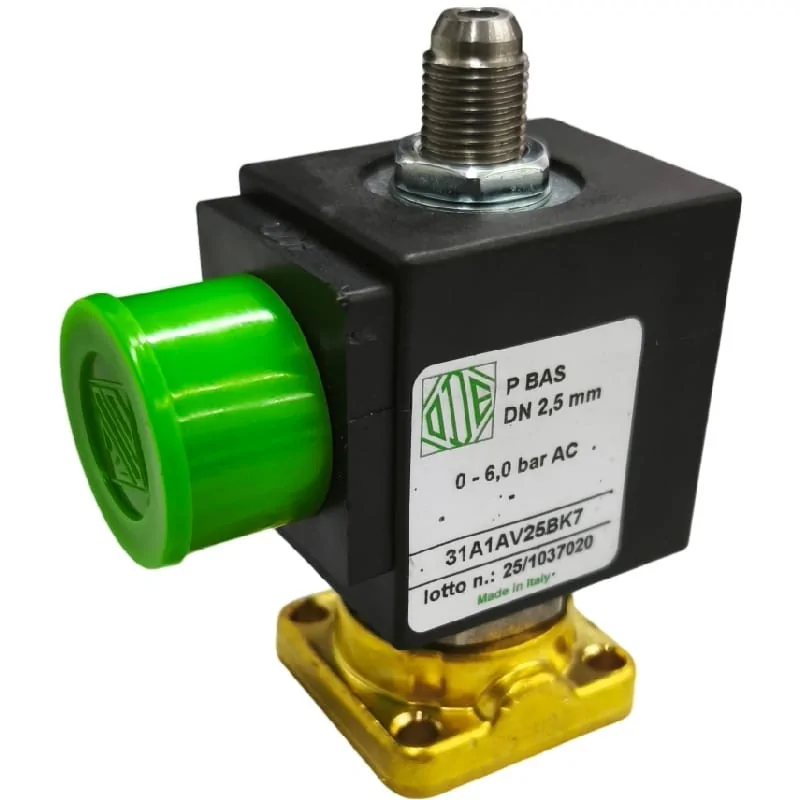

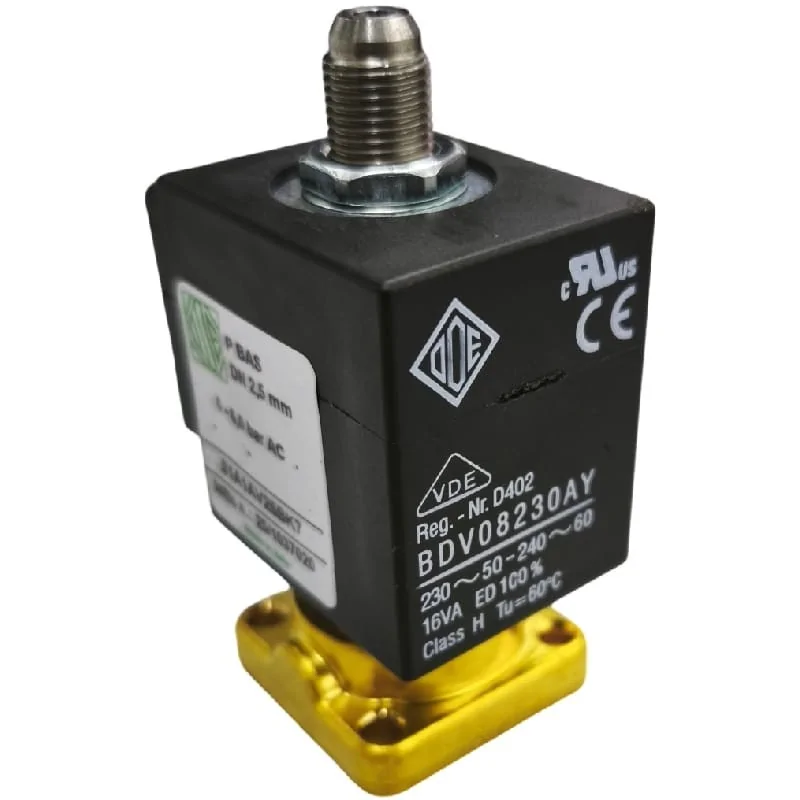

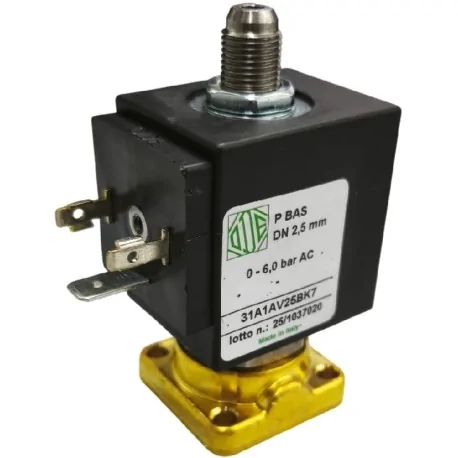

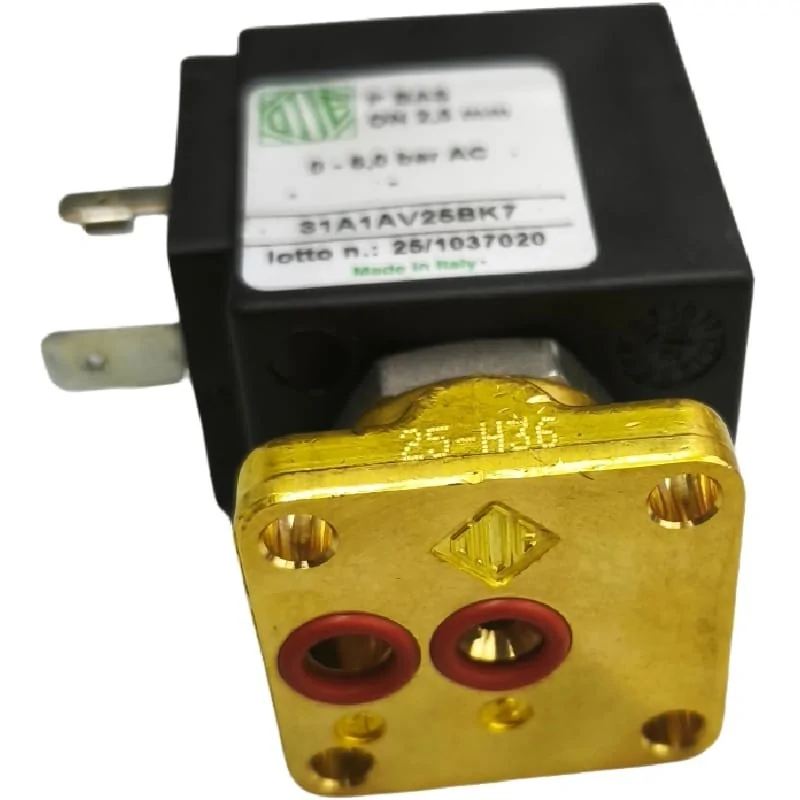

Solenoid valve brass 3-way 230VAC DN 2.5mm -10 to 140°C ODE 31A1 series BDV coil

Solenoid valve brass 3-way 230VAC DN 2.5mm -10 to 140°C ODE 31A1 series BDV coil

• Construction type: Outer cone

• Material: Brass

• Nominal diameter (DN): 2.5 mm

• Power supply: 230VAC

• Manufacturer: ODE

• Coil type: BDV

• Membrane: FKM (Water/Steam)

• Series: 31A1

• Pressure: Min. 0.1 bar / Max. 6 bar

• Temperature range: -10 to 140 °C

• Flange dimensions: 32x32 mm

• Number of ways: 3 ways

• Weight: 0.270 kg

• Compatibility: Azkoyen, BFC (Classica, Galileo, Lira), Conti (X-One), La Spaziale (New S1, S3, Spazio), Royal (Synchro)

• References: BFC 5020055, Conti 4072391, GEV 370203, La Spaziale 01379, ODE 31A1AR15-VORV, Royal 5020055
