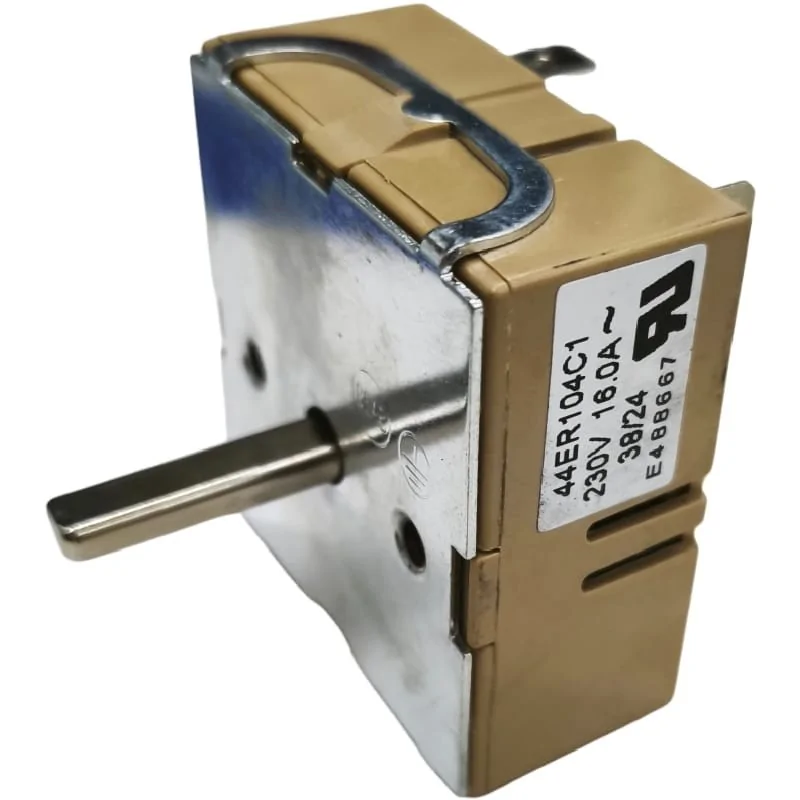

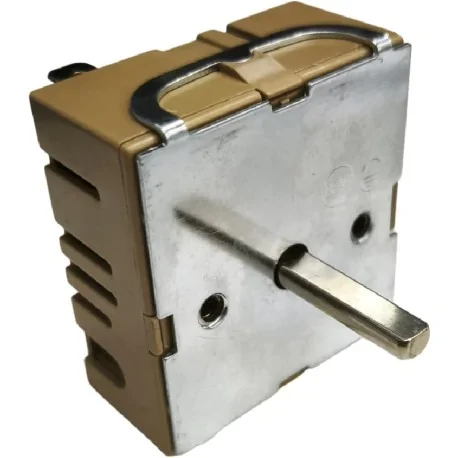

Energy regulator 44ER104C1 230VAC 16A
-
Manufacturer: Diamond H Controls
-
Reference: 44ER104C1
-
Voltage: 230 V
-
Switching capacity: 16 A
-
Power range: 6-100 %
-
Shaft: ø 6 x 4.6 mm (Length 23 mm)
-
Mounting thread: M4
-
Thermal resistance: T125 (Up to 125°C)
-

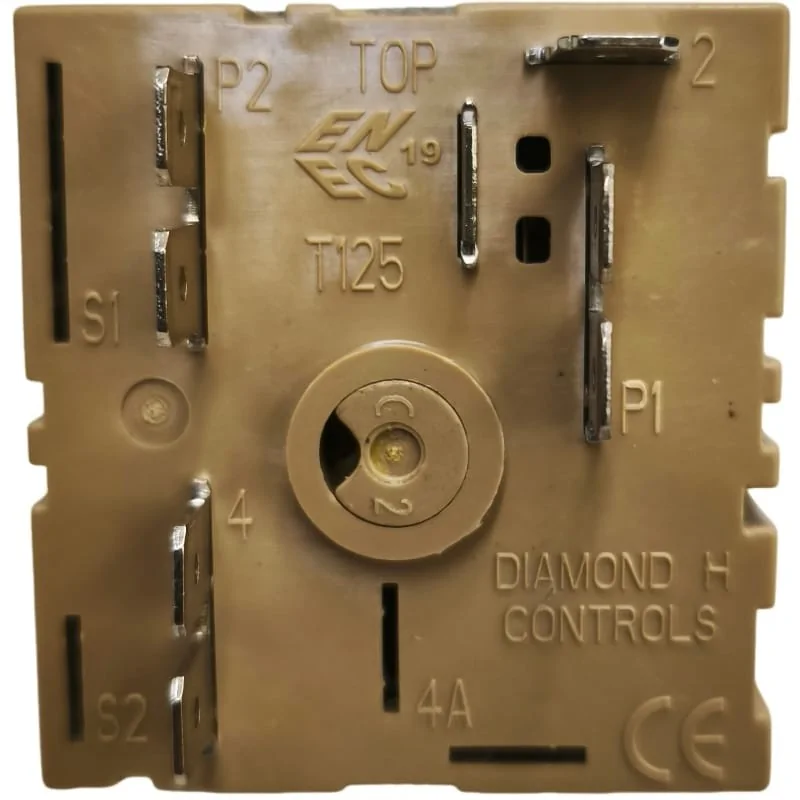

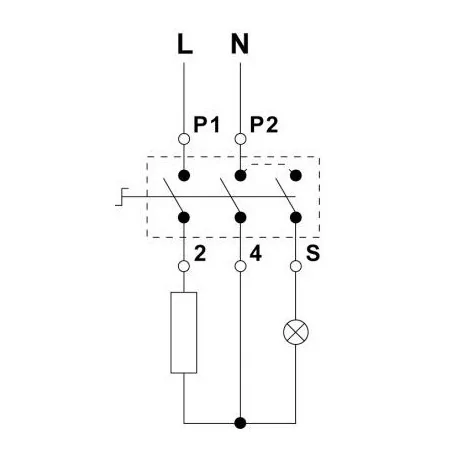

Wiring diagram:
-
P1 / P2: Line input (Phase and Neutral)
-
2 / 4: Load output (Heating element)
-
S1 / S2: Auxiliary contact for pilot light
-
