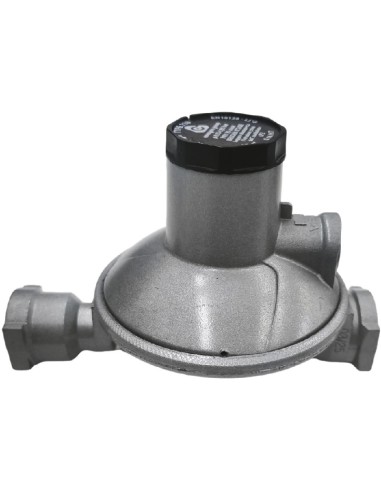

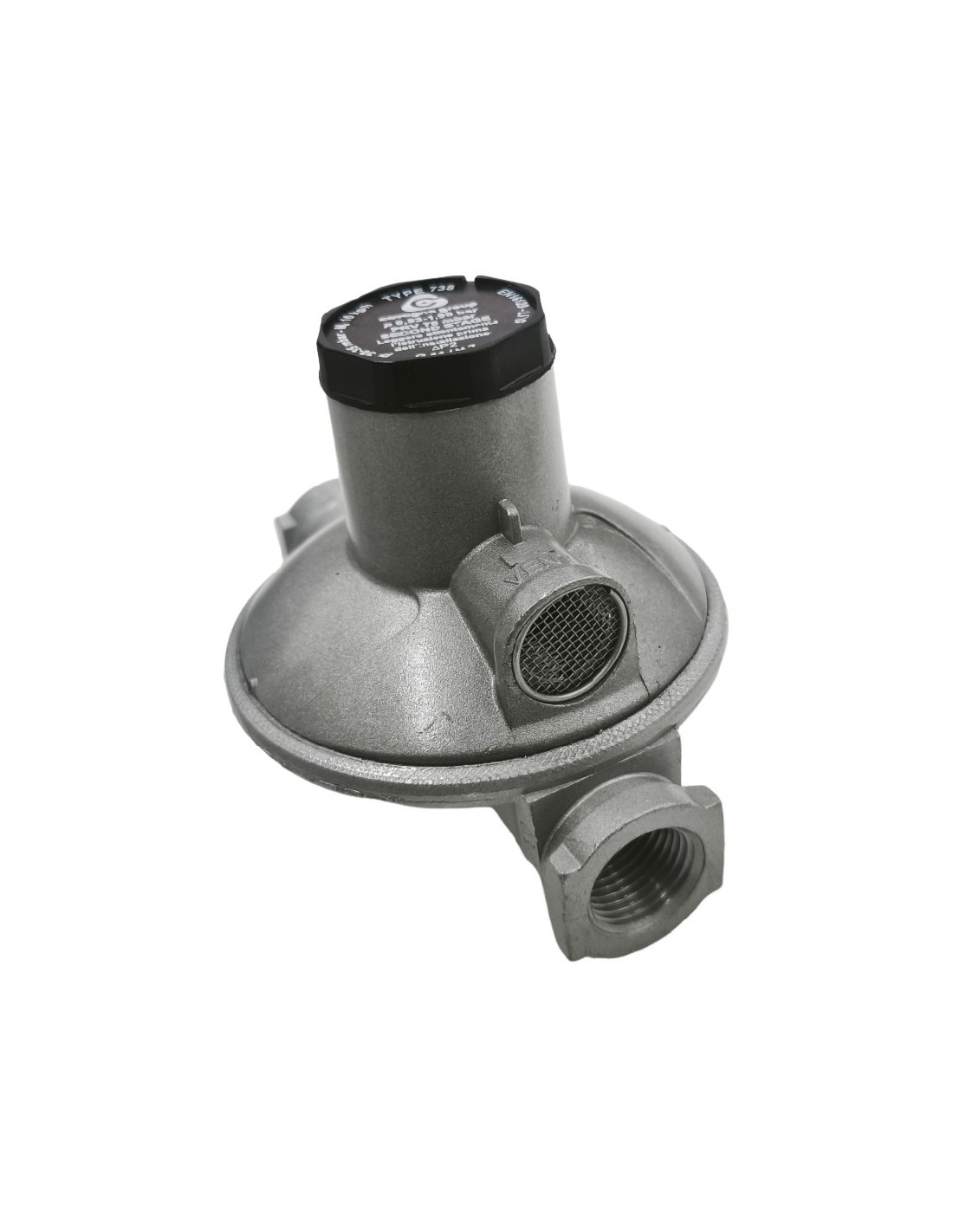

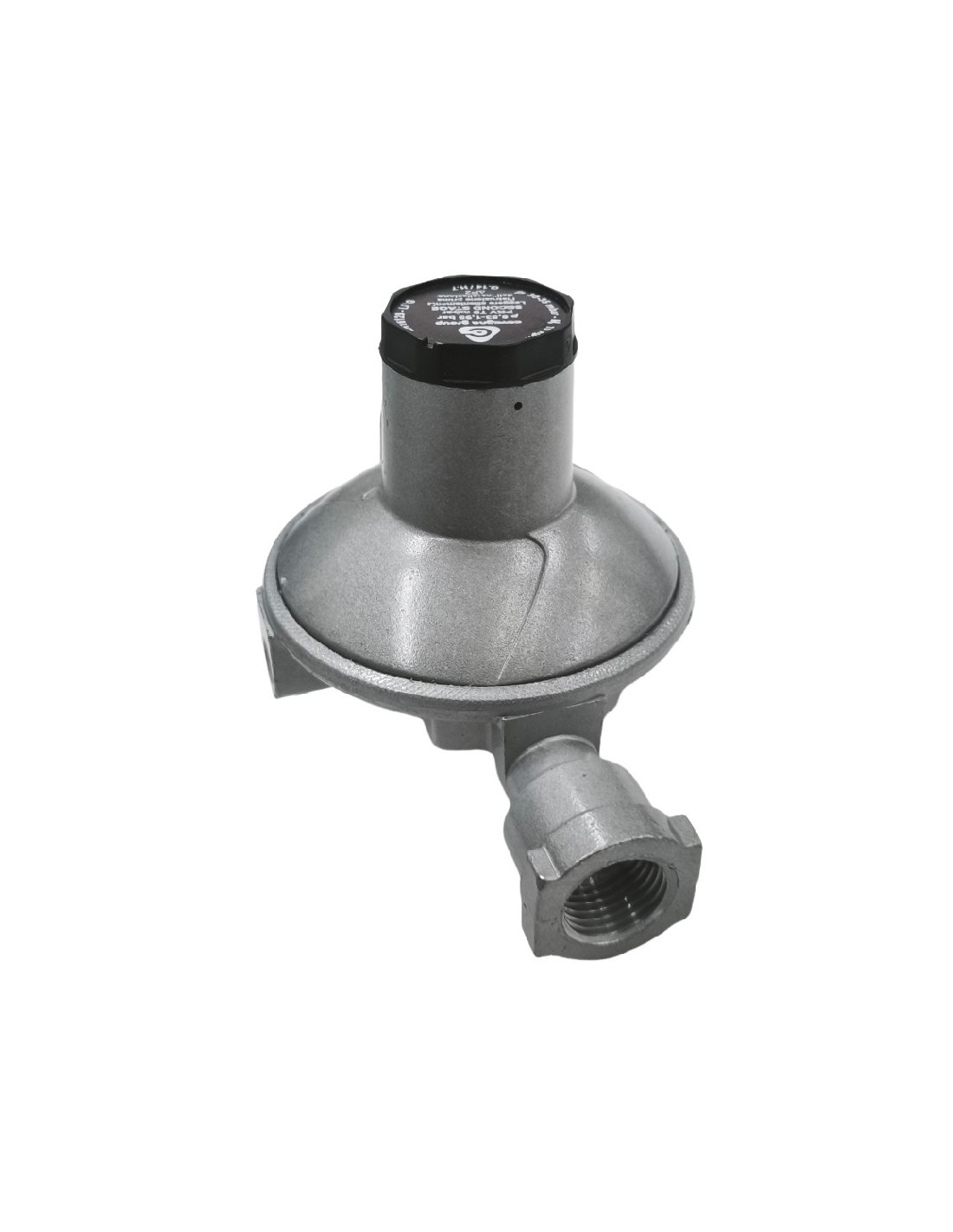

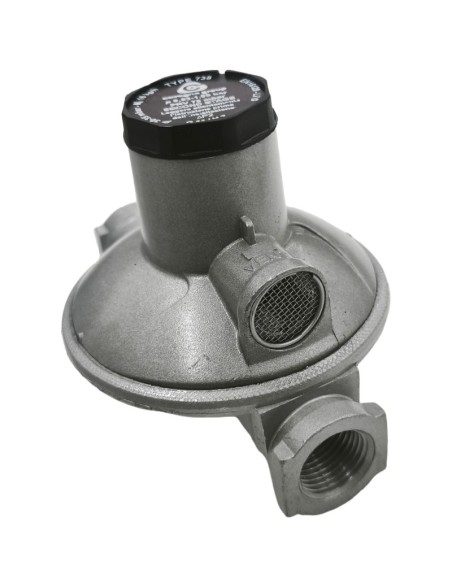

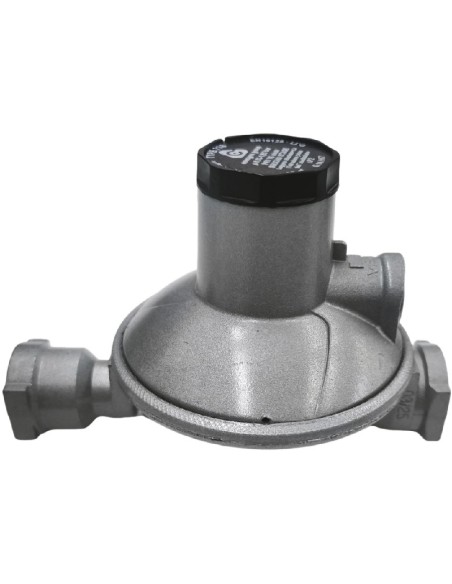

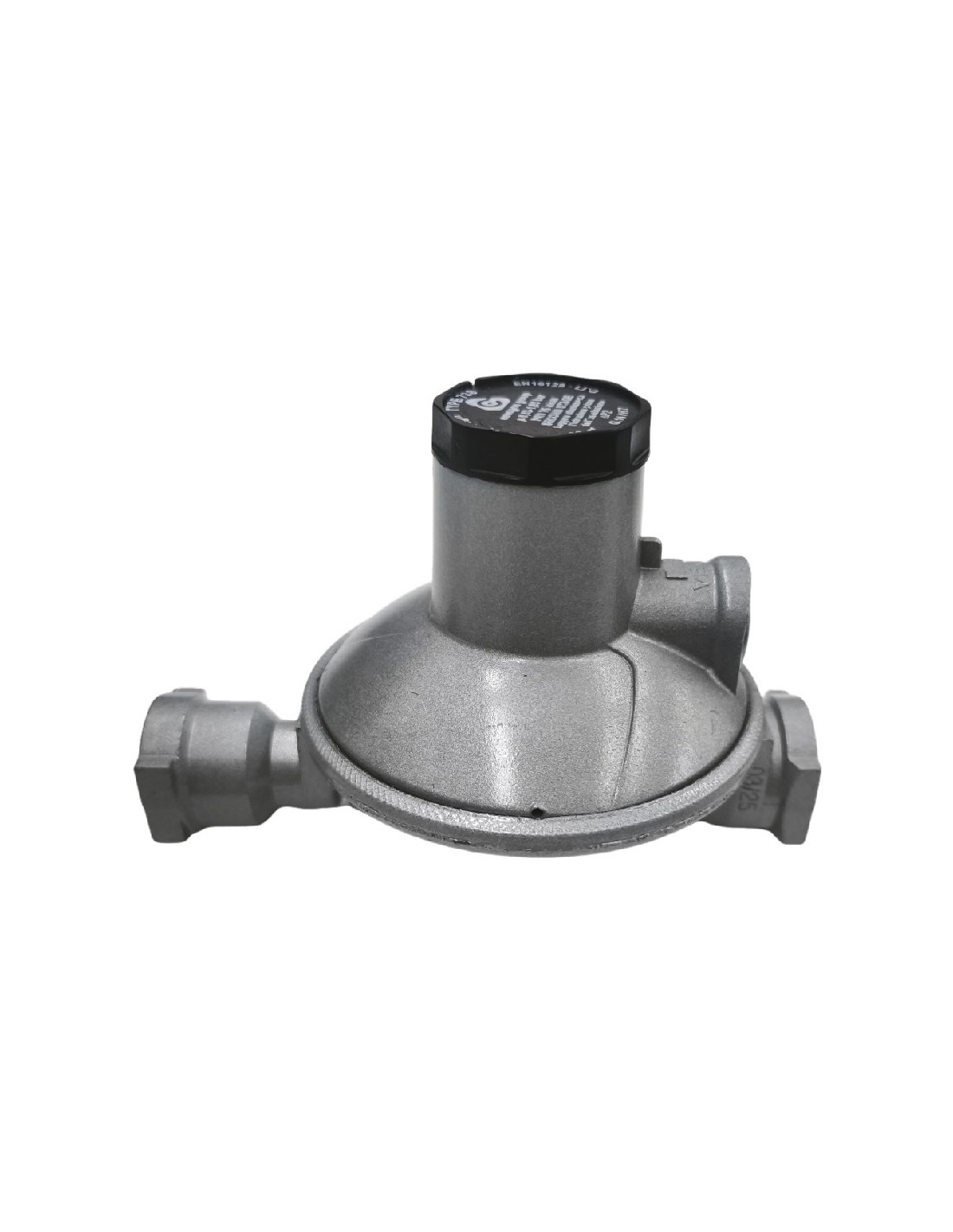

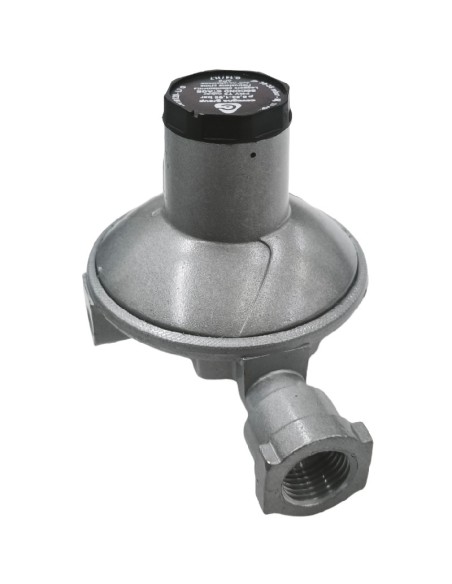

Gas regulator type 7389 30-35mbar outlet 10 kg/h 1/2"-1/2"

Gas regulator type 7389 30-35mbar outlet 10 kg/h 1/2"-1/2"

• Standard: In accordance with EN 16129

• Nominal flow rate: 10 kg/h

• Supply pressure: 0.53 - 1.95 bar

• Outlet pressure: 30 - 35 mbar

• Pressure relief valve (PRV): 75 mbar

• Connections (Inlet/Outlet): 1/2" - 1/2"

• Body & cover material: Die-cast zinc / Water-painted

• Spring material: Steel

• Diaphragms material: Approved NBR

• Test port plug material: Steel

• Note: Equipped with a safety relief valve ("PRV" marking visible on the label).
