Painted Steel Weigh Bars 800mm

Two bars weighing platform with four load cells. Supplied both bars. Painted steel bars.

We include in the pack the display in stainless steel.

Available in two models with different features weighing, 600 kg or 1500 kg.

Weighing characteristics

• Capacity 600 kg with split / division 200 g.
• Capacity 1500 kg with split / division 500 g.

Characteristics of the bars

• Valid for legal metrology.
• Floor installation.
• Is supplied in pairs.
• Load cells ZEMIC H8C model OIML R-60 Nickel-plated steel for bars and painted steel load cells ZEMIC B8D model OIML R-60 stainless steel rods in stainless steel.
• Painted steel.
• Output 5 meter cable.
• Tare weight indicator valid for legal metrology.
• Stainless steel housing.
• Waterproof membrane keyboard with 7 keys and acoustic signaling.
• Backlit LCD display.
• Approval 3,000 and 6,000 divisions OIML class III.
• Certificate CE.Protección IP54.
• 230Vac supply network. Internal rechargeable battery.

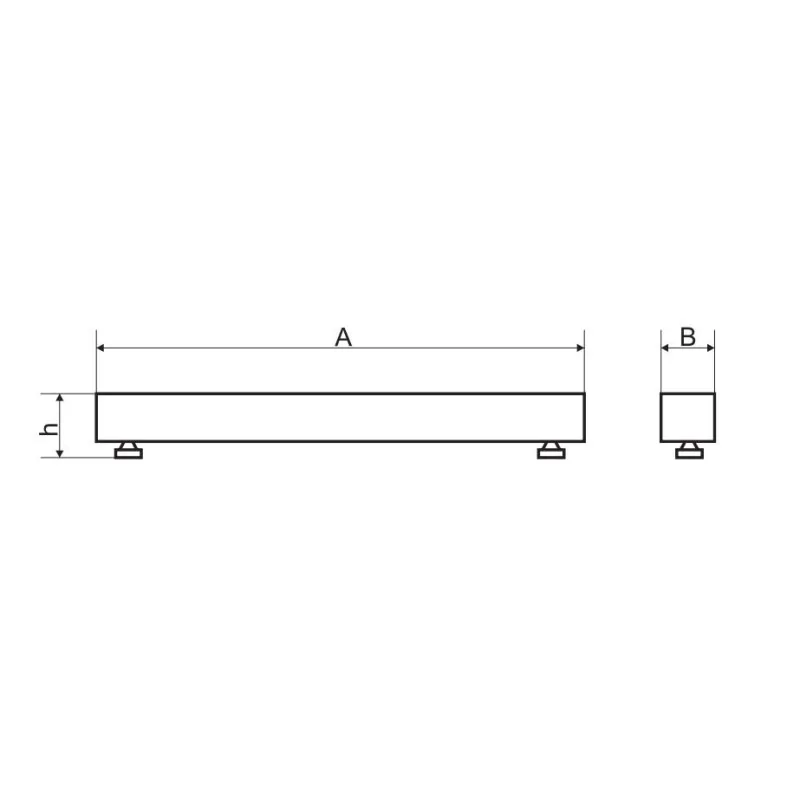

• Dimensions:
  • Front / long (A): 800 mm
  • Depth (B): 105 mm
  • Height (h): 120 mm

Indicator characteristics

• Tare weight indicator valid for legal metrology.
• Stainless steel housing.
• Waterproof membrane keyboard with 7 keys and acoustic signaling.
• Backlit LCD display.
• Approval 3,000 and 6,000 divisions OIML class III. CE certificate. Multispan (1 or 2 ranks).
• Protection IP54. Operating temperature: -10 to + 40 ° C.
• 230Vac supply network.
• Internal rechargeable battery.
• 1 output optional RS232.
• Weight in g, kg, lb Net / Gross.
• AutoTare and memory overhead. Counting function.

Packing

• Package dimensions: 890x340x170mm
• Total weight: 26 kg
