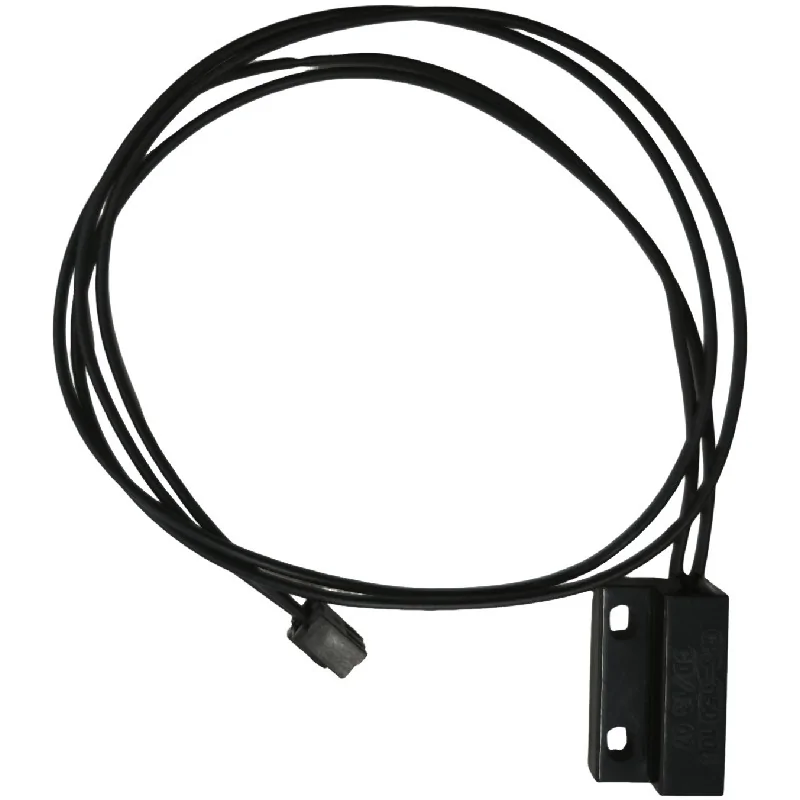

Compact magnetic switch PS 3150 NO

Compact magnetic switch PS 3150 NO

• Sensor type: Normally Open magnetic proximity

• Dimensions: 23 by 14 by 6 mm

• Cable length: 400 mm

• Distance between holes: 14 mm

• Maximum switching power: 10 W

• Switching voltage: 220 V DC or AC

• Switching current: 500 mA DC or AC

• Minimum breakdown voltage: 250 VDC

• Contact resistance: 100 mΩ typical and 200 mΩ maximum

• Contact capacity: 0.7 pF

• Minimum insulation resistance: 109 Ω at 45 percent relative humidity

• Operation: Encapsulated reed switch activated by permanent magnet magnetic field Idle state without magnet the circuit is open with no current flow Active state with magnet the circuit closes and allows current flow
