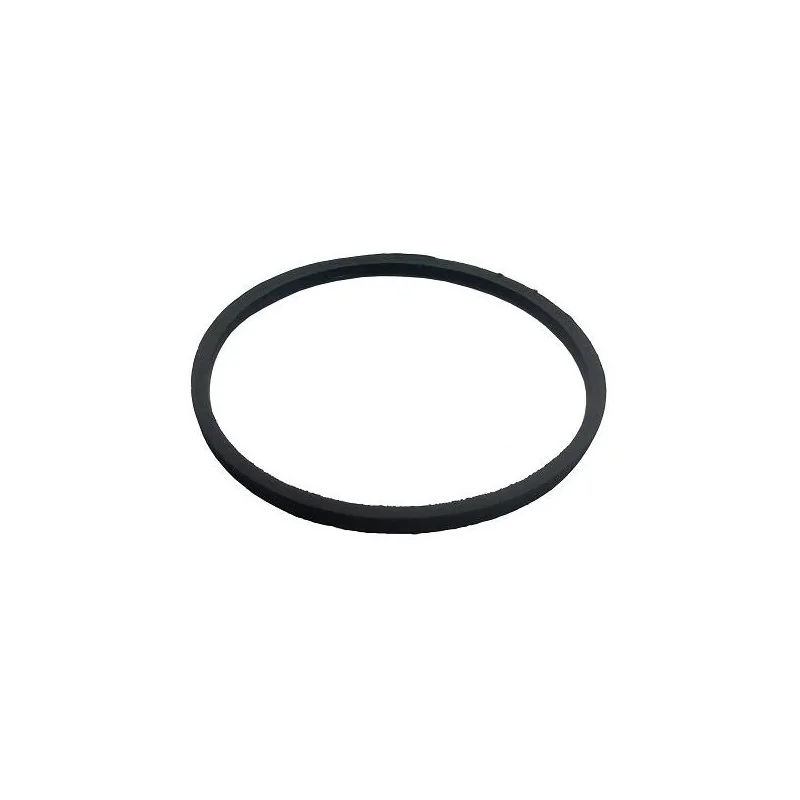

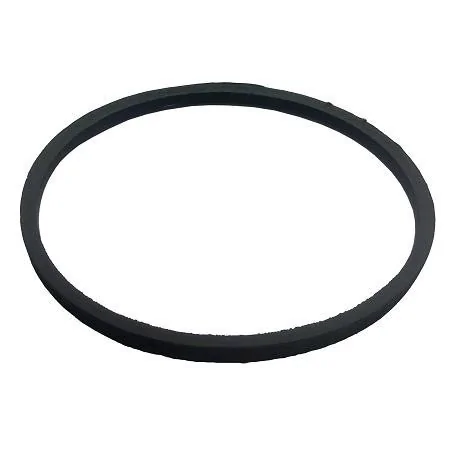

V-Belt O-500 / Z-500 (10x6 mm) - Inside Length 500mm HB-320

V-Belt O-500 / Z-500 (10x6 mm) - Inside Length 500mm HB-320

• Commercial Reference: O-500

• Equivalent Reference: Z-500 / M-500 (depending on manufacturer)

• Belt Type: Wrapped V-Belt - Classic Profile

• Profile (Section): Z (or O-Type)

• Top Width: 10 mm

• Height (Thickness): 6 mm

• Inside Length (Li): 500 mm

• Outside Length (La): 538 mm (Approx.)

• Pitch Length (Ld): 522 mm

• Material: Synthetic rubber (Neoprene) with polyester cords

• Standard: DIN 2215 / ISO 4184

• Resistance: Mineral oils, heat, and abrasion

• Working Temperature: -30ºC to +70ºC
