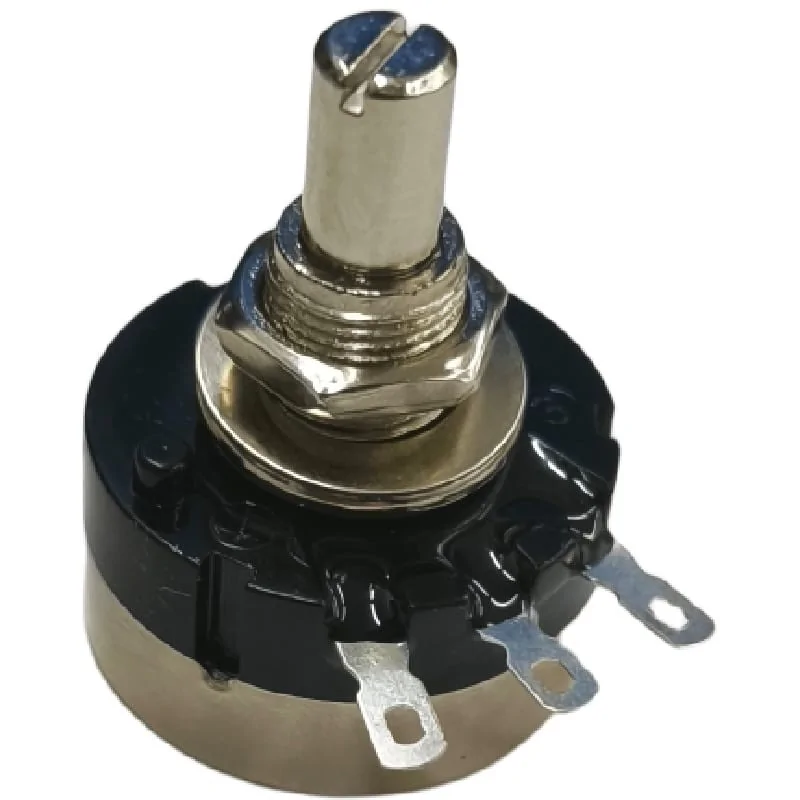

Potentiometer 10k Ohm RV24YN 20S B103

Potentiometer 10k Ohm RV24YN 20S B103

• Nominal resistance: 10 kOhm Code 103

• Resistance curve: Linear Type B

• Rated power: 0.25W at 40 degrees Celsius

• Maximum operating voltage: 315V DC

• Body dimensions: 24 mm diameter

• Shaft dimensions: 6 mm diameter and 20 mm length

• Shaft type: Type S slotted

• Rotation angle: 300 degrees with 5 degrees margin

• Tolerance: 10 percent plus or minus

• Additional information: This single turn carbon potentiometer is designed for industrial control and panel adjustment applications. The S type shaft design facilitates knob coupling or precise manual adjustment. The B type linear curve ensures a resistance change proportional to the shaft rotation.

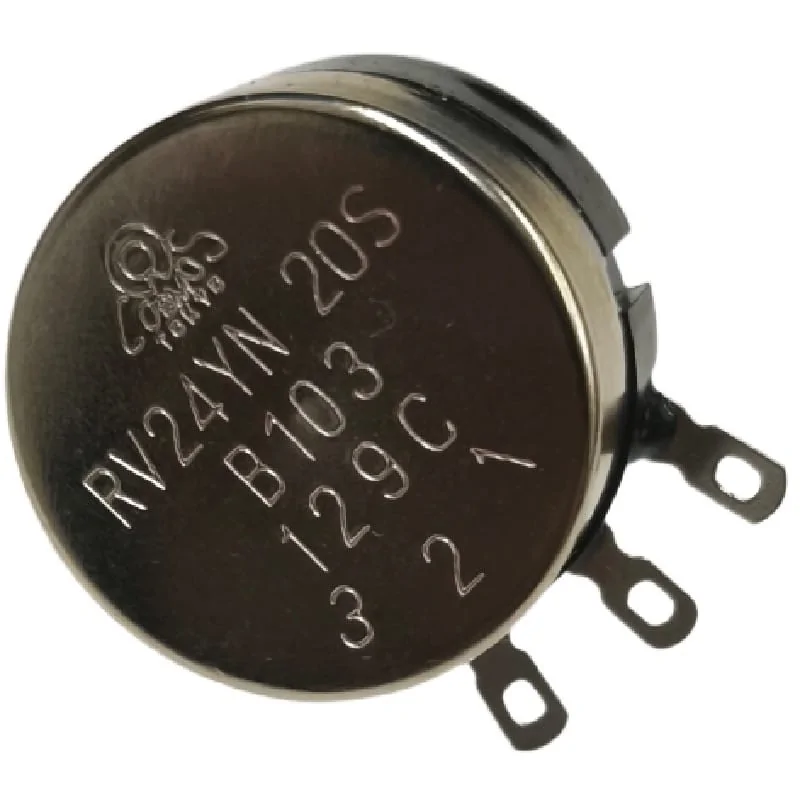

• Model and references: RV24YN 20S, B103
