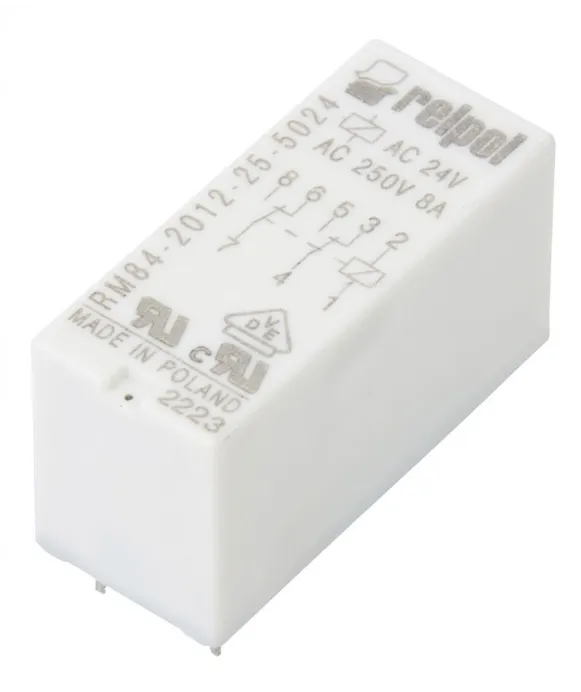

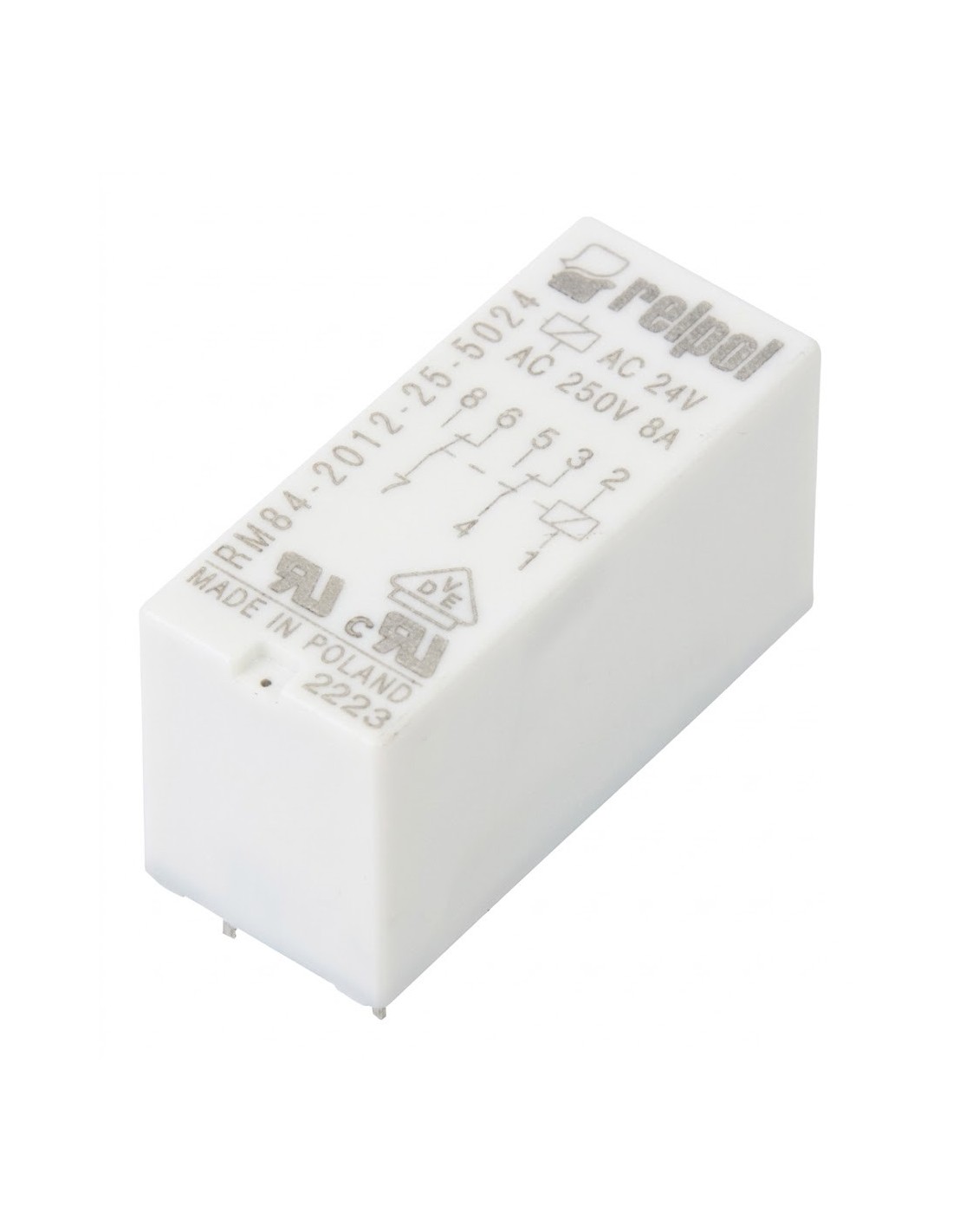

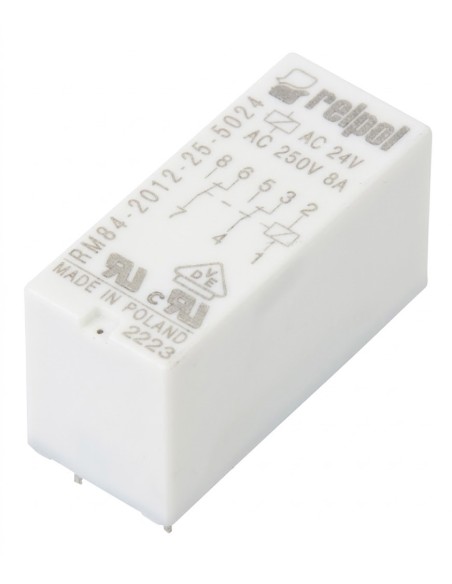

Relpol PCB relay RM84-2012-25-5024
Manufacturer / Model: Relpol (RM84 Series / RM84-2012-25-5024)
Coil voltage: 24 V AC (19.2 V AC - 31.2 V AC)
Contact configuration: 2 changeover contacts (DPDT / 2 CO)
Load capacity: 8 A / 250 V AC | 8 A / 24 V DC (Resistive load)
Contact material: AgNi (Silver-Nickel)
Mounting / Terminals: PCB / Socket (5 mm pin pitch, 8 pins)
Protection rating: IP67 (RTIII - wash tight)
Operating temperature: -40 °C to +85 °C
Dimensions: 29 x 12.7 x 15.7 mm (L x W x H)
Reference / Compatibility: 6231.00001.20
Component type: Miniature electromechanical PCB relay
