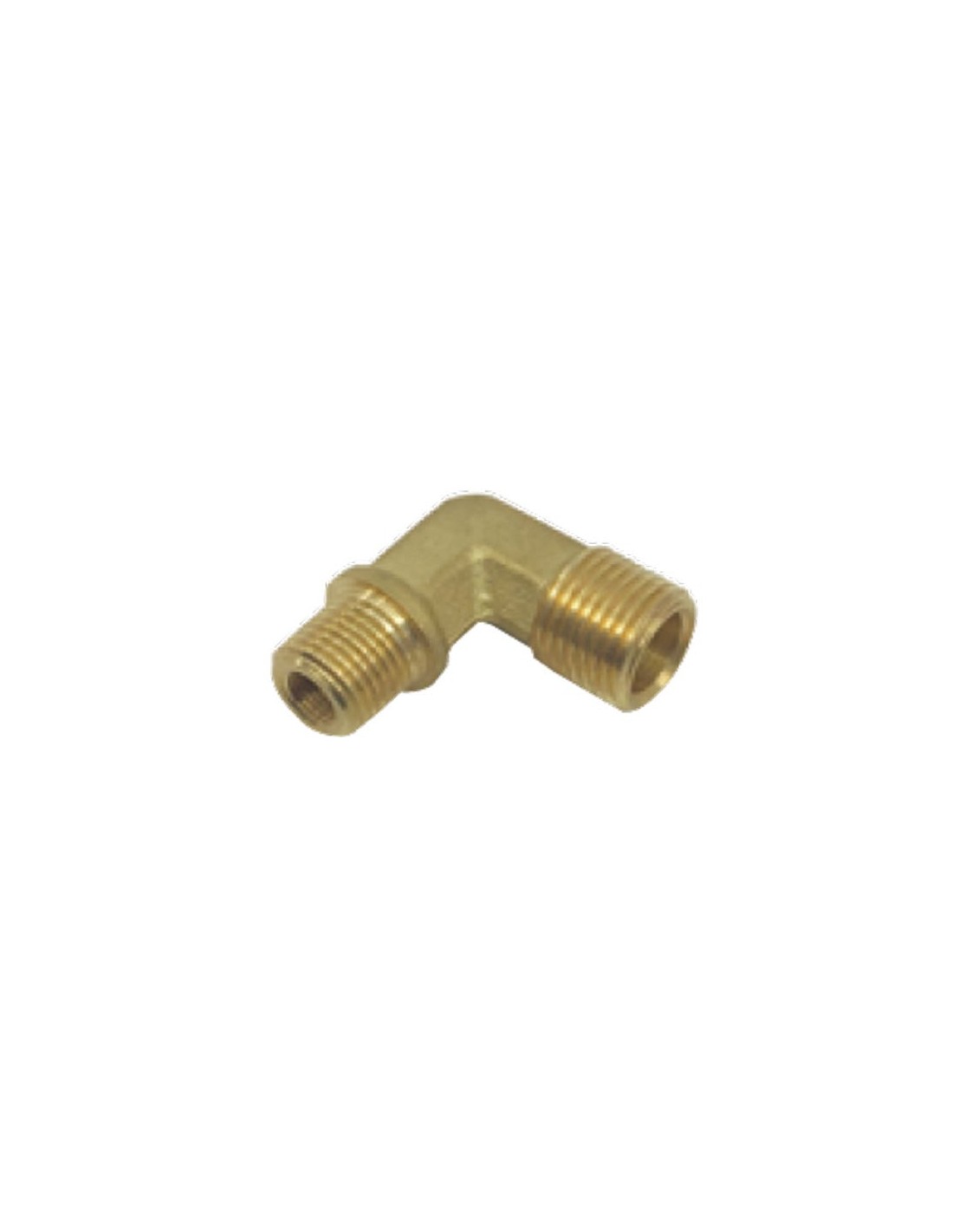

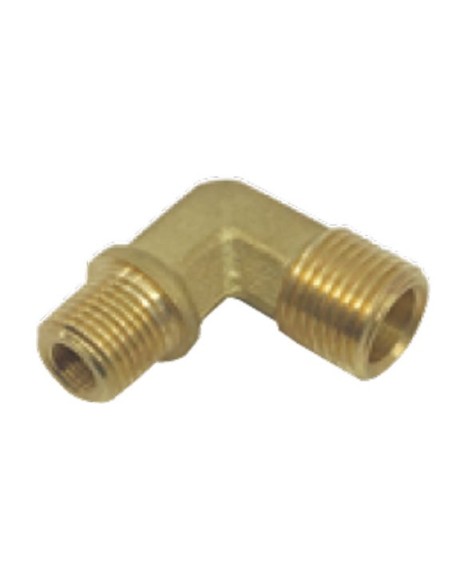

Gas injector holder elbow 90° M16x1.5 - 1/4"G

Gas injector holder elbow 90° M16x1.5 - 1/4"G

• Part code: 301.021.167-P030

• Component type: 90° gas injector holder elbow

• Material: High-resistance brass

• Application: Gas supply coupling and nozzle holder in burners

• Side 1 (Supply inlet): Male thread M16x1.5 (compatible with 3/8" or ø10 mm pipe using union nut and olive/bicone)

• Side 2 (Equipment mounting): Outer male thread 1/4"G

• Side 2 internal housing: Inner female thread M8x0.75 (designed for the gas injector)
