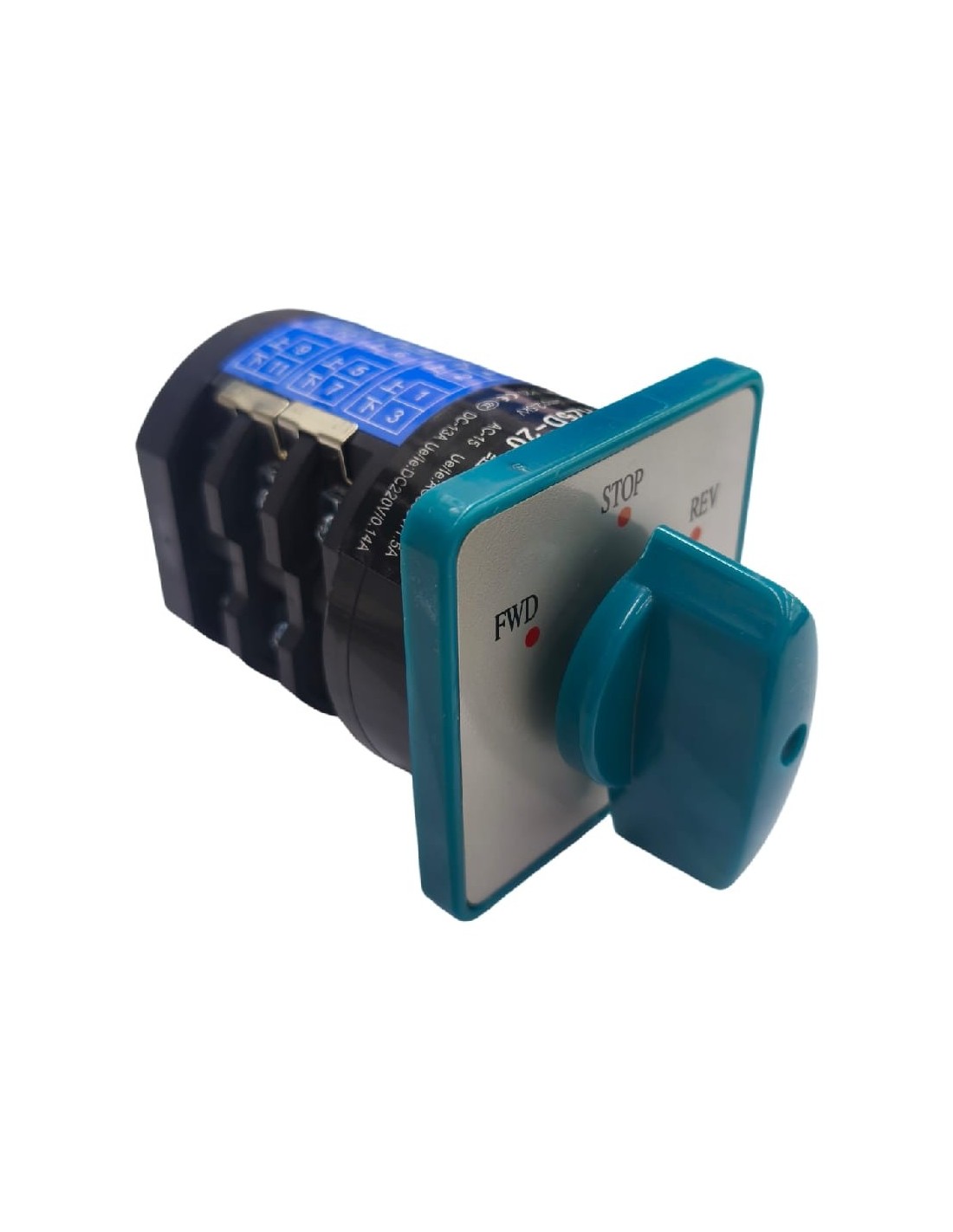

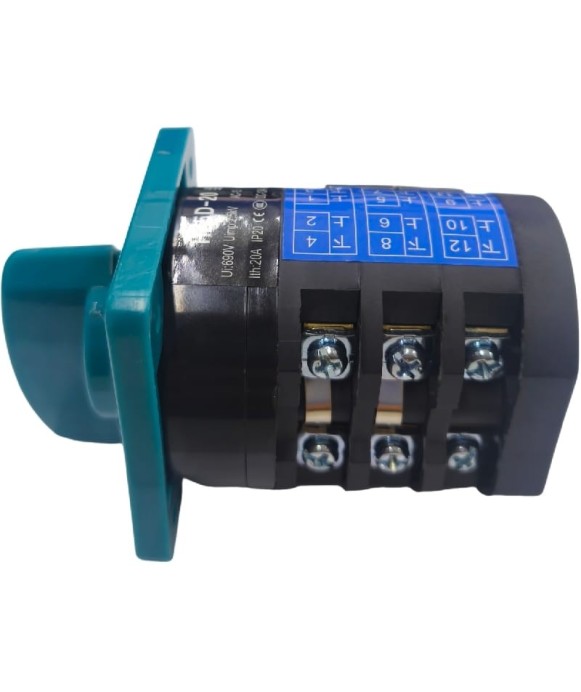

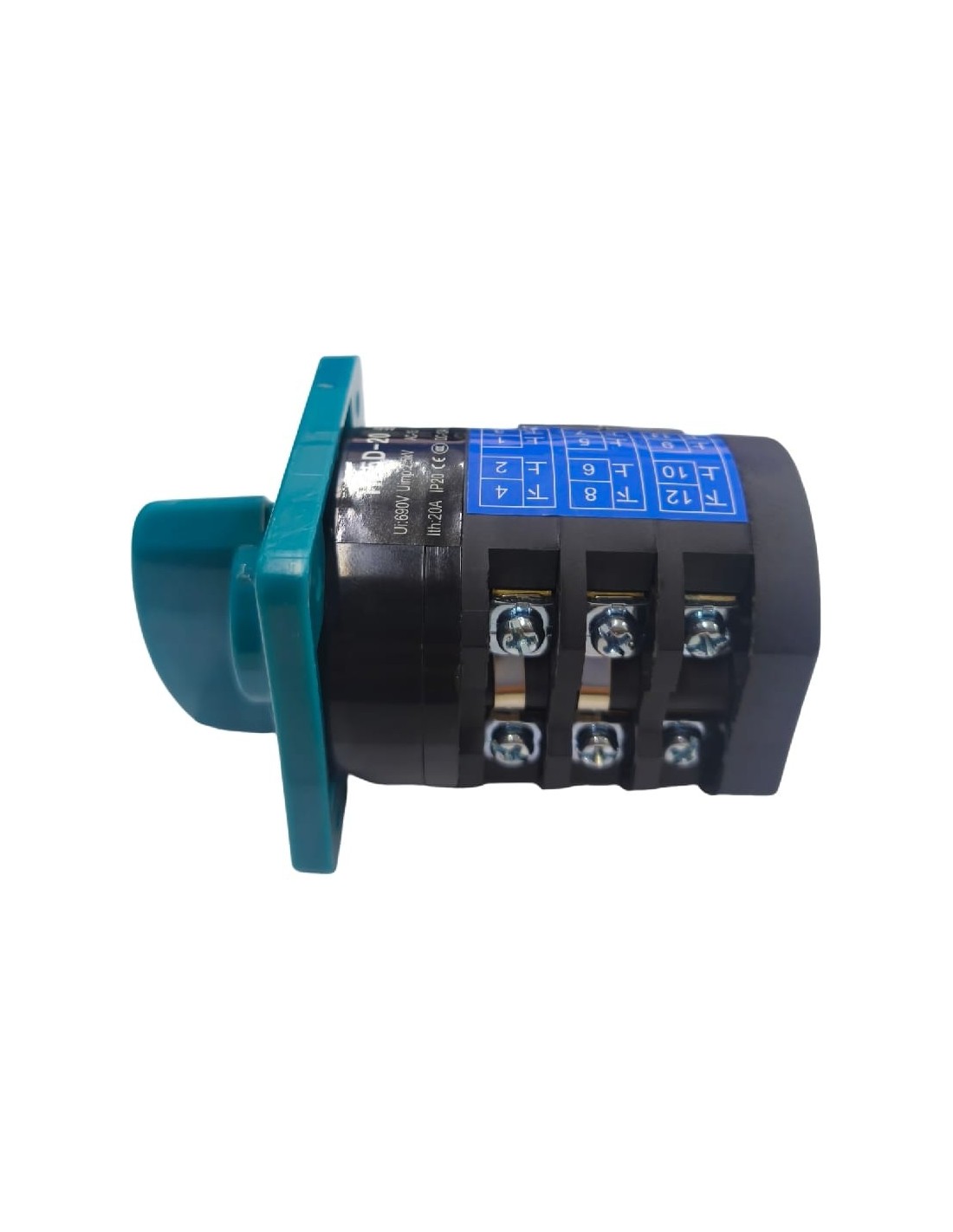

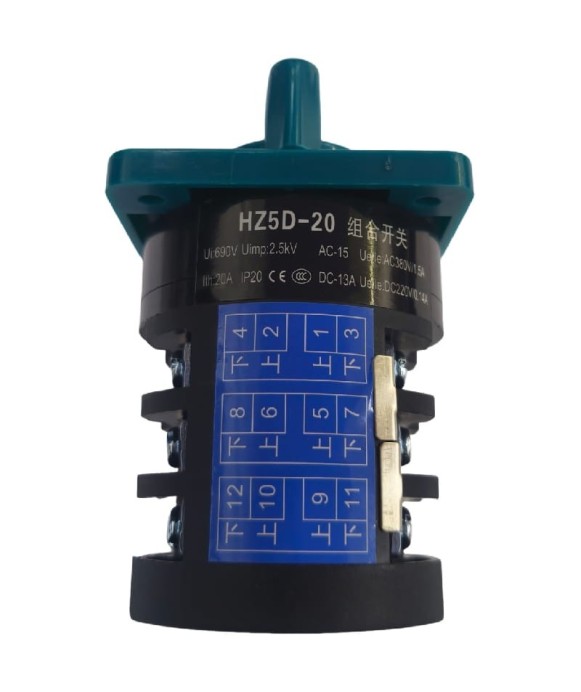

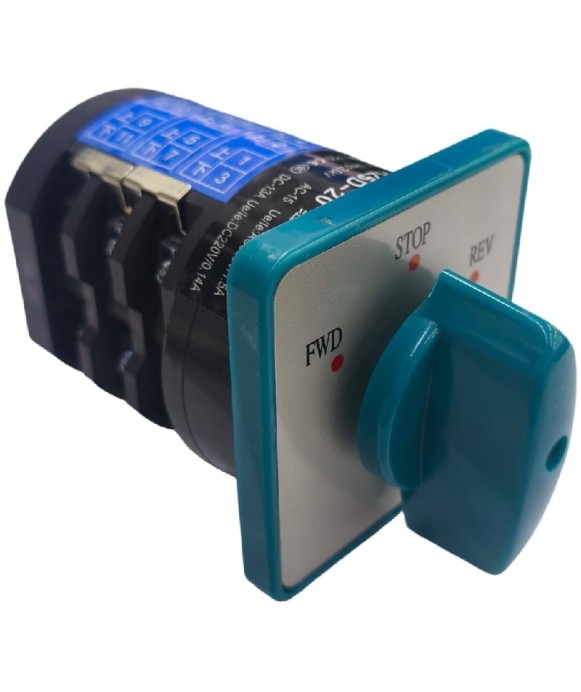

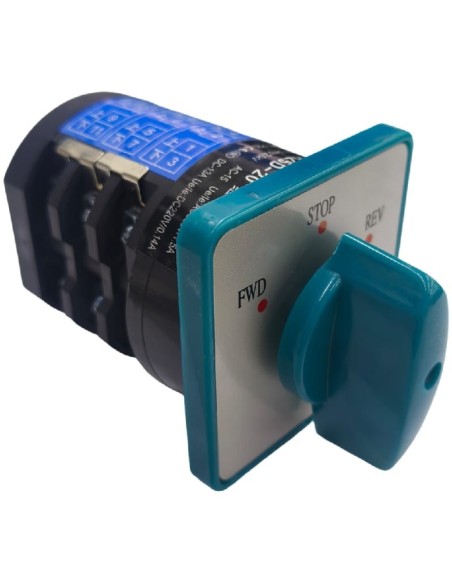

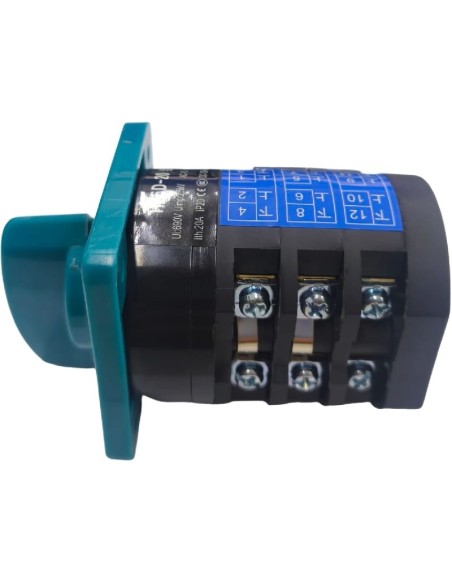

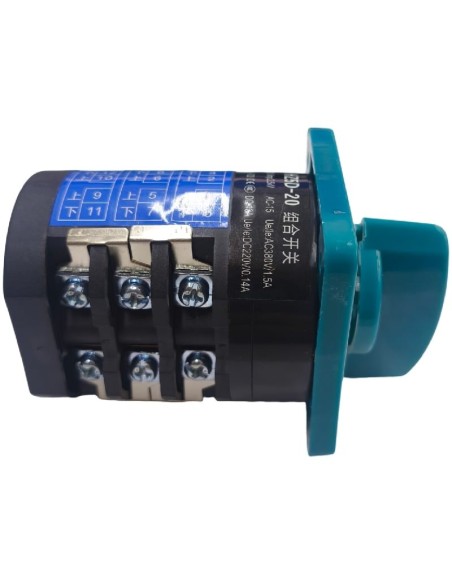

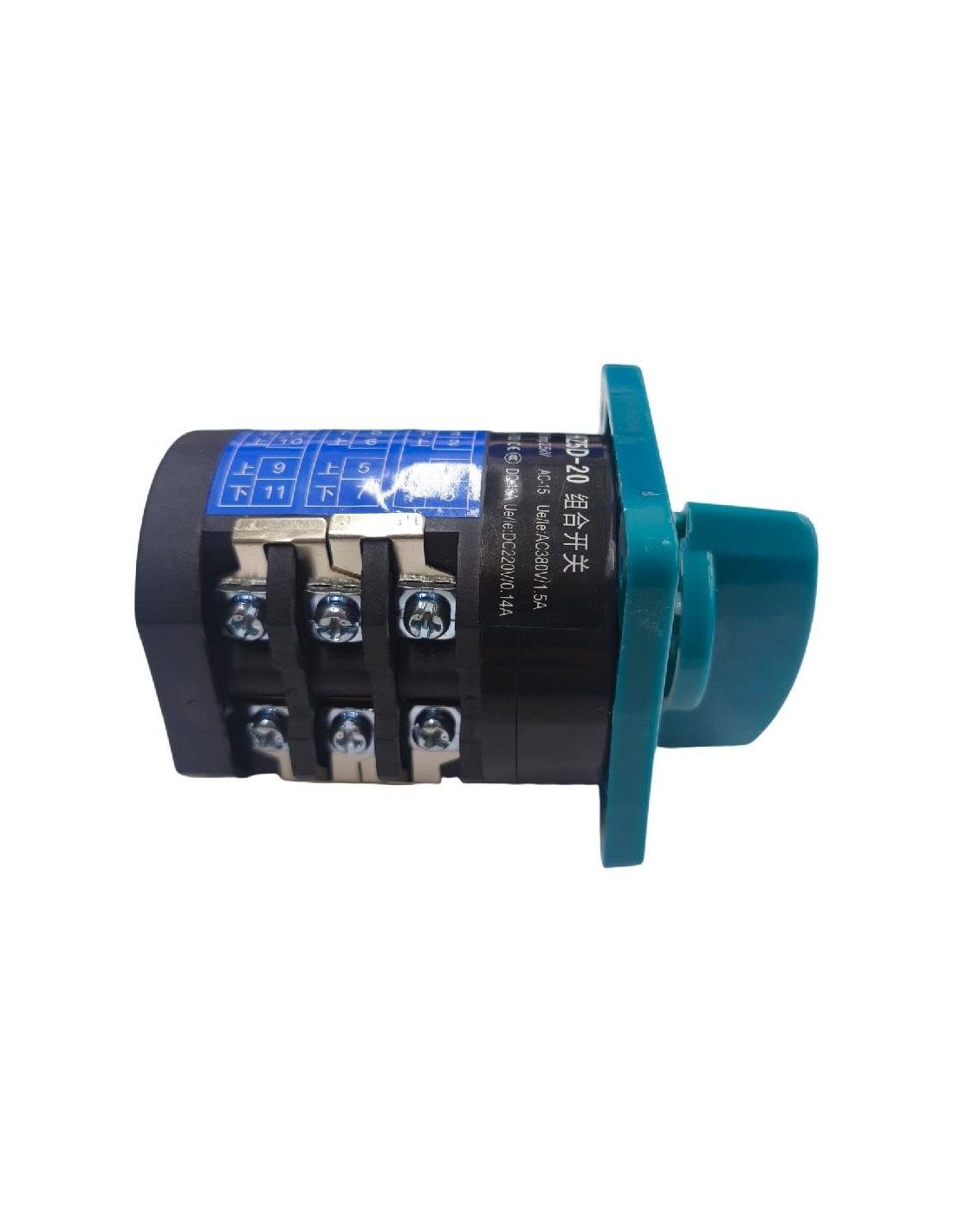

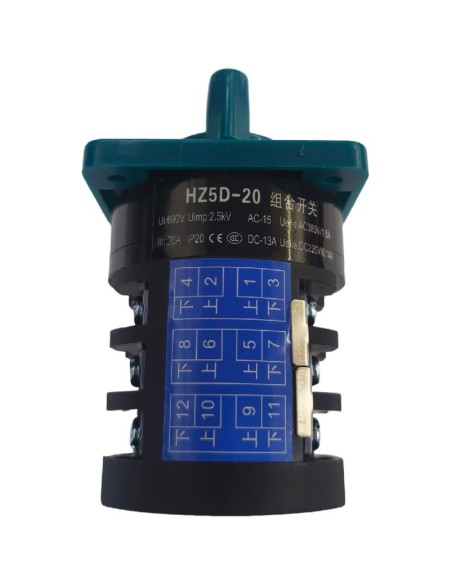

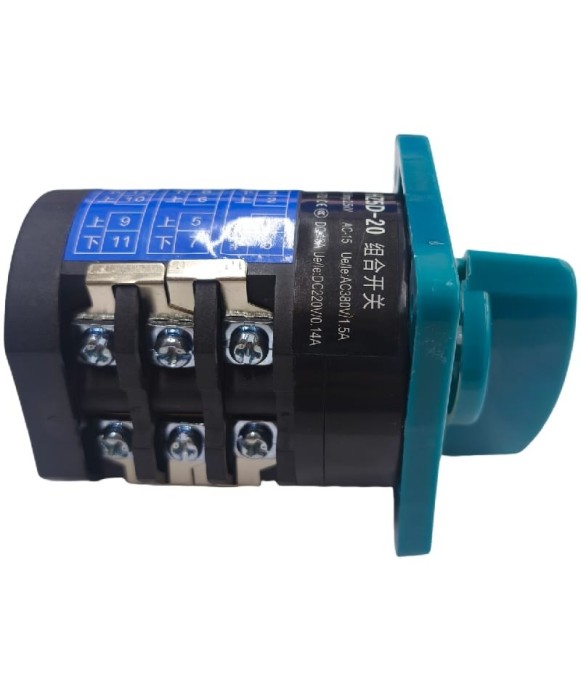

Rotary switch 1-0-2 FWD-STOP-REV HZ5D-20 20A IP20 Cr

Rotary switch 1-0-2 FWD-STOP-REV HZ5D-20 20A IP20 Cr

• Model: HZ5D-20

• Switching function: 3 positions 1-0-2 - FWD - STOP - REV - Forward, Stop, Reverse

• Dimensions: Front 60.5 x 60.5 mm | Depth without knob 72 mm

• Rated insulation voltage Ui: 690 V

• Conventional thermal current Ith: 20 A

• Impulse withstand voltage Uimp: 2.5 kV

• Rated frequency: 50 Hz

• Load capacity AC-15: 380 V AC / 1.5 A

• Load capacity DC-13A: 220 V DC / 0.14 A

• Protection rating: IP20

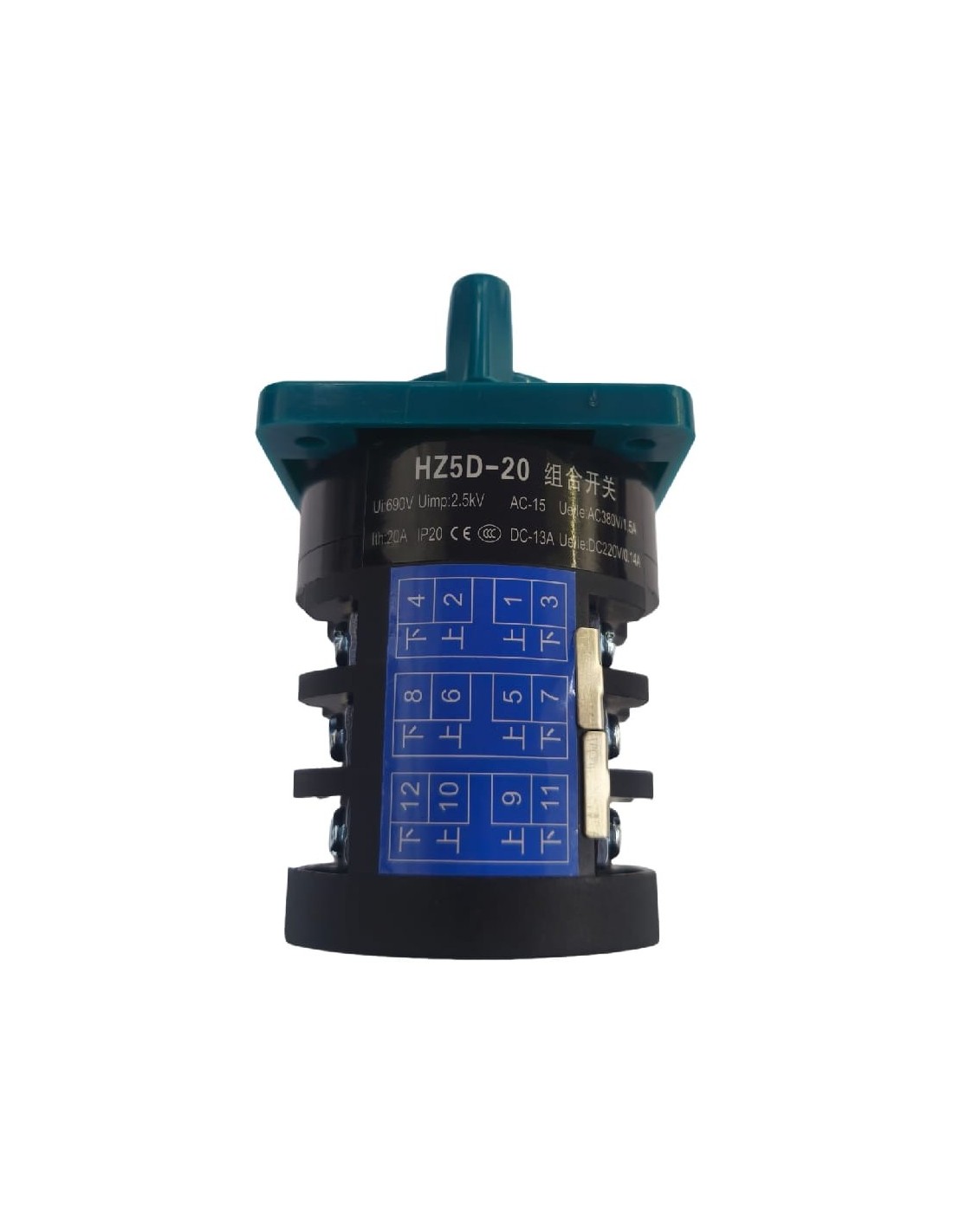

• Electrical connection: 12 terminals numbered 1 to 12 - screw terminals with jumper links

• Certifications: CE, CCC

• Application and models: Meat mincer MG32 and commercial catering machinery with reverse rotation

• Component type: Rotary cam switch - reversing combination switch
