Pastry display case specially designed for pastry straight glass, with two shelves and LED cabinet must for light pastels.
Series 9 corresponds to the CORECO brand.
Available in various sizes and decoration (wood imitation lacquered or decoration).
Refrigerated display case version, to maintain the temperature of the cakes, desserts, cakes, pies... that require certain cold conditions for preservation.
Exterior features
- Exterior and interior prepainted steel sheet.
- Plano exposure and evaporator protection sheet epoxy finish.
- 40 mm sides injected polystyrene.
- Laminate worktop, melamine finish.
- Anodized aluminum profiles.
- tempered glass front, swing.
- Standard lighting counter top.
- Injected polyurethane insulation, density 40kg / m3, zero ODP and GWP effects.
- cooled doors, hollow Reserve 440x270mm.
- Evaporator static.
- electronic temperature control.
- Temperature indicator.
- Automatic defrost with collection tank.
- climatic Class 3 (25 ° C 60% rh) M1 regime.
- M1 product temperature: -1 / + 5 ° C. UNE-EN ISO 23953-2: 2006.
Decoration Options
- Lacquered colors: white (RAL 9003), Black (RAL 9005), Rosa (RAL 4010), Red (RAL 3020), Green (NCS-1060-G50Y), Light Green (NCS-0530-G40Y), Orange (NCS 0570-Y40R), Purple (NCS-450-R50B), Yellow (NCS-0540-Y10R), Blue (NCS-2065-R90B).
- Wood options: Walnut, Wenge or Beech
- Optional: intermediate glass shelf (3rd shelf)
Features by model

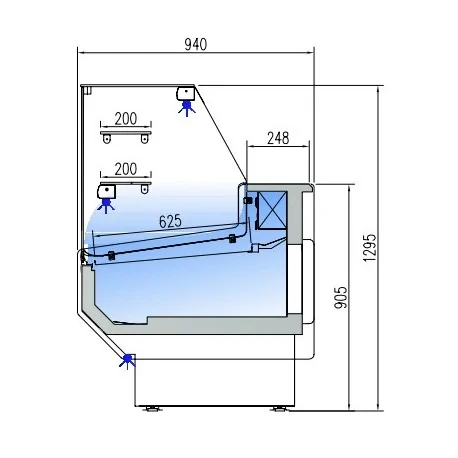

CVED-9-10 | CVED-9-15 | CVED-9-20 | CVED-9-25 | |
---|---|---|---|---|
Depth (mm) | 940 | 940 | 940 | 940 |
Height (mm) | 1295 | 1295 | 1295 | 1295 |
Overall length (mm) (Including sides) |
1055 | 1525 | 2025 | 2525 |
Side thickness (2 units, mm) | 40+40 | 40+40 | 40+40 | 40+40 |
Cooling capacity (W) | 410 | 675 | 880 | 1050 |
Voltage-frequency (V/Hz) | 220/50 | 220/50 | 220/50 | 220/50 |
Chamber volume (m3) | 0,33 | 0,49 | 0,67 | 0,84 |
Exhibition area (m2) | 0,50 | 0,77 | 1,05 | 1,32 |
No. Doors | 1 | 2 | 3 | 4 |
No. Shelves | 2 | 2 | 2 | 2 |
Condensation | Ventilated | Ventilated | Ventilated | Ventilated |
Evaporation | Static | Static | Static | Static |
Defrost | Automatic | Automatic | Automatic | Automatic |
Control | Digital | Digital | Digital | Digital |
Refrigerant | R404A | R404A | R404A | R404A |
Equipment | Light shelves and decoration | Light shelves and decoration | Light shelves and decoration | Light shelves and decoration |
Consumption (kWh/24h) | 10,9 | 16,4 | 17,8 | 17,8 |
Climate class | 3 (+25ºC 60%HR) | 3 (+25ºC 60%HR) | 3 (+25ºC 60%HR) | 3 (+25ºC 60%HR) |
