Refrigerated display case expository charcuterie, sausages and milk. Design straight glass, without shelves and LED on top.
It has reserves camera bottom, which is accessed from a door on her side of the seller. The number of doors varies depending on the length of the case.
Series 8 corresponds to the CORECO brand.
Available in various sizes and decoration (wood imitation lacquered or decoration).
Refrigerated display case version, to maintain the temperature of products that require certain cold conditions for preservation.
Exterior features
- Exterior and interior prepainted steel sheet.
- Plano exposure and evaporator protection sheet epoxy finish.
- 40 mm sides injected polystyrene.
- Laminate worktop, melamine finish.
- Anodized aluminum profiles.
- tempered glass front, swing.
- Standard lighting counter top.
- Injected polyurethane insulation, density 40kg / m3, zero ODP and GWP effects.
- cooled doors, hollow Reserve 440x270mm.
- Evaporator static.
- electronic temperature control.
- Temperature indicator.
- Automatic defrost with collection tank.
- climatic Class 3 (25 ° C 60% rh) M1 regime.
- M1 product temperature: -1 / + 5 ° C. UNE-EN ISO 23953-2: 2006.
Decoration Options
- Lacquered colors: white (RAL 9003), Black (RAL 9005), Rosa (RAL 4010), Red (RAL 3020), Green (NCS-1060-G50Y), Light Green (NCS-0530-G40Y), Orange (NCS 0570-Y40R), Purple (NCS-450-R50B), Yellow (NCS-0540-Y10R), Blue (NCS-2065-R90B).
- Wood options: Walnut, Wenge or Beech
- Optional: intermediate glass shelf (3rd shelf)
Features by model

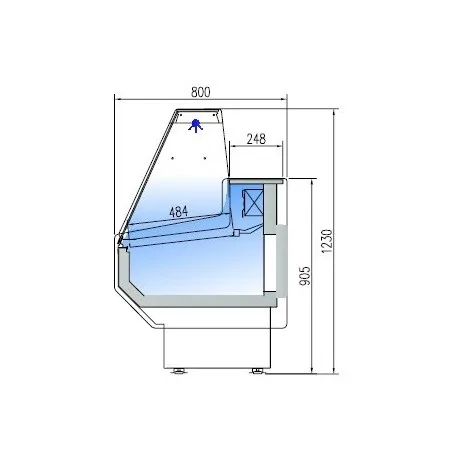

| CVED-8-15-R | CVED-8-20-R | CVED-8-25-R | |
|---|---|---|---|
| Depth (mm) | 800 | 800 | 800 |
| Height (mm) | 1230 | 1230 | 1230 |
| Overall length (mm) (Including sides) |
1525 | 2025 | 2525 |
| Side thickness (2 units, mm) | 40+40 | 40+40 | 40+40 |
| Cooling capacity (W) | 550 | 675 | 880 |
| Voltage-frequency (V/Hz) | 220/50 | 220/50 | 220/50 |
| Chamber volume (m3) | 0,43 | 0,57 | 0,72 |
| Exhibition area (m2) | 0,77 | 1,05 | 1,32 |
| No. Doors | 2 | 3 | 4 |
| No. Shelves | 0 | 0 | 0 |
| Condensation | Ventilated | Ventilated | Ventilated |
| Evaporation | Static | Static | Static |
| Defrost | Automatic | Automatic | Automatic |
| Control | Digital | Digital | Digital |
| Refrigerant | R404A | R404A | R404A |
| Equipment | Superior light and Decoration | Superior light and Decoration | Superior light and Decoration |
| Consumption (kWh/24h) | 15,0 | 17,8 | 17,8 |
| Climate class | 3 (+25ºC 60%HR) | 3 (+25ºC 60%HR) | 3 (+25ºC 60%HR) |
