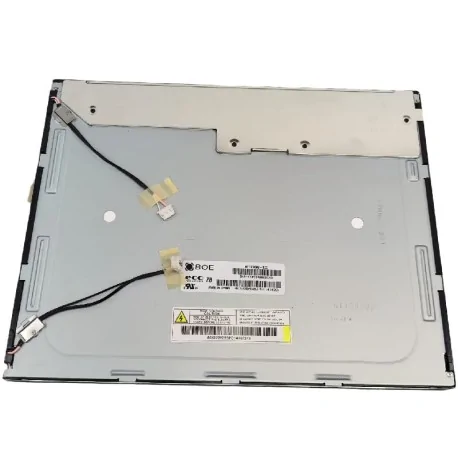

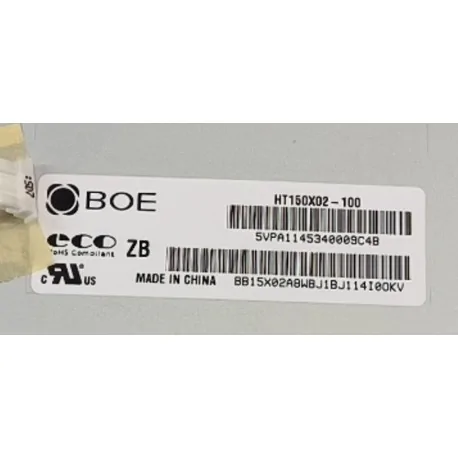

Screen HT150X02-100 15.0" a-Si TFT-LCD Panel for BOE

Screen HT150X02-100 15.0" a-Si TFT-LCD Panel for BOE
BrandBOE
Model HT150X02-100
Panel Type-Yes TFT-LCDPanel
Size 15.0"
Resolution 1024(RGB)×768 (XGA)
Display ModeTN, Normally White, Transmissive
Antiglare surface (Haze 25%), Hard coating (3H)
Brightness 250 cd/m2 (Typ.)
Contrast Ratio500 : 1 (Typ.) (Transmissive)
Screen Colors 16.2M (6-bit + FRC)
Response Time 2/6 (Typ.)(Tr/Td) (ms)
Viewing Angle 75/75/70/60 (Typ.)(CR?10) (L/R/U/D)
Frequency 60Hz
CCFL Lamp Type
LVDS Signal Interface (1 ch, 8-bit)
Input Voltage 3.3V (Typ.)
Other Name HTL50X02-L00
HT15OXO2-1OO
