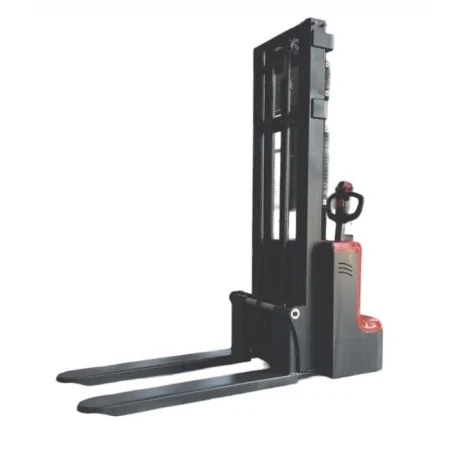

ES-15K Electric Stacker

• High-performance lifting pump for high working efficiency.
• The steering wheel allows a turning radius of 1431mm.
• Powerful, energy-efficient permanent magnet motor.
• LED for reading the energy level.
• Easy charging from any normal 230 V socket.
• All controls are located on the steering wheel.
• The lift control can be reached without losing sight of the load.
• Electromagnetic brakes
• The long-lasting battery is maintenance-free.
• Brand Eutron
• Model ES-15K electric type
• Maximum rated load 1500kg
• Load centre C 500mm
• Wheelbase Y 1277mm
• Lifting height with 2-stage mast 3000mm
• Weight(including battery) 550kg
• Battery (Maintenance free) 48V/52Ah
• Fork outer width 680mm
• Fork length 1100mm
• Charging voltage 220V
• EU standard plug

PU WHEELS

DRIVE WHEEL (DxW) 0250x80mm

ASSISTANT WHEEL (DxW) 0125x50mm

BALANCING WHEEL (DxW) 080x70mm
