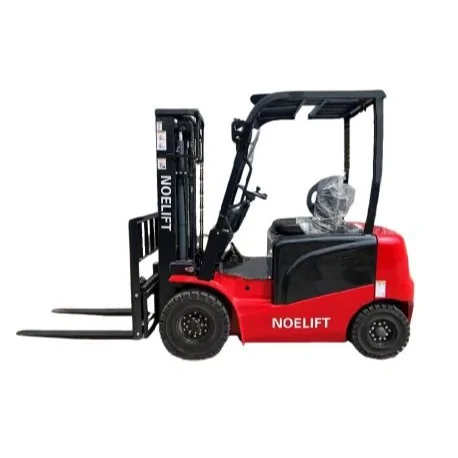

Forklift CPD20 2Tm Lift 4500mm

Forklift truck:

• Model CPD20
• CE Certification
• Configuration number A5XH4-S
• Nominal capacity 2000Kg
• Distance between load centers 500mm
• Power mode Battery
• Driving mode Sitting
• Front overhang 414mm
• Wheelbase 1475mm

Weights:

• Total weight (with/without battery) kg 3300/2595
• Axle load (loaded, front/rear) kg 4776/524
• Axle load (unloaded, front/rear) kg 1544/1756

Tires:

• Type of wheels: Pneumatic
• Front tire size 6.50-10-12PR
• Rear tire size 16x6-8-10PR
• Wheels, number front/rear) 2\2
• Tread, front 934mm
• Rear tread 920mm

Dimensions:

• Mast tilt angle (forward/backward) 6\8º
• Height (mast lowered) 1995mm
• Free lifting height 155mm
• Lifting height (standard) 4500mm
• Max height extended (with backrest) 4014mm
• Height of overhead guard mm 2130
• Seat height relative to SIP (to ground) 1125mm
• Trailer hitch height 250mm
• Total length (with fork) 3125mm
• Total length (without fork) 2205mm
• Total width 1120mm
• Fork size 40*100*920mm
• Minimum external turning radius 1920mm

Performance data:

• Travel speed (with loading/unloading) km/h 14.5\15
• Lifting speed (flating/unloading) m/s 0.280/0.440
• Descent speed (loaded/unloaded) m/s 0.40/0.40
• Max drawbar force 1(1 to lair/no load) N 11000/10700
• Max grade bi 1 ity (1 a den/no load) % 15/25
• Acceleration time (lOm) (with load/unload) s 5.6/5.2

Battery:

• Battery voltage/ac pa city V/Ah 48/420
• Battery weight kg 705
• Battery according to DIN DIN 43536A

Engine:

• Driving motor power (S2-60min) KW 8
• Lifting motor power (S3-15%) KW 10.6
• Driving motor control 1 ing mode MOSFET/AC
• MOSFET/AC lift motor control mode

Additional information:

• Service brake/Hydraulic parking brake
• Operating pressure for accessories Mpa 16
