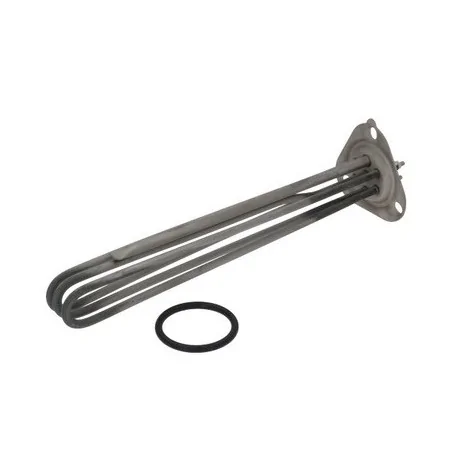

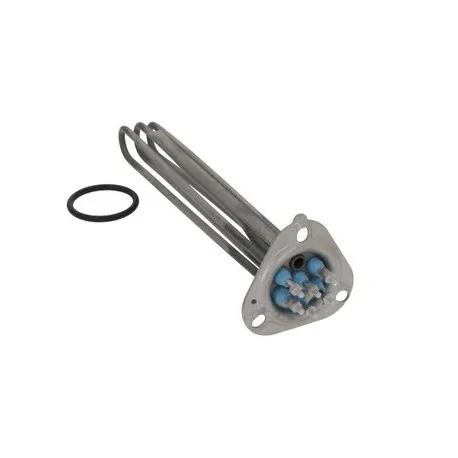

heating element 4500W 230V mounting ø 47.5mm heating circuits 419032

heating element 4500W 230V mounting ø 47.5mm heating circuits 419032
power4500 W
voltage230V

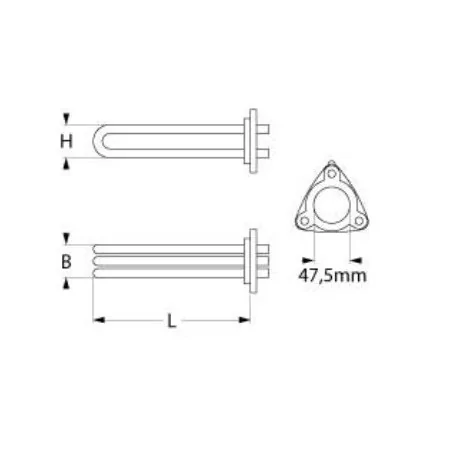

length285mm
type of mounting3-hole flange
spliceM4
tube diameter 6.3mm
number of spirals3
hole distance 63mm
height40mm
mounting diameter47.5mm
width32mm
hole diameter 8mm
probe-holder bushing diameter 7.5 mm
number of probe holders1
probe holder sleeve length233 mm
splice length25mm
thermostat bushing position offset, tight
type of applicationimmersion resistance

gev 419032
irca 1GEL7F640003
marels 1GEL7F640003, 465.010.13
modular 1GEL7F640003, 465.010.13
multi 150023
