Heating element 2700W 230/400V FABAR Q40S 415161 1.001.028 113436

RCH0000029

en_US.UTF-8

On request from the factory
€120.00
Tax excluded
Suitable for the following brands
Fabar

Description

CL50 FABAR Resistance 2700W triple dishwasher. Exploded 25.

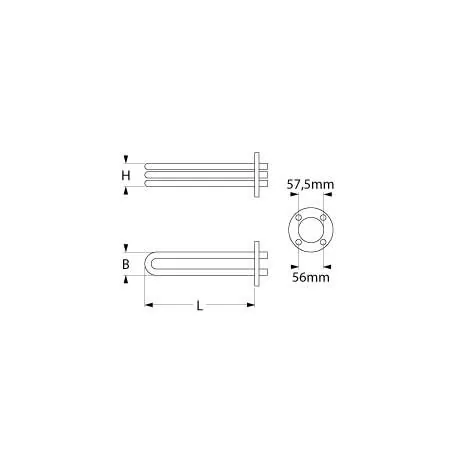

Heating element 2700W 230/400V heating circuits 3 mounting ø 57,5mm L 235mm W 47mm H 44mm

  • Power     2700 W
  • Voltage     230/400 V
  • Heating circuits     3
  • Mounting diameter     57,5 mm
  • Length     235 mm
  • Width     47 mm
  • Height     44 mm
  • Number of thermostat sleeves     1
  • Diameter thermostat sleeves     10 mm
  • Length thermostat sleeves     235 mm
  • Position thermostat sleeves     centre not clinging
  • Tube diameter     8,5 mm
  • Hole distance     56 mm
  • Hole diameter     9 mm
  • Connection     M5
  • Mounting     4 hole flange
  • Application     immersion heater
  • Flange diameter     98 mm
Suitable for the following brands
Fabar
