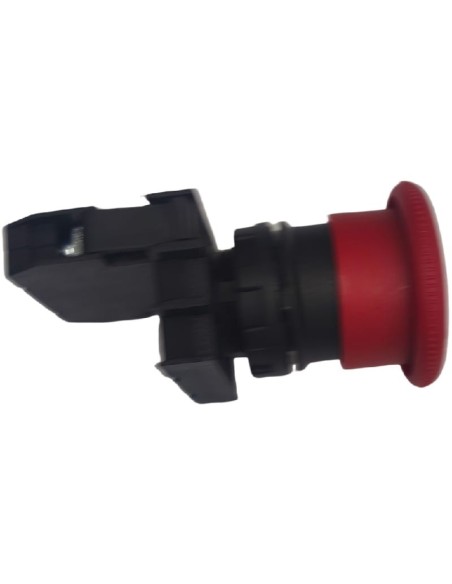

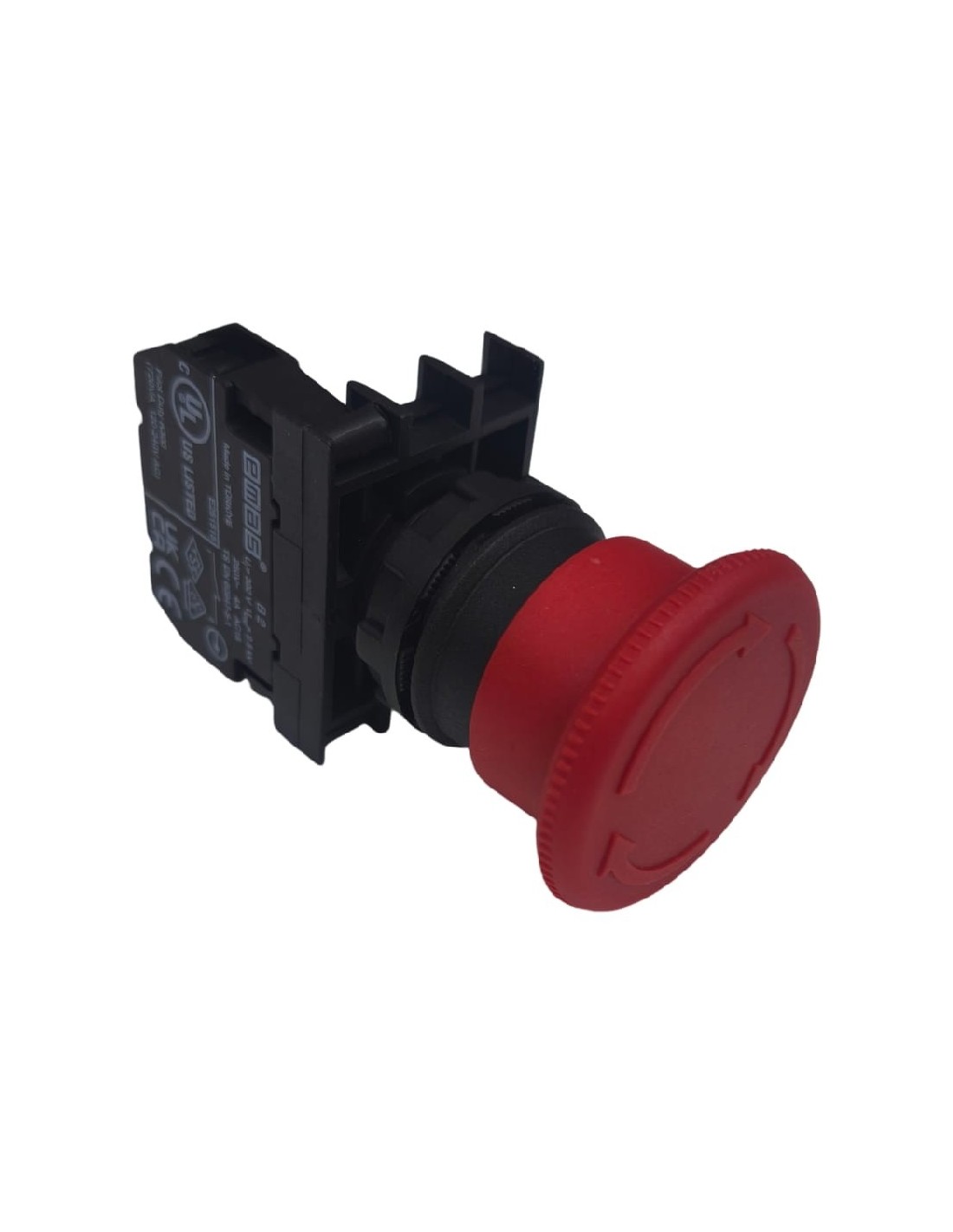

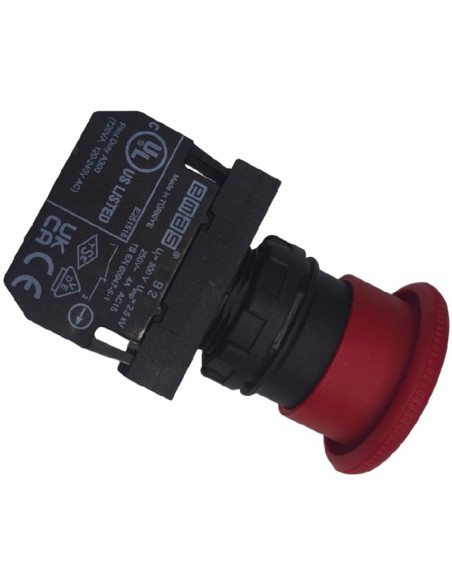

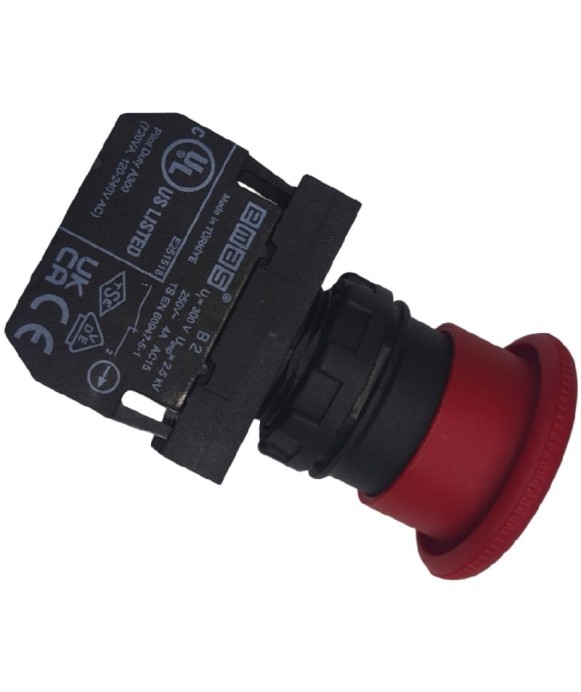

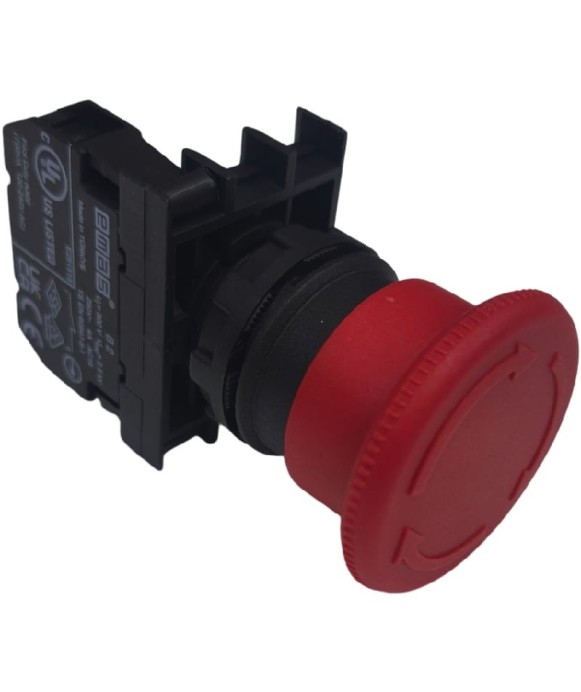

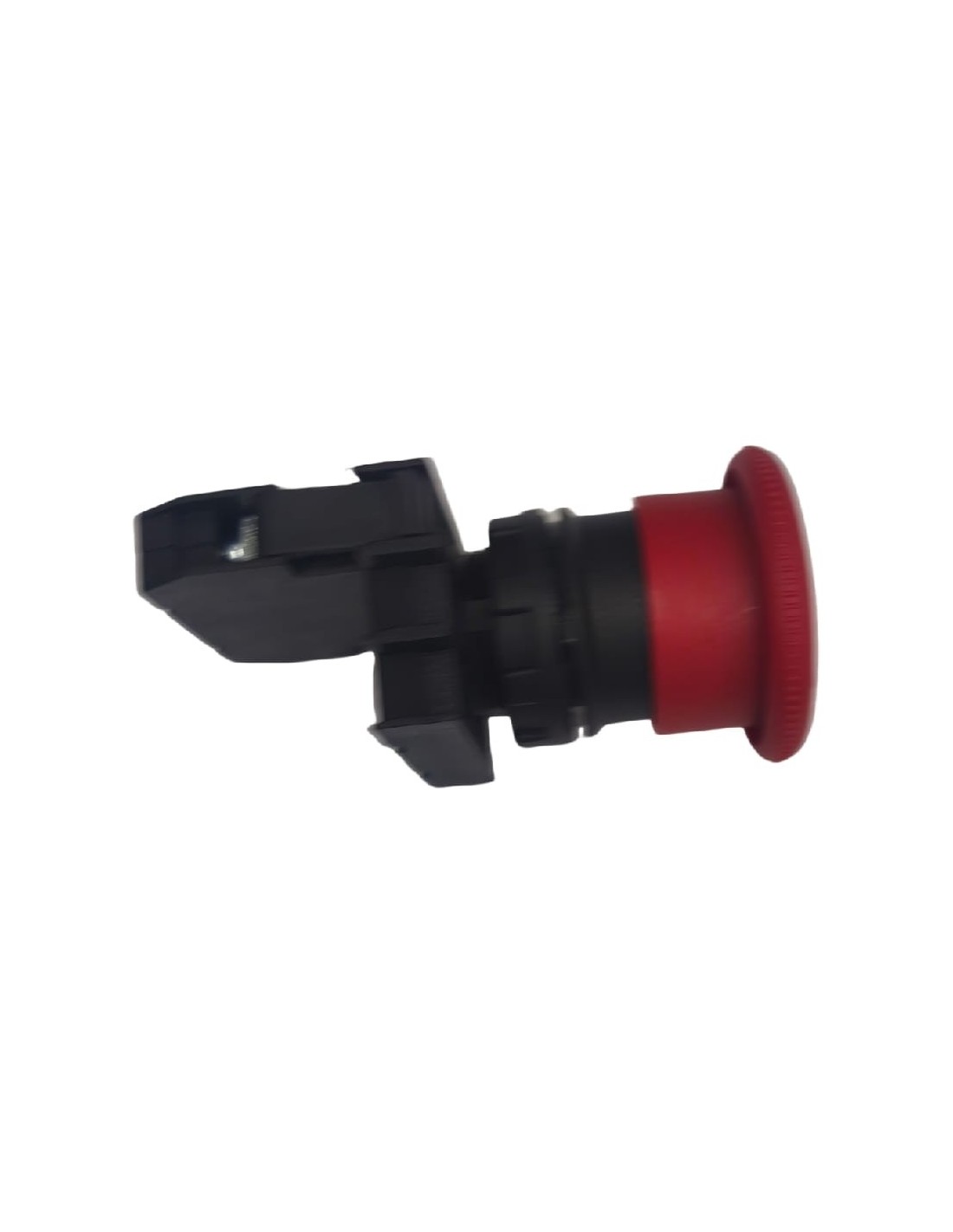

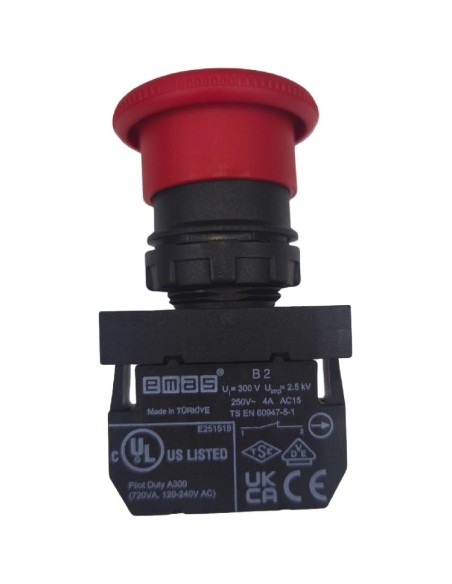

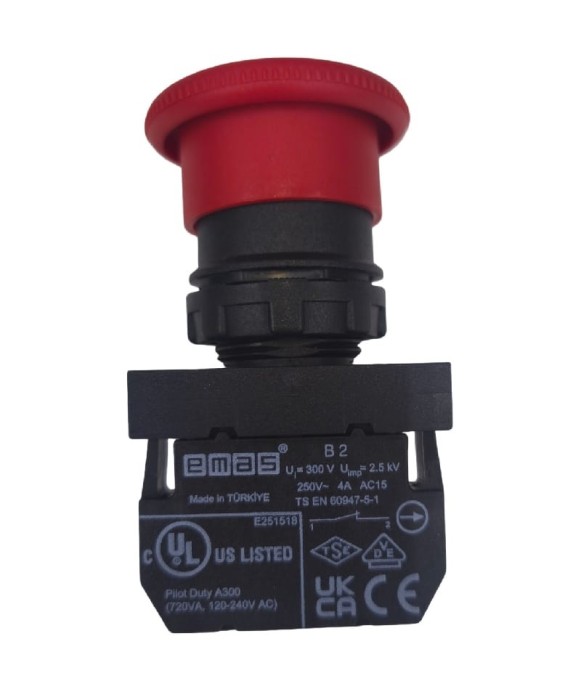

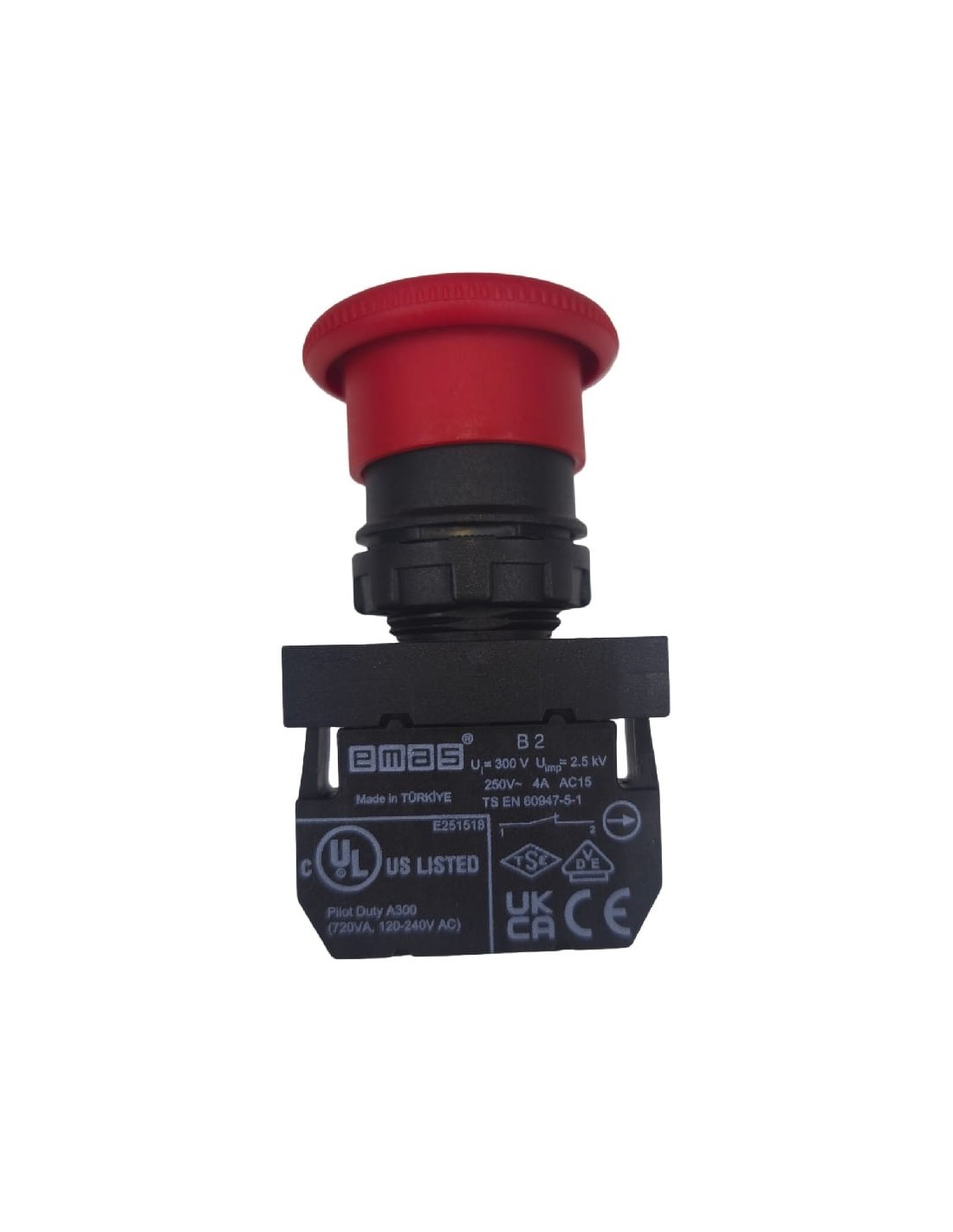

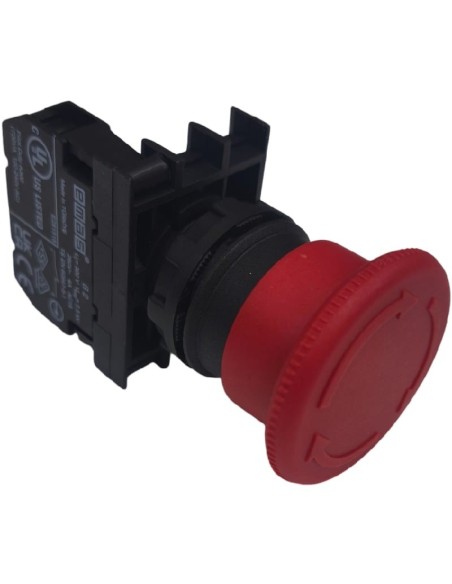

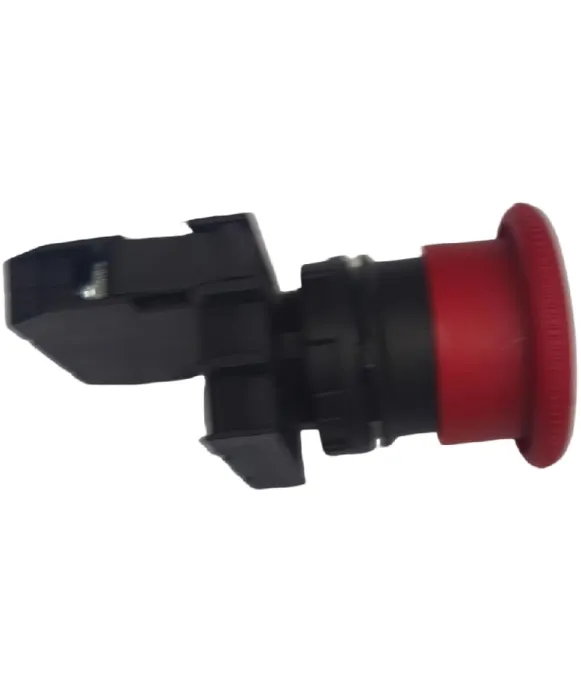

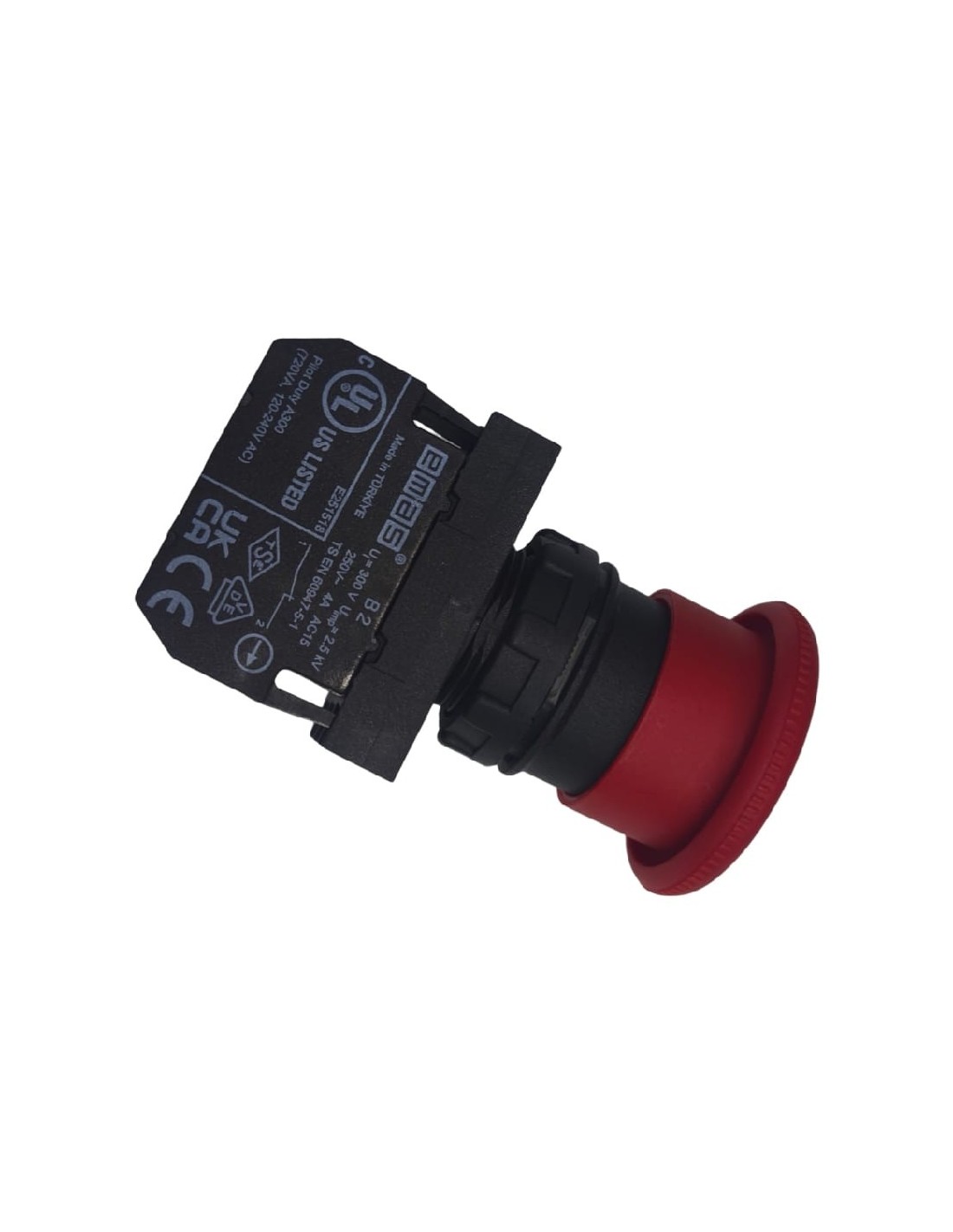

Emergency stop push button EMAS B2 Ø 22 mm

Emergency stop push button EMAS B2 Ø 22 mm

• Model / Part code: EMAS B2 | ERK.M.ELK-SLT-BTL-007

• Mounting diameter: Ø 22 mm (standard panel cutout)

• Actuation type: Mushroom head latching push button with twist-to-reset / turn-release mechanism

• Contact configuration: 1 Normally Closed contact (1 NC / terminals 1 and 2) with positive opening safety operation and screw clamp connections

• Electrical ratings:

  • Conventional thermal current ($I_{th}$): 10 A

  • Rated insulation voltage ($U_i$): 300 V | Rated impulse withstand voltage ($U_{imp}$): 2.5 kV

  • Nominal rating AC-15: 4 A at 250 V AC

  • Nominal rating DC-13: 0.27 A at 220 V DC

• Colors and finish: Red mushroom operator, black base and contact block

• Application: Control panels, industrial machinery, and commercial catering equipment

• Component type: Emergency stop push button - latching mushroom head safety switch
